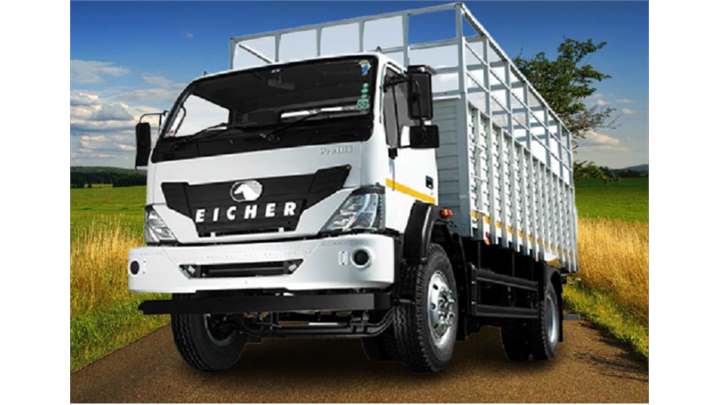

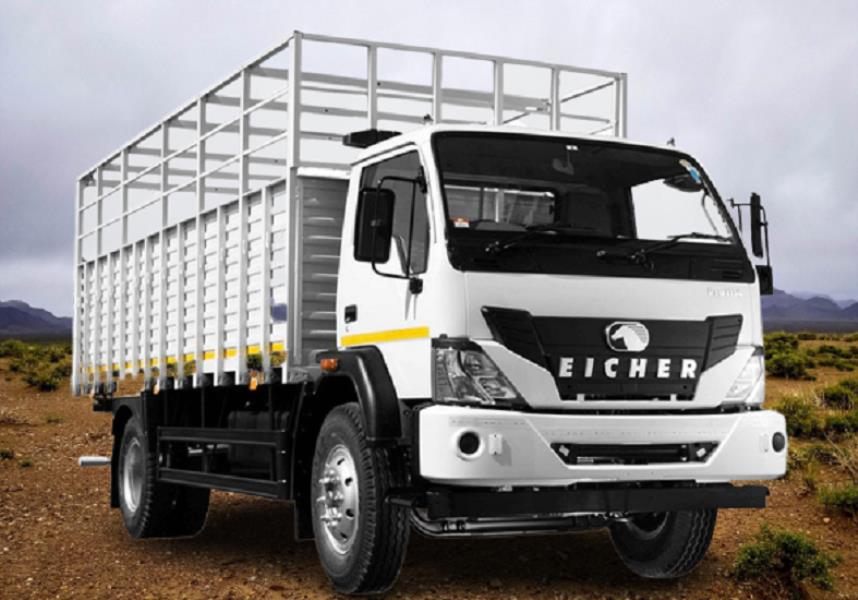

Overview of Eicher Pro 1114XP

GVW 16020 Kg
Engine
  • E494 CRS 4 cyl 4 valve
  • EGR Technology
  • With Volvo group EMS 3.0
Power (Max.) 135 HP@2600 rpm
Torque (Max.) 490 Nm @ 1400-1800 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span
  • 17.2 ft
  • 19 ft
  • 20 ft
  • 22 ft
Warranty
  • 4 years unlimited km on engine and gearbox
  • 2 years unlimited km on vehicle
Service Interval 50000 Km (Oil change)
Additional
  • MBooster+ Technology for Multi Drive Mode
  • Fuel coaching

Engine & Performance of Eicher Pro 1114XP

Engine
  • E494 CRS 4 cyl 4 valve
  • EGR Technology
  • With Volvo group EMS 3.0
Fuel Injection System Common rail
Engine Displacement 3760 cc
Engine Cylinders 4
Power (Max.) 135 HP@2600 rpm
Torque (Max.) 490 Nm @ 1400-1800 rpm
Clutch
  • 330 mm dia
  • With clutch booster
Transmission
  • 7 speed manual (7F+1R)
  • Hybrid gear shift lever
  • With Double Overdrive
Gearbox Eicher 5MS7
Gradeability 24%
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 395 Litres
Electricals / Battery 12V, 100 Ah

Design & Configuration of Eicher Pro 1114XP

GVW 16020 Kg
Kerb Weight 5260 Kg (4255 wb)
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span
  • 17.2 ft
  • 19 ft
  • 20 ft
  • 22 ft
Cabin Type Day cab
Cabin Tilt mechanism Manually tiltable
Chassis Frame Ladder type with cross members
Axle Configuration 4x2
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension Semi elliptical leaf springs
Anti-Roll Bar No
Tyres
  • 9R20-16 PR
  • Radial tyres
  • 6+1 tyres
Wheelbase
  • 3755 mm
  • 4255 mm
  • 5050 mm
Turning Circle Diameter 16.7 m (4255 wb)
Ground Clearance 240 mm
Overall Length 7752 mm (4255 wb)
Overall Width 2420 mm
Overall Height 3206 mm

Features & Comfort in Eicher Pro 1114XP

Cabin Suspension No
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 4 way adjustable
Air Conditioner (A/C) No
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking No
Power Windows No
Music System No
Mobile Charging Point Yes
Bottle Holder No
Automatic Transmission No
Cruise Control No
Additional 12V utility socket

Safety in Eicher Pro 1114XP

Service Brakes Air brakes
Parking Brakes Pneumatically actuated
Exhaust Brake Yes
ABS Yes
Anti-Roll Bar No
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light No
Tubeless Tyres No
