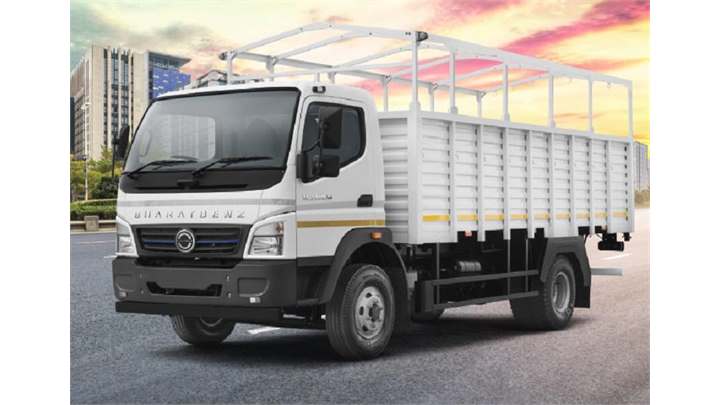

Overview of BharatBenz MD IN-Power 1014R

GVW 10600 Kg
Engine
  • 4D34i CRDI
  • SCR Technology
Power (Max.) 140 HP@2500 rpm
Torque (Max.) 420 Nm@1500-2000 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • Drop Side Deck
  • High Side Deck
Loading Span
  • 17 ft
  • 19 ft
  • 21 ft
Warranty
  • 3 years unlimited km on driveline
  • 2 years unlimited km on vehicle
Service Interval 40000 Km (Oil change)
Additional Multi Drive Mode

Engine & Performance of BharatBenz MD IN-Power 1014R

Engine
  • 4D34i CRDI
  • SCR Technology
Fuel Injection System Common rail
Engine Displacement 3907 cc
Engine Cylinders 4
Power (Max.) 140 HP@2500 rpm
Torque (Max.) 420 Nm@1500-2000 rpm
Clutch
  • 330 mm dia
  • With clutch booster
Transmission
  • 6 speed manual (6F+1R)
  • With cable shift
Gearbox MO 36, Synchromesh
Gradeability 24.5%
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity
  • Diesel: 200 Litres
  • Ad-Blu Tank: 27 Litres
  • With diesel anti-theft strain
Electricals / Battery 2x12V, 75 Ah

Design & Configuration of BharatBenz MD IN-Power 1014R

GVW 10600 Kg
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • Drop Side Deck
  • High Side Deck
Loading Span
  • 17 ft
  • 19 ft
  • 21 ft
Cabin Type Day cab
Cabin Tilt mechanism Manually tiltable
Chassis Frame Ladder type channel with cross members
Axle Configuration 4x2
Front Axle IF 3.6, Reverse Elliot Type
Rear Axle
  • AAM 7.14
  • Fully floating, Hypoid gears
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension Semi elliptical leaf springs
Anti-Roll Bar Front and Rear (Optional)
Tyres
  • 235/75 R17.5-14PR
  • 6+1 tyres
Wheelbase
  • 3760 mm
  • 4250 mm
  • 4800 mm
Turning Circle Diameter
  • 13.8 m (3760 wb)
  • 15.7 m (4250 wb)
  • 17.6 m (4800 wb)
Ground Clearance 175 mm
Overall Length
  • 6985 mm (3760 wb)
  • 7585 mm (4250 wb)
  • 8195 mm (4800 wb)
Overall Width 2190 mm
Overall Height 2390 mm
Chassis Depth 228 mm
Chassis Flange width 80 mm
Chassis Thickness 6 mm

Features & Comfort in BharatBenz MD IN-Power 1014R

Cabin Suspension No
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 4 way adjustable
Air Conditioner (A/C) HVAC
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking No
Power Windows Yes
Music System No
Mobile Charging Point Yes
Bottle Holder Yes
Automatic Transmission No
Cruise Control No

Safety in BharatBenz MD IN-Power 1014R

Service Brakes Air brakes
Parking Brakes Pneumatically operated
Exhaust Brake Yes
Anti-Roll Bar Front and Rear (Optional)
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light Yes
Tubeless Tyres Yes
Additional
  • Clutch wear indicator
  • Air filter choke indicator
