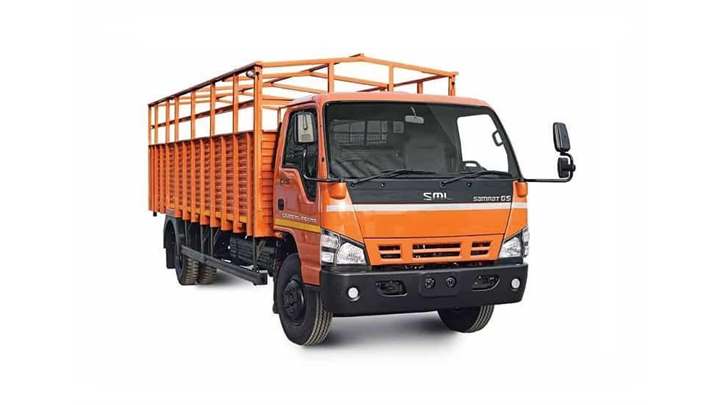

Overview of SML Isuzu Samrat GS

GVW 10250 Kg
Engine SLT4 CRDI TCIC
Power (Max.) 101 HP@2800 rpm
Torque (Max.) 296 Nm@1500 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span
  • 12.3 ft
  • 17.2 ft
  • 19.1 ft
  • 21.7 ft
Warranty
  • 3 Years / Unlimited Km on engine and transmission
  • 2 years / unlimited Km on vehicle
Service Interval 20,000 Km

Engine & Performance of SML Isuzu Samrat GS

Engine SLT4 CRDI TCIC
Fuel Injection System Common rail
Engine Displacement 3455 cc
Engine Cylinders 4
Power (Max.) 101 HP@2800 rpm
Torque (Max.) 296 Nm@1500 rpm
Clutch 260 mm dia
Transmission 5 speed manual (5F+1R)
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 90 / 180 Litres

Design & Configuration of SML Isuzu Samrat GS

GVW 10250 Kg
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span
  • 12.3 ft
  • 17.2 ft
  • 19.1 ft
  • 21.7 ft
Cabin Type Day cab
Cabin Tilt mechanism Tiltable
Chassis Frame Box type chassis with tubular cross members
Axle Configuration 4x2
Front Suspension
  • Semi elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi elliptical leaf springs
  • With telescopic shock absorbers
Tyres
  • 8.25x16-16 PR
  • 6+1 tyres
Wheelbase
  • 3335 mm
  • 4240 mm
  • 4760 mm
Ground Clearance 228 mm

Features & Comfort in SML Isuzu Samrat GS

Cabin Suspension Rigid
Steering Adjustment Tilt and telescopic
Driver Seat Type 4 way adjustable
Instrument Cluster Digital
Power Windows No
Music System No
Mobile Charging Point Yes
Automatic Transmission No
Cruise Control No

Safety in SML Isuzu Samrat GS

Service Brakes Air brakes
Differential Lock No
Seat Belts Yes
Fog Light Provision
Tubeless Tyres No
