Eicher Pro 6035 BS6 truck specifications

Name: Eicher Pro 6035
Brand: Eicher
SKU: P-N-0xWQr9

Rate This Vehicle

From ₹ 45.79-49.12 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers for this month

Download Eicher Pro 6035 Truck Brochure

Check out the Eicher Pro 6035 Truck PDF brochure at TrucksBuses.com with all features and specifications.

Key Details of Eicher Pro 6035 Truck

Power

240

GVW

35000 Kg

Fuel

Diesel

Engine

5131 cc

Cylinders

Key Specifications of Eicher Pro 6035 Truck

Engine
Configuration

Engine
VEDX5
Fuel Injection System
Common Rail
Engine Displacement
5131 cc
Engine Cylinders
4
Power
240 HP@2200 rpm
Torque
900 Nm@1200-1600 rpm
Clutch
395 mm dia
With clutch booster
Transmission
6 speed (6F+1R)
Gearbox
ET 90 S6
Gradeability
18%
Max Speed
80 Kmph
Emission Norms Compliance
BS6
Fuel Type
Diesel
Fuel Tank Capacity
Diesel: 350 Litres
Ad Blue: 50 Litres
Polymer tank
Electricals Battery
24V, 120 Ah

GVW
35000 Kg
Vehicle Configuration
Cowl with Chassis
Cabin and chassis
Cabin with load body
Loading Span
26 ft
29 ft
31 ft
32 ft

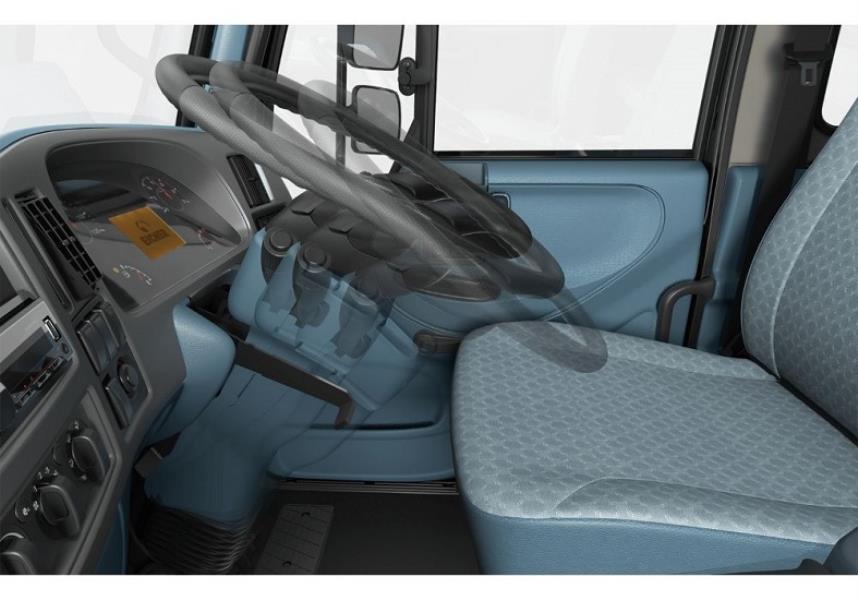

Cabin Type
Sleeper cabin
Cabin Tilt mechanism
Hydraulically tiltable

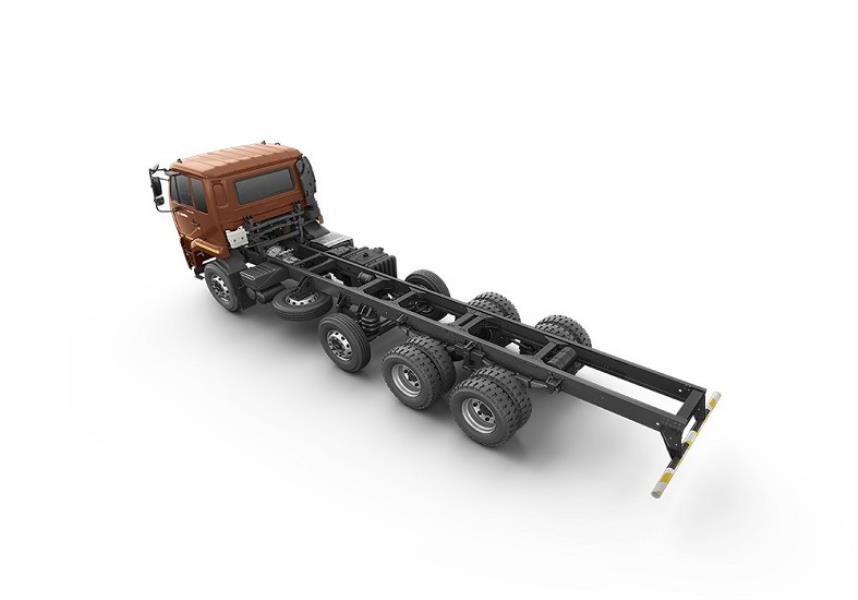

Chassis Frame
Domex frame
Axle Configuration
8x2
Front Axle
Forged I Beam, Reverse Elliot Type
Rear Axle
Banjo type, Single reduction
FDR 5.28
Front Suspension
Parabolic leaf springs
Rear Suspension
Slipper suspension
Anti Roll Bar
Front only
Tyres
Front: 295/90R20
Rear: 10R20
12+1 tyres
Wheelbase
5800 mm
6800 mm
Turning Circle Diameter
21 m (26 ft body)
23.8 m (29 / 31 ft body)
Ground Clearance
235 mm
Overall Width
2510 mm
Overall Height
3424 mm
Load Body Width
2343 mm
Front Track
2085 mm
Rear Track
1875 mm
Chassis Depth
300 mm
Chassis Flange width
76 mm
Chassis Thickness
6 mm

Eicher Pro 6035 Truck Specification Highlights

TrucksBuses will answer all your queries regarding the specifications of Eicher Pro 6035. The 12-wheeler Pro 6035 truck is equipped with a 4-cylinders engine of 5131 cc displacement which produces a maximum power of 240 horsepower and high-end torque of 900 Nm. The Eicher truck is coupled with an ET 90 S6 gearbox which has 6 forward and 1 reverse gear. The brand new Eicher 6035 truck has reached top speed of 80 kilometers per hour and offers a gradeability of up to 18%. The Eicher Pro truck has a polymer fuel tank that has a capacity of 350 liters. The Eicher 12 tyre truck has a sleeper cabin with a customized loading span of 26 feet, 29 feet, 31 feet and 32 feet. The wheelbase of Eicher Pro 6035 is 5800 mm to 6800 mm and its tyre size is 295/90R20 in front and 10R20 in the rear. Some other configurations of the Pro 6035 truck are arranged in the table above.

Eicher Pro 6035 Truck Brochure

Download Eicher Pro 6035 Truck brochure online. Check out the Eicher Pro 6035 Truck PDF brochure at TrucksBuses.com with all features and specifications.

Frequently Asked Questions on Eicher Pro 6035 Truck

What is the EMI of Eicher Pro 6035 ?

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Eicher Pro 6035 is expected to be around Rs 78083 for a 5 year period
