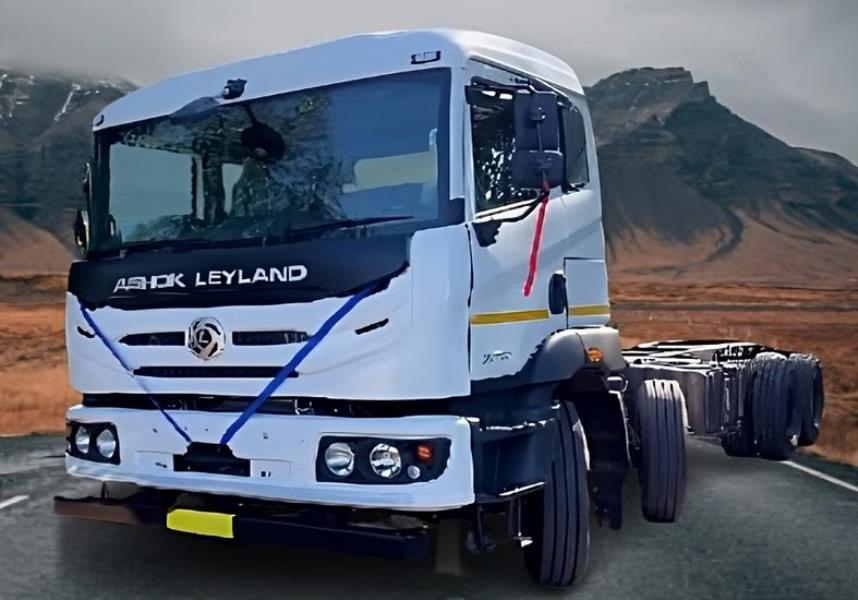

Ashok Leyland 3520 POL Tanker Specifications

4.5 (99 Reviews) Rate Now
MileageMileage3.5-4.5 KMPL*

*Ex - showroom Price of Ashok Leyland 3520 POL Tanker is 41.1 Lakh* Onwards

From ₹ 41.1 Lakh* Onwards

*Ex-showroom price in India

Ex-showroom price is indicative. On-road price varies by city, RTO, insurance and dealer offers.

Free quotes from verified dealers. No obligation. Reply usually in minutes.

Key Specifications of Ashok Leyland 3520 POL Tanker

Engine and configuration details for this model.

  • Engine
    H series CRS
    iGen-6 technology
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    5660 cc
  • Engine Cylinders
    6
  • Power
    200 HP
  • Torque
    700 Nm
  • Clutch
    380 mm dia
    Organic
    With clutch booster
  • Transmission
    6 speed (6F+1R)
    8 speed (Optional)
    With cable shift
  • Gearbox
    ZF 6S 850
  • Max Speed
    60 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 220 / 300 / 375 Litres
    Ad Blue: 48 Litres
    Polymer tank
  • Electricals Battery
    24V, 120 Ah

Ashok Leyland 3520 POL Tanker Specification Highlights

Tap here to specify the engine performance and body configuration of this Pol tanker. It is equipped with an H-series CRS iGen-6 technology engine of 5660 cc displacement that produces a power of 200 HP and a high-end torque of 700 Nm. A 6-speed gearbox system is provided to manage its power transmission. It runs on diesel fuel with good mileage. It comes under BS6 emission norms. It has a common rail fuel injection system and its fuel tank capacity is 220 litres. The loading span sizes of this tanker are 26 feet and 28 feet. You will get a sleeper cabin for this tanker. The chassis has a bolted construction frame of HSS material and its thickness is 7 and 8 and 8+6 mm. Both the front and the rear suspensions are coupled with semi-elliptical leaf springs. The wheelbase sizes of this tanker are 6000 mm and 6600 mm. This cargo truck tanker gives a ground clearance of 253 mm. More configurations are mentioned above in the table.

Should you buy Ashok Leyland 3520 POL Tanker?

A quick buyer guide based on listed specs, price band and typical duty cycles.

Pros

  • Gross vehicle weight rated at 35000 Kg for clear load planning.
  • Rated power of 200 HP for highway and loaded duty.
  • Diesel fuel option suited to common fleet fueling networks.
  • Published mileage guidance: 3.5-4.5 KMPL* (route-dependent).
  • Ex-showroom price band listed as 41.1 Lakh* Onwards (city offers may vary).

Things to check

  • Final on-road price varies by city, insurance, RTO and dealer offers.

Best for

  • Operators who need a trucks around 35000 Kg GVW
  • Cargo, tipper or haulage duty matching the listed GVW and power

Frequently Asked Questions on Ashok Leyland 3520 POL Tanker

Find quick answers about price, specifications, loading capacity, and more.

Ashok Leyland 3520 POL price starts from Rs 41.1 Lakh* Onwards . The 2024 price of Ashok Leyland 3520 POL can vary slightly from state to state and city to city.
GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Ashok Leyland 3520 POL GVW is 35000 Kg
Ashok Leyland 3520 POL comes with 6 cylinder H series CRS# iGen-6 technology engine and the engine displacement is 5660 cc
In terms of performance, Ashok Leyland 3520 POL produces a maximum power of 200 HP and a maximum torque of 700 Nm
Ashok Leyland 3520 POL comes with a 6 speed (6F+1R)# 8 speed (Optional)# With cable shift transmission along with a 380 mm dia# Organic# With clutch booster clutch
Ashok Leyland 3520 POL comes with Diesel fuel option and its fuel tank capacity is Diesel: 220 / 300 / 375 Litres# Ad Blue: 48 Litres# Polymer tank
The tyre size of Ashok Leyland 3520 POL is 295/90R20 (Tube)# 12+1 tyres
Ashok Leyland 3520 POL comes with Air brakes# With ASA
Ashok Leyland 3520 POL truck comes with a standard warranty of 4 Years / 4 Lakh Km
The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Ashok Leyland 3520 POL is expected to be around Rs Not Available for a 5 year period
