Commercial Vehicles in India

  • Ashok Leyland Ecomet 1214 Truck

Quick Search

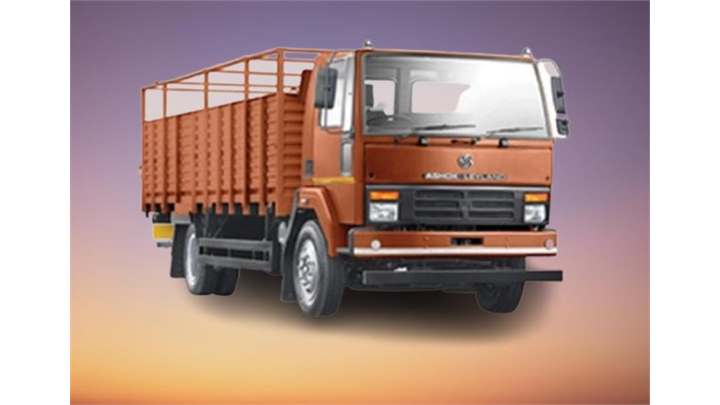

Overview of Ashok Leyland Ecomet 1214

GVW 15700 Kg
Engine
  • H Series 4 cylinder CRS
  • iEGR Technology
Power (Max.) 130 HP@2400 rpm
Torque (Max.) 450 Nm@1400-2000 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • Drop Side Deck
  • High Side Deck
Loading Span
  • 17 ft
  • 19 ft
  • 20 ft
  • 22 ft
  • 24 ft
Warranty 4 years / 4 Lakh km
Service Interval 40000 Km (Oil change)

Engine & Performance of Ashok Leyland Ecomet 1214

Engine
  • H Series 4 cylinder CRS
  • iEGR Technology
Fuel Injection System Common rail
Engine Displacement 3839 cc
Engine Cylinders 4
Power (Max.) 130 HP@2400 rpm
Torque (Max.) 450 Nm@1400-2000 rpm
Clutch
  • 330 mm dia
  • Hydraulic actualtion
Transmission
  • 6 speed manual (6F+1R)
  • Overdrive gearbox
Gearbox Synchromesh
Gradeability 21%
Max Speed 95 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 200 Litres
Electricals / Battery 12V, 100 Ah

Design & Configuration of Ashok Leyland Ecomet 1214

GVW 15700 Kg
Kerb Weight 5300 Kg (HSD 4200 wb)
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • Drop Side Deck
  • High Side Deck
Loading Span
  • 17 ft
  • 19 ft
  • 20 ft
  • 22 ft
  • 24 ft
Cabin Type
  • Sleeper cabin
  • Day cab (Optional)
Cabin Tilt mechanism Manually tiltable
Chassis Frame
  • All steel ladder type
  • With bolted construction
Axle Configuration 4x2
Front Axle I section, Reverse Elliot Type
Rear Axle Heavy duty hyphoid axle
Front Suspension Shackle ended leaf spring
Rear Suspension Shackle ended leaf spring
Tyres
  • 9R20–16 PR
  • Radial tyres
  • 6+1 tyres
Wheelbase
  • 4200 mm
  • 4750 mm
Turning Circle Diameter 14.7 m (17 ft)
Ground Clearance 232 mm
Overall Length
  • 7663 mm (4200 wb)
  • 8558 mm (4750 wb)
Overall Width 2307 mm (cabin)
Front Overhang 1338 mm
Rear Overhang
  • 2125 mm (4200 wb)
  • 2470 mm (4750 wb)
Front Track 1964 mm
Rear Track 1816 mm

Features & Comfort in Ashok Leyland Ecomet 1214

Cabin Suspension No
Steering Type Power steering
Steering Adjustment No
Driver Seat Type 4 way adjustable
Air Conditioner (A/C) No
Openable Quarter Ventilation Glass Yes
Instrument Cluster Analog
Telematics / GPS Tracking No
Power Windows No
Music System No
Bottle Holder Yes
Automatic Transmission No
Cruise Control No

Safety in Ashok Leyland Ecomet 1214

Service Brakes Air brakes
Parking Brakes
  • Spring actuated
  • Pneumatic (on rear only)
Exhaust Brake Yes
ABS Yes
Differential Lock No
Seat Belts Yes
Fog Light Provision
Tubeless Tyres No
