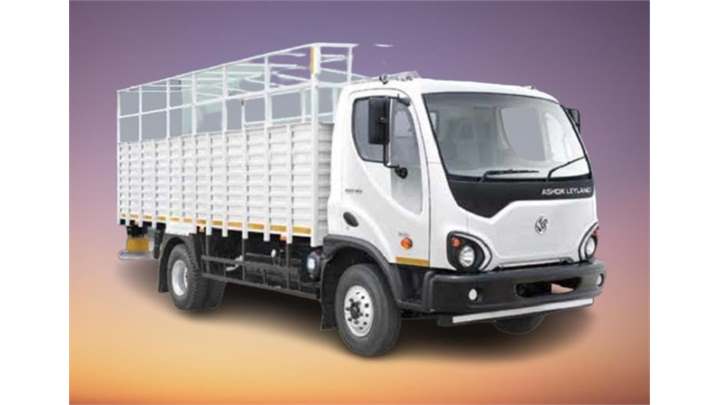

Overview of Ashok Leyland Boss 1916

GVW 18500 Kg
Engine
  • H Series CRS TCIC
  • iEGR Technology
Power (Max.) 160 HP@2400 rpm
Torque (Max.) 550 Nm@1200-1900 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with body options
Load Body Options
  • High Side Deck
  • POL Tanker
Loading Span
  • 18 ft
  • 20 ft
Warranty 4 Years / 4 Lakh Km
Service Interval 80,000 Km (Oil change)

Engine & Performance of Ashok Leyland Boss 1916

Engine
  • H Series CRS TCIC
  • iEGR Technology
Fuel Injection System Common Rail
Engine Displacement 5660 cc
Engine Cylinders 6
Power (Max.) 160 HP@2400 rpm
Torque (Max.) 550 Nm@1200-1900 rpm
Clutch
  • 380 mm dia
  • With clutch booster
Transmission
  • 6 speed manual (6F+1R)
  • With cable shift
Gearbox S6 MKII Synchromesh
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 200 Litres
Electricals / Battery
  • 24V, 110 Ah
  • Alternator: 85 Amps

Design & Configuration of Ashok Leyland Boss 1916

GVW 18500 Kg
Vehicle Configuration
  • Cabin and chassis
  • Cabin with body options
Load Body Options
  • High Side Deck
  • POL Tanker
Loading Span
  • 18 ft
  • 20 ft
Cabin Type Sleeper Cabin
Cabin Tilt mechanism Hydraulically tiltable
Chassis Frame Ladder type bolted construction
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle Fully floating, Single reduction hypoid
Front Suspension
  • Semi elliptical leaf springs
  • With shock absorbers
Rear Suspension
  • Semi elliptical leaf springs
  • With helper springs
Anti-Roll Bar In Front only
Tyres
  • 295/80 R 22.5
  • 6+1 tyres
Wheelbase
  • 4700 mm
  • 5100 mm
Turning Circle Diameter
  • 16.2 m (4700 wb)
  • 17.4 m (5100 wb)
Ground Clearance 253 mm
Overall Length
  • 8195 mm (4700 wb)
  • 8805 mm (5100 wb)
Chassis Depth 228 mm
Chassis Flange width 75 mm
Chassis Thickness 6 mm

Features & Comfort in Ashok Leyland Boss 1916

Cabin Suspension Suspended
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 4 way adjustable
Air Conditioner (A/C) HVAC (Optional)
Openable Quarter Ventilation Glass Yes
Instrument Cluster
  • Analog
  • With LED display
Power Windows No
Music System Yes
Mobile Charging Point Yes
Bottle Holder Yes
Automatic Transmission No
Cruise Control No

Safety in Ashok Leyland Boss 1916

Service Brakes Air brakes
Parking Brakes
  • Spring actuated pneumatic
  • Acting on rear wheels
ABS Yes
Anti-Roll Bar In Front only
Differential Lock No
Seat Belts Yes
Fog Light No
Tubeless Tyres Yes
