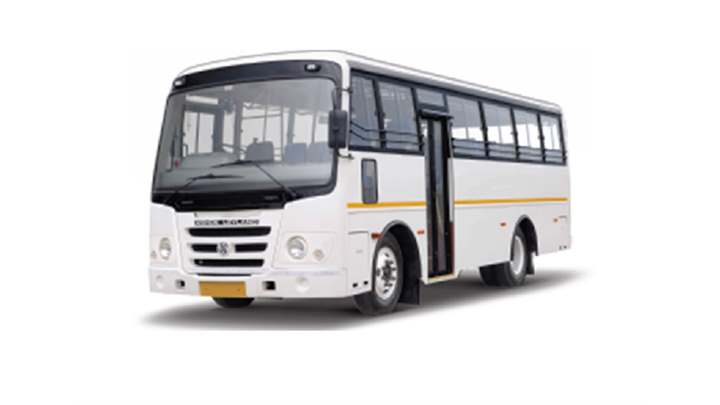

Overview of Ashok Leyland Lynx Strong : 47 Seater

Seating Capacity 47+D
Engine
  • H-Series CRS
  • With iEGR Technology
Power (Max.) 127 HP@2400 rpm
Torque (Max.) 450 Nm@1400-2000 rpm
GVW 11000 Kg
Suitable Applications Staff, Stage carriage
Warranty 4 Years / 4 Lakh Km on driveline
Service Interval 40,000 Km

Engine & Performance of Ashok Leyland Lynx Strong : 47 Seater

Engine
  • H-Series CRS
  • With iEGR Technology
Fuel Injection System Common Rail
Engine Displacement 3839 cc
Engine Cylinders 4
Engine Location Front
Power (Max.) 127 HP@2400 rpm
Torque (Max.) 450 Nm@1400-2000 rpm
Clutch
  • 330 mm dia
  • With booster
Transmission 5 speed manual (5F+1R)
Gearbox Synchromesh
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 165 Litres
Electricals / Battery 12V, 130 Ah

Design & Configuration of Ashok Leyland Lynx Strong : 47 Seater

GVW 11000 Kg
Seating Layout 3X2
Seating Capacity 47+D
Passenger Door Type One jack-knife type
Floor Type Anti-skid vinyl flooring
Axle Configuration 4x2
Front Axle Forged I section, Reverse Elliot type
Front Suspension
  • Multi leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Multi leaf springs
  • With telescopic shock absorbers
Anti-Roll Bar Rear only
Tyres
  • 8.25x20 - 16PR
  • 6+1 tyres
Wheelbase 4900 mm
Turning Circle Diameter 21.5 m
Ground Clearance 231 mm
Floor Height 1100 mm
Overall Length 9334 mm
Overall Width 2550 mm
Overall Height 3020 mm
Front Overhang 1580 mm
Rear Overhang 2940 mm
Front Track 1918 mm
Rear Track 1816 mm

Features & Comfort in Ashok Leyland Lynx Strong : 47 Seater

Driver Seat Type 4 way adjustable
Steering Type Power Steering
Steering Adjustment Rigid
Instrument cluster
  • Analog
  • With LED display
Automatic Transmission No
Telematics / GPS Tracking No
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass Yes
Front Windshield Single piece laminated glass
Rear Windshield Single piece tempered glass
Side Windows Sliding glass
Hatrack Tubular
Passenger Seat Type High back seats
Arm Rests Available on each seat
AC Vents NA
Mobile Charging Point No
Speakers No
Saloon Light Yes
Step Lamp Yes

Safety in Ashok Leyland Lynx Strong : 47 Seater

Service Brakes Air brakes
ABS Yes
Anti-Roll Bar Rear only
Grab Handle Available on each seat
Window Guardrail Yes
Guide/Grab Rail Yes
Driver Area Partition Partition with MS pipe
Door Alarm Yes
Emergency Exit
  • Breakable rear glass with hammer
  • Door at rear RH side
Roof Hatch No
Fire Extinguisher Yes
First Aid Box Yes
Peep Window Yes
Step Lamp Yes
Fog Light Provision
Tubeless Tyres No
Retarder No
