Commercial Vehicles in India

  • Ashok Leyland VK 1311

Quick Search

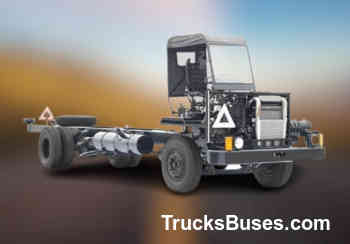

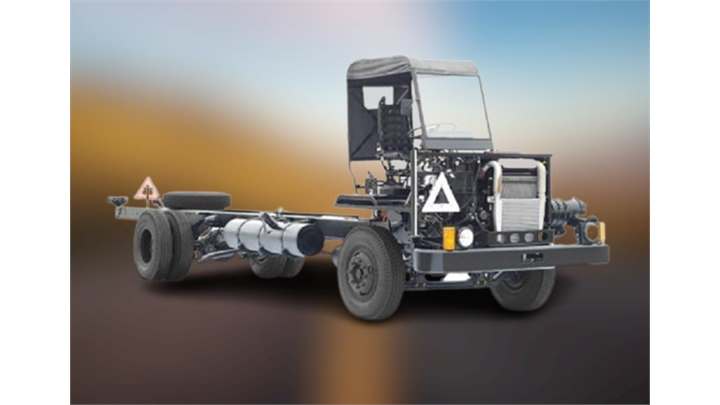

Overview of Ashok Leyland VK 1311

Overall Length
  • 10368 mm (5334 wb)
  • 10859 mm (5639 wb)
Engine
  • H-Series CRS
  • Wth iEGR Technology
Power (Max.) 130 HP@2400 rpm
Torque (Max.) 450 Nm@1250-2000 rpm
GVW 15450 Kg
Suitable Applications School and staff
Warranty 4 Years / 4 Lakh Km on driveline
Service Interval 40,000 Km

Engine & Performance of Ashok Leyland VK 1311

Engine
  • H-Series CRS
  • Wth iEGR Technology
Fuel Injection System Common Rail
Engine Displacement 3839 cc
Engine Cylinders 4
Engine Location Front
Power (Max.) 130 HP@2400 rpm
Torque (Max.) 450 Nm@1250-2000 rpm
Clutch
  • 330 mm dia
  • Air assisted hydraulic actuation
Transmission
  • 6 speed manual (5F+1R)
  • Overdrive gearbox
Gearbox Synchromesh
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 165 Litres
Electricals/Battery
  • 12V, 150 Ah
  • 55 Amps

Design & Configuration of Ashok Leyland VK 1311

GVW 15450 Kg
Overall Length
  • 10368 mm (5334 wb)
  • 10859 mm (5639 wb)
Vehicle Configuration Chassis without face-cowl
Axle Configuration 4x2
Rear Axle Fully floating Single Reduction Hypoid type
Front Suspension
  • Multi leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Multi leaf springs
  • With telescopic shock absorbers
Anti-Roll Bar Rear only
Tyres
  • 9 R 20 - 14PR
  • 6+1 tyres
Wheelbase
  • 5334 mm
  • 5639 mm
Turning Circle Diameter
  • 21.8 m (5334 wb)
  • 23.05 m (5639 wb)
Front Overhang 1912 mm
Rear Overhang
  • 3122 mm (5334 wb)
  • 3308 mm (5639 wb)

Features & Comfort in Ashok Leyland VK 1311

Driver Seat Type 4 way adjustable
Steering Type Power Steering
Steering Adjustment Rigid
Instrument cluster
  • Analog
  • With LED display
Automatic Transmission No

Safety in Ashok Leyland VK 1311

Service Brakes Air brakes
ABS Yes
Anti-Roll Bar Rear only
Tubeless Tyres No
Retarder No
