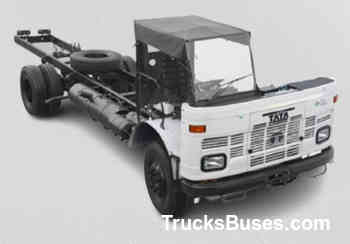

Tata LP 1512 Bus Chassis Images
Tata LP 1512 Bus Chassis Images
Tata LP 1512 Bus Chassis Images
Tata LP 1512 Bus Chassis Images
Tata LP 1512 Bus Chassis Images

Tata LP 1512 Bus Chassis Specifications

Rate This Vehicle
Check Discount Offer Check On Road Price
 Don't miss out on the best discount offers for this month

Key Details of Tata LP 1512 Bus Chassis

Power
135
GVW
16200 Kg
Fuel
Diesel
Engine
5883 cc
Cylinders
6
Trucksbuses.com
Trucksbuses.com

Key Specifications of Tata LP 1512 Bus Chassis

  • Engine
    Cummins ISBe 5.9 CRDi
    SCR Technology
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    5883 cc
  • Engine Cylinders
    6
  • Engine Location
    Front
  • Power
    135 HP@2500 rpm
  • Torque
    430 Nm@1500 rpm
  • Clutch
    330 mm dia
    Organic
  • Gearbox
    G40 synchromesh
  • Gradeability
    21%
  • Max Speed
    80 kmph
  • Emission Norms Compliance
    BSIV
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    250 Litres
  • Electricals Battery
    2x12 Volts, 150 Ah
    Alternator: 45 Amps
  • GVW
    16200 Kg
  • Overall Length
    7380 mm (4225 wb)
    9495 mm (5195 wb)
  • Chassis Frame
    Ladder type with rivetted / bolted cross members
  • Axle Configuration
    4x2
  • Rear Axle
    Single reduction hypoid gears
    Fully floating axle shafts
  • Front Suspension
    Semi elliptical leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Semi elliptical leaf springs
    With telescopic shock absorbers
  • Anti Roll Bar
    Front only
  • Tyres
    10R20 - 16PR
    Radial tyre
  • Wheelbase
    4225 mm
    5195 mm
  • Turning Circle Diameter
    16.8 m (4225 wb)
    20.3 m (5195 wb)
  • Ground Clearance
    276 mm
  • Front Overhang
    1185 mm
  • Rear Overhang
    1970 mm (4225 wb)
    3115 mm (5195 wb)
  • Front Track
    1926 mm
  • Rear Track
    1809 mm

Tata LP 1512 Bus Chassis Specification Highlights

Check all the Tata LP 1512 bus specifications here on TrucksBuses The main driveline of this Tata bus chassis includes a 6 cylinder Cummins ISBe 5.9 CRDi, SCR Technology engine that produces a maximum power of 135 HP and a torque of 430 NmTata LP 1512 bus comes with a gross vehicle weight of 16200 kg and offers length of 7380 mm (4225 wb), 9495 mm (5195 wb) For the comfortable journeys, semi elliptical leaf springs, with telescopic shock absorbers in front and semi elliptical leaf springs, with telescopic shock absorbers in rear does the duty in this Tata bus chassis Other Tata LP 1512 bus specifications like chassis, width, tyre, turning circle dia are available here in the tables on this page.

Frequently Asked Questions on Tata LP 1512 Bus Chassis

Tata LP 1512 bus chassis price starts from Rs 0. The 2023 price of Tata LP 1512 bus chassis can vary slightly from state to state and city to city.
Tata LP 1512 bus GVW is 16200 Kg
Tata LP 1512 bus chassis can accomodate multiple seating options depending on the exact requirement. Tata LP 1512 bus chassis seating capacity will depend on the type of body being made and the application it is going to be used for like staff application, school, route permit etc, with each offering a different number of seats.
Tata LP 1512 bus chassis comes with 6 cylinder Cummins ISBe 5.9 CRDi# SCR Technologyengine and the engine displacement is 5883 cc
In terms of performance, Tata LP 1512 bus chassis produces a maximum power of 135 HP@2500 rpm and a maximum torque of 430 Nm@1500 rpm
Tata LP 1512 bus comes with a transmission
Tata LP 1512 bus comes with Diesel fuel option and its fuel tank capacity is 250 Litres
The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer, loan tenure and the body funding availed. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata LP 1512 bus is expected to be around Rs Not Available for a 5 year period
The tyre size of Tata LP 1512 bus is 10R20 - 16PR# Radial tyre
Tata LP 1512 bus comes with Air brakes
Tata LP 1512 bus comes with a standard warranty of 3 Years / 3 Lakh Km on driveline
