  • Tata LP 1512 TC BSIV

Quick Search

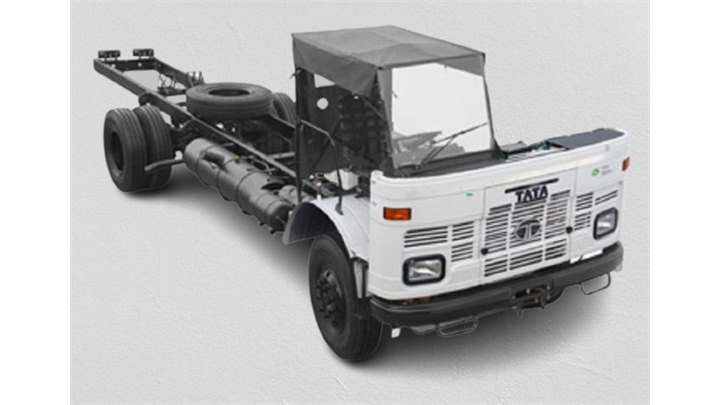

Overview of Tata LP 1512

Overall Length
  • 7380 mm (4225 wb)
  • 9495 mm (5195 wb)
Engine
  • Cummins ISBe 5.9 CRDi
  • SCR Technology
Power (Max.) 135 HP@2500 rpm
Torque (Max.) 430 Nm@1500 rpm
GVW 16200 Kg
Warranty 3 Years / 3 Lakh Km on driveline
Service Interval
  • 40,000 Km (Short route)
  • 60,000 Km (Long route)

Engine & Performance of Tata LP 1512

Engine
  • Cummins ISBe 5.9 CRDi
  • SCR Technology
Fuel Injection System Common Rail
Engine Displacement 5883 cc
Engine Cylinders 6
Engine Location Front
Power (Max.) 135 HP@2500 rpm
Torque (Max.) 430 Nm@1500 rpm
Clutch
  • 330 mm dia
  • Organic
Transmission 5 speed manual (5F+1R)
Gearbox G40 synchromesh
Gradeability 21%
Max Speed 80 kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 250 Litres
Electricals/Battery
  • 2x12 Volts, 150 Ah
  • Alternator: 45 Amps

Design & Configuration of Tata LP 1512

GVW 16200 Kg
Overall Length
  • 7380 mm (4225 wb)
  • 9495 mm (5195 wb)
Max Width 2560 mm
Vehicle Configuration Chassis with face-cowl
Chassis Frame Ladder type with rivetted / bolted cross members
Axle Configuration 4x2
Rear Axle
  • Single reduction hypoid gears
  • Fully floating axle shafts
Front Suspension
  • Semi elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi elliptical leaf springs
  • With telescopic shock absorbers
Anti-Roll Bar Front only
Tyres
  • 10R20 - 16PR
  • Radial tyre
Wheelbase
  • 4225 mm
  • 5195 mm
Turning Circle Diameter
  • 16.8 m (4225 wb)
  • 20.3 m (5195 wb)
Ground Clearance 276 mm
Front Overhang 1185 mm
Rear Overhang
  • 1970 mm (4225 wb)
  • 3115 mm (5195 wb)
Front Track 1926 mm
Rear Track 1809 mm

Features & Comfort in Tata LP 1512

Driver Seat Type 6 way adjustable
Steering Type Power Steering
Steering Adjustment Rigid
Instrument cluster Analog
Automatic Transmission No

Safety in Tata LP 1512

Service Brakes Air brakes
Parking Brakes Spring actuated acting on rear wheels
ABS Yes
Anti-Roll Bar Front Only
Tubeless Tyres No
Retarder No
