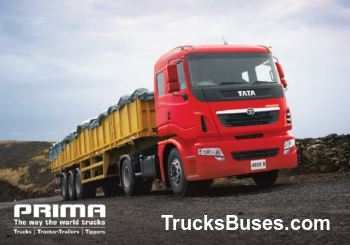

Overview of Tata Prima 4028.S

Gross Combination Weight (GCW) 40200 Kg
Axle Configuration 4x2
Engine
  • Cummins 6 ISBe 270 30
  • Direct Injection, Turbo-charged
Power (Max.) 267 HP@2500 rpm
Torque (Max.) 970 Nm@1200-1700 rpm
Transmission 9 speed manual (8F+1CR+1R)
Warranty
  • 4 Years / 4 Lakh Km on driveline
  • 2 Years / 2 Lakh Km on vehicle

Engine & Performance of Tata Prima 4028.S

Engine
  • Cummins 6 ISBe 270 30
  • Direct Injection, Turbo-charged
Fuel Injection System Common Rail
Engine Displacement 6700 cc
Engine Cylinders 6
Power (Max.) 267 HP@2500 rpm
Torque (Max.) 970 Nm@1200-1700 rpm
Clutch
  • Single dry plate, 430 mm dia
  • Organic
  • With Clutch Booster
Transmission 9 speed manual (8F+1CR+1R)
Gearbox
  • ZF 9S 1110 TD with overdrive gear
  • 9F-Synchromesh
  • 1R- Constant mesh
Gradeability 23.40%
Max Speed 99 Kmph
Emission Norms Compliance BSIII
Fuel Type Diesel
Fuel Tank Capacity 625 Litres (365+260)
Electricals / Battery
  • 2x12V, 150 Ah
  • Alternator: 90 Amps

Design & Configuration of Tata Prima 4028.S

Gross Combination Weight (GCW) 40200 Kg
Kerb Weight 7280 Kg
Cabin Type Sleeper cabin with 4 point suspension
Cabin Tilt mechanism Hydraulically tiltable
Chassis Frame Channel section with cross members
Axle Configuration 4x2
Rear Axle RA - 210 HR
Front Suspension Parabolic leaf springs
Rear Suspension Semi-elliptical leaf springs
Tyres 11R20-16PR
Wheelbase 3460 mm
Turning Circle Diameter 12.9 m
Overall Length 6133 mm
Overall Width 2585 mm
Chassis Depth 286 mm
Chassis Flange width 90 mm
Chassis Thickness 7 mm

Features & Comfort in Tata Prima 4028.S

Cabin Suspension Fully suspended
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type
  • 6 way adjustable
  • With air suspension
Air Conditioner (A/C) Yes
Openable Quarter Ventilation Glass No
Instrument Cluster
  • Digital
  • With Fuel Mileage indicator
Telematics / GPS Tracking
  • Telematics unit as standard fitment
  • Service activation (Optional)
Automatic Transmission No
Cruise Control No
Additional Cup holder

Safety in Tata Prima 4028.S

Service Brakes Air Brakes, dual line
ABS Yes
Differential Lock No
Seat Belts Yes
Fog Light Yes
Tubeless Tyres No
