Compare Tata Prima 4028.S vs Ashok Leyland 4020 AM
Compare tata prima 4028 s vs ashok leyland 4020 am

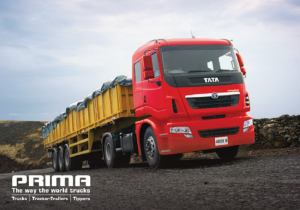

Tata Prima 4028.S
Ashok Leyland 4020 AM
Overviewof
| GCW (Kg) |
40200 Kg |
39500 Kg |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Engine |
Cummins 6 ISBe 270 30
Direct Injection, Turbo-charged |
H series CRS
iGen6 technology |
|
| Power |
267 HP@2500 rpm |
198 HP@2400 rpm |
|
| Torque |
970 Nm@1200-1700 rpm |
700 Nm@1200-1900 rpm |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
6 speed (6F+1R) |
|
| Warranty |
4 Years / 4 Lakh Km on driveline
2 Years / 2 Lakh Km on vehicle |
|
|
Engine & Performanceof
| Engine |
Cummins 6 ISBe 270 30
Direct Injection, Turbo-charged |
H series CRS
iGen6 technology |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
6700 cc |
5660 cc |
|
| Power |
267 HP@2500 rpm |
198 HP@2400 rpm |
|
| Torque |
970 Nm@1200-1700 rpm |
700 Nm@1200-1900 rpm |
|
| Clutch |
Single dry plate, 430 mm dia
Organic
With Clutch Booster |
380 mm dia
Air assisted hydraulic booster |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
6 speed (6F+1R) |
|
| Gearbox |
ZF 9S 1110 TD with overdrive gear
9F-Synchromesh
1R- Constant mesh |
Synchromesh |
|
| Max Speed |
99 Kmph |
80 Kmph |
|
| Emission Norms Compliance |
BSIII |
BS6 |
|
| Fuel Tank Capacity |
625 Litres (365+260) |
Diesel: 375 Litres
Polymer tank |
|
| Electricals Battery |
2x12V, 150 Ah
Alternator: 90 Amps |
24V, 120 Ah / 150 Ah (AC) |
|
Design & Configurationof
| Gross Combination Weight |
40200 Kg |
39500 Kg |
|
| Cabin Type |
Sleeper cabin with 4 point suspension |
Economy cabin |
|
| Cabin Tilt mechanism |
Hydraulically tiltable |
|
|
| Chassis Frame |
Channel section with cross members |
Bolted ladder type |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Rear Axle |
RA - 210 HR |
Fully floating, Single speed |
|
| Front Suspension |
Parabolic leaf springs |
Parabolic springs
Optional : Semi elliptic multi leaf |
|
| Rear Suspension |
Semi-elliptical leaf springs |
Semi elliptic multi leaf
Parabolic helper springs |
|
| Tyres |
11R20-16PR |
295/90R20 |
|
| Wheelbase |
3460 mm |
3200 mm |
|
| Turning Circle Diameter |
12.9 m |
11.6 m |
|
| Overall Length |
6133 mm |
5600 mm |
|
| Overall Width |
2585 mm |
2570 mm |
|
| Chassis Flange width |
90 mm |
|
|
Features & Comfortof
| Cabin Suspension |
Fully suspended |
|
|
| Steering |
Power Steering |
Power steering |
|
| Steering Adjustment |
Tilt and telescopic |
No |
|
| Driver Seat |
6 way adjustable
With air suspension |
4 way adjustable |
|
| Air Conditioner (AC) |
Yes |
No |
|
| Quarter Ventilation Glass |
No |
|
|
| Instrument Cluster |
Digital
With Fuel Mileage indicator |
Digital
With analog dials |
|
| Telematics |
Telematics unit as standard fitment
Service activation (Optional) |
Yes |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air Brakes, dual line |
Full air dual line brakes with ABS |
|
Key Comparison of Tata Prima 4028.S vs Ashok Leyland 4020 AM
Compare Tata Prima 4028.S vs Ashok Leyland 4020 AM in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Prima 4028.S with Ashok Leyland 4020 AM on the basis of engine, specifications, payload, price, mileage and features. Tata Prima 4028.S with a gross weight of , gives a power of whereas Ashok Leyland 4020 AM produces of power and comes with a GVW of . Powering the Tata Prima 4028.S truck is cylinder, engine whereas Ashok Leyland 4020 AM gets powered by a cylinder, engine.
