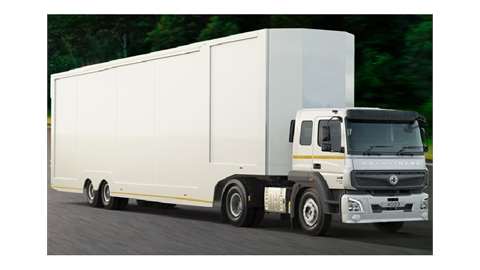

BharatBenz 4023T Truck

From ₹ 29.12-29.68 Lakh*

*Ex-showroom Price in New Delhi

Key Specs of BharatBenz 4023T Truck

Power
241 HP
GVW
39500 Kg
Fuel
Diesel
Engine
7200 cc
Cylinders
6

Key Specifications of BharatBenz 4023T

  • Engine
    OM 926
  • Fuel Injection System
    Unitised fuel injection pump
  • Engine Displacement
    7200 cc
  • Engine Cylinders
    6
  • Power
    241 HP
  • Torque
    850 Nm
  • Clutch
    395 mm dia
    With clutch booster
  • Transmission
    9 speed (9F+1R)
  • Gearbox
    G131, Synchromesh
  • Gradeability
    26.2% (4.778 RAR)
    25.8% (4.3 RAR)
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 455 / 430 Litres
    Ad Blue: 60 / 51 Litres
    With diesel anti-theft strain
  • Electricals Battery
    24V, 120 Ah
  • Gross Combination Weight
    39500 Kg
  • Cabin Type
    Sleeper cabin
  • Cabin Tilt mechanism
    Hydraulically tiltable
  • Chassis Frame
    Channel section with cross members
  • Axle Configuration
    4x2
  • Front Axle
    IF 6.6 / 7.0 Reverse Elliot Type
  • Rear Axle
    IR440-11
    RAR 4.3 / 4.778
  • Front Suspension
    Parabolic leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Semi elliptical leaf springs
  • Anti Roll Bar
    Front only
  • Tyres
    11R20 or 295/90R20
    295/80 R22.5 Tubeless
    6+1 tyres
  • Wheelbase
    3300 mm
  • Turning Circle Diameter
    12.8 m
  • Ground Clearance
    237 mm
  • Overall Length
    5780 mm
  • Overall Width
    2490 mm
  • Overall Height
    2975 mm
  • Front Overhang
    1485 mm
  • Rear Overhang
    995 mm
  • Chassis Depth
    288 mm
  • Chassis Flange width
    70 mm
  • Chassis Thickness
    9 mm

BharatBenz 4023T Specification Highlights

Check all the BharatBenz 4023T specifications on TrucksBuses in this section. The main driveline of BharatBenz 4023T includes a 6 cylinder OM 926 engine that produces a maximum power of and a torque of . It gets mated to 9 speed (9F+1R), G131, Synchromesh gearbox. A gross weight of 39500 kg coupled with suitable trailer, allows the owner to carry multiple kinds of goods as per requirement. BharatBenz 4023T comes with a beautiful looking sleeper cabin with wide variety of utility features for driver comfort. Other BharatBenz 4023T specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available in the tables above.

Frequently Asked Questions on BharatBenz 4023T Truck

BharatBenz 4023T price starts from Rs 29.12-29.68 Lakh*. The 2021 price of BharatBenz 4023T can vary slightly from state to state and city to city.
GCW of any tractor trailer is the sum total of empty kerb weight and the payload it can carry. BharatBenz 4023T GVW is
BharatBenz 4023T comes with 6 cylinder OM 926 engine and the engine displacement is 7200 cc
In terms of performance, BharatBenz 4023T produces a maximum power of 241 HP and a maximum torque of 850 Nm
BharatBenz 4023T comes with a 9 speed (9F+1R) transmission along with a 395 mm dia# With clutch booster clutch
BharatBenz 4023T comes with Diesel fuel option and its fuel tank capacity is Diesel: 455 / 430 Litres# Ad Blue: 60 / 51 Litres# With diesel anti-theft strain
Gradeability of any truck defines its ability to climb upward slopes. The gradeability of BharatBenz 4023T is 26.2% (4.778 RAR)# 25.8% (4.3 RAR).
The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of BharatBenz 4023T is expected to be around Rs 61871 for a 5 year period
The tyre size of BharatBenz 4023T is 11R20 or 295/90R20# 295/80 R22.5 Tubeless# 6+1 tyres
BharatBenz 4023T comes with Pneumatically operated
BharatBenz 4023T tipper comes with a standard warranty of 6 Years / 6 Lakh km on driveline# 3 Years / 3 Lakh km on vehicle
