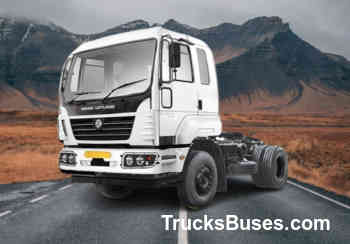

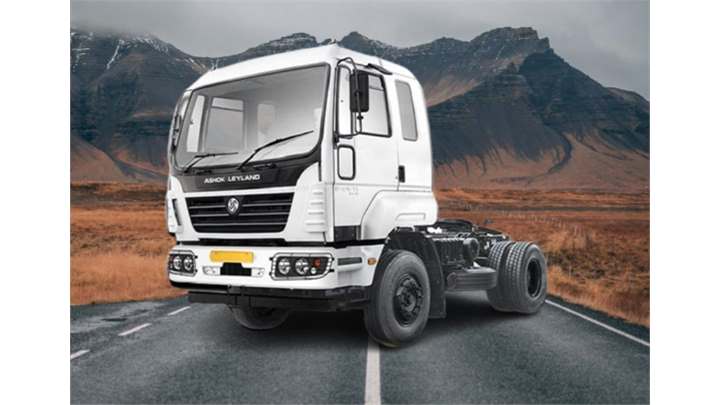

Overview of Ashok Leyland U 4019 BSIV

Gross Combination Weight (GCW) 40200 Kg
Axle Configuration 4x2
Engine
  • H Series 5.7L CRS
  • iEGR Technology
Power (Max.) 180 HP@2400 rpm
Torque (Max.) 660 Nm@1200-1900 rpm
Transmission 6 speed manual (6F+ 1R)
Warranty 4 Years / 4 Lakh Km
Service Interval 80,000 Km (Oil change)

Engine & Performance of Ashok Leyland U 4019 BSIV

Engine
  • H Series 5.7L CRS
  • iEGR Technology
Fuel Injection System Common Rail
Engine Displacement 5660 cc
Engine Cylinders 6
Power (Max.) 180 HP@2400 rpm
Torque (Max.) 660 Nm@1200-1900 rpm
Clutch
  • Single plate, 380 mm dia
  • With clutch booster
Transmission 6 speed manual (6F+ 1R)
Gearbox ZF 6S36
Gradeability 16.73%
Max Speed 70 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 400 Litres
Electricals / Battery 2X12V,130 Ah

Design & Configuration of Ashok Leyland U 4019 BSIV

Gross Combination Weight (GCW) 40200 Kg
Kerb Weight 5900 Kg
Cabin Type Sleeper cabin
Cabin Tilt mechanism Tiltable Cabin
Chassis Frame Ladder type joggled bolted with cross members
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle
  • Single-speed hypoid gear Axle
  • RAR 6.83:1
Front Suspension Parabolic leaf springs
Rear Suspension Semi-elliptical leaf springs
Tyres
  • 10 R 20-16 PR
  • Radial tyres
Wheelbase 3300 mm
Turning Circle Diameter 13 m
Ground Clearance 260 mm
Overall Length 5670 mm
Overall Width 2445 mm
Overall Height 3290 mm
Front Track 1957 mm
Rear Track 1816 mm
Chassis Depth 275 mm
Chassis Flange width 90 mm
Chassis Thickness 6 mm

Features & Comfort in Ashok Leyland U 4019 BSIV

Cabin Suspension Fully suspended
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass Yes
Instrument Cluster
  • Analog
  • With LED display
Telematics / GPS Tracking Optional
Automatic Transmission No
Cruise Control No

Safety in Ashok Leyland U 4019 BSIV

Service Brakes Air Brakes, dual line HLP
Parking Brakes
  • Flick valve operated pneumatic
  • Acting on rear wheels
ABS Yes
Differential Lock No
Seat Belts Yes
Tubeless Tyres No
