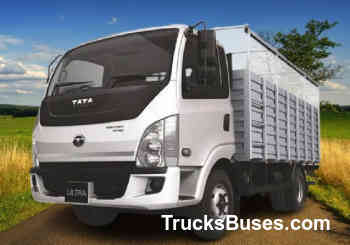

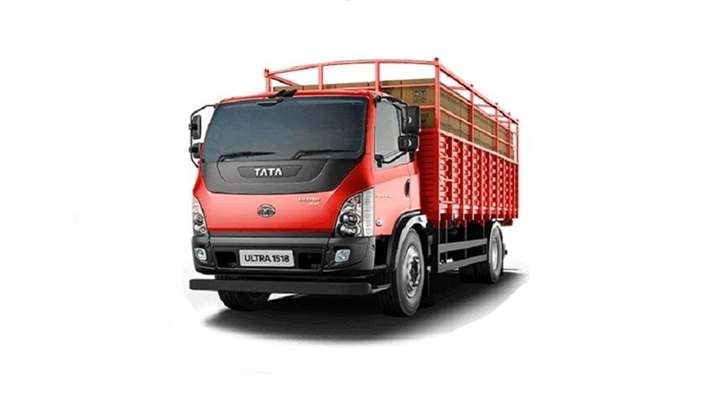

Overview of Tata Ultra 1518 T

GVW 16190 Kg
Engine
  • NG 5L DICR
  • Turbocharged Intercooled
  • EGR Technology
Power (Max.) 177 HP@2400 rpm
Torque (Max.) 590 Nm@1000-2000 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body
Load Body Options High Side Deck
Loading Span
  • 17 ft
  • 20 ft
  • 22 ft
  • 24 ft
Warranty 3 Years / 3 Lakh Km on driveline
Service Interval 60000 Km

Engine & Performance of Tata Ultra 1518 T

Engine
  • NG 5L DICR
  • Turbocharged Intercooled
  • EGR Technology
Fuel Injection System Common Rail
Engine Displacement 5005 cc
Engine Cylinders 4
Power (Max.) 177 HP@2400 rpm
Torque (Max.) 590 Nm@1000-2000 rpm
Clutch
  • 352 mm dia
  • With clutch booster
Transmission
  • 6 speed manual (6F+1R)
  • Dashboard mounted gear lever
Gearbox
  • GBS 750
  • Cable shift
Gradeability 26.5%
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 160 Litres
Electricals / Battery
  • 24V, 2x75 Ah
  • Alternator: 50 Amps

Design & Configuration of Tata Ultra 1518 T

GVW 16190 Kg
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body
Load Body Options High Side Deck
Loading Span
  • 17 ft
  • 20 ft
  • 22 ft
  • 24 ft
Cabin Type
  • Day cab
  • Sleeper cabin (Optional)
Cabin Tilt mechanism Hydraulically tiltable
Chassis Frame Domex frame with bolted design
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle
  • Fully Floating, Single reduction hypoid gears
  • Banjo type
Front Suspension
  • Parabolic leaf spring
  • With telescopic shock absorbers
Rear Suspension
  • Semi-elliptical leaf springs
  • With parabolic auxiliary springs
Anti-Roll Bar Front only
Tyres
  • 275/80 R 22.5
  • Tubeless Radial tyres
  • 6+1 tyres
Wheelbase
  • 4530 mm
  • 4920 mm
  • 5300 mm
Turning Circle Diameter
  • 15.7 m (4530 mm)
  • 17 m (4920 mm)
  • 18.9 m (5300 mm)
Ground Clearance 228 mm
Chassis Depth 250 mm
Chassis Thickness 7 mm

Features & Comfort in Tata Ultra 1518 T

Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) HVAC (Optional)
Openable Quarter Ventilation Glass No
Instrument Cluster
  • Digital
  • With live Kmpl indicator
  • Distance to empty
  • Neutral position
Telematics / GPS Tracking
  • Telematics unit as standard fitment
  • Service activation standard
Power Windows Optional
Music System No
Mobile Charging Point Yes
Bottle Holder Yes
Automatic Transmission No
Cruise Control No
Additional Digital clock

Safety in Tata Ultra 1518 T

Service Brakes Air brakes
Parking Brakes Hand operated
ABS Yes
Anti-Roll Bar Front only
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light Provision
Tubeless Tyres No
