Eicher Pro 3019 Truck Specifications

From ₹ 30.97-34.33 Lakh*
*Ex-showroom Price

 Don't miss out on the best discount offers for this month

Key Details of Eicher Pro 3019 Truck

Power
180
GVW
18500 Kg
Fuel
Diesel
Engine
3760 cc
Cylinders
4

Key Specifications of Eicher Pro 3019 Truck

  • Engine
    E494, 4V CRS
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    3760 cc
  • Engine Cylinders
    4
  • Power
    180 HP@2600 rpm
  • Torque
    600 Nm@1200-1800 rpm
  • Clutch
    362 mm dia
  • Transmission
    6 speed (6F+1R)
  • Gearbox
    ET 70 S6
  • Gradeability
    25%
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 190 / 425 Litres
    Ad Blue: 27 Litres
    Polymer tank
  • Electricals Battery
    24V, 120 Ah
  • GVW
    18500 Kg

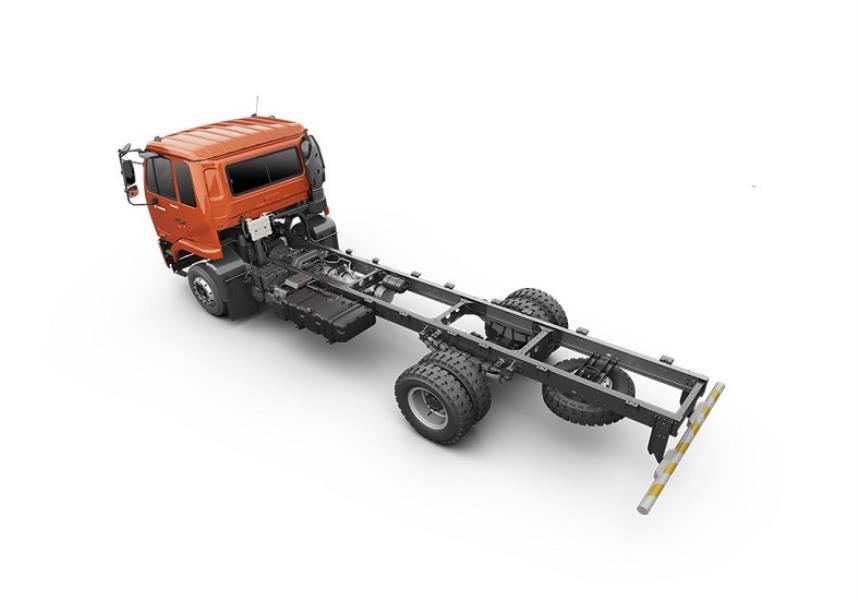

  • Vehicle Configuration
    Cowl with Chassis
    Cabin and chassis
    Cabin with load body
  • Load Body Options
    High Side Deck
    Container
  • Loading Span
    With Cabin: 20 ft, 24 ft, 31.5 ft
    With Cowl: 32 ft
  • Cabin Type
    Sleeper cabin
  • Cabin Tilt mechanism
    Manually tiltable
  • Chassis Frame
    Domex frame
  • Axle Configuration
    4x2
  • Front Axle
    Forged I Beam, Reverse Elliot Type
  • Rear Axle
    Banjo type, Single reduction
    FDR 5.86
  • Front Suspension
    Parabolic leaf springs
  • Rear Suspension
    Semi elliptical leaf springs
  • Anti Roll Bar
    Front only
  • Tyres
    295/90R20
    6+1 tyres
  • Wheelbase
    4490 mm
    5490 mm
    6690 mm
  • Turning Circle Diameter
    16.6 m (20 ft body)
    20.2 m (24 ft body)
    23.2 ft (32 ft body)
  • Ground Clearance
    258 mm
  • Overall Width
    2332 mm
  • Load Body Width
    2343 mm
  • Chassis Depth
    230 mm
  • Chassis Flange width
    76 mm
  • Chassis Thickness
    6 mm

Eicher Pro 3019 Truck Specification Highlights

This 6-wheeler Eicher truck Pro 3019 can be specified on the basis of its engine performance and body configuration. The Pro 3019 truck comes with an E494, 4V CRS engine with powerful 4-cylinders, a displacement of 3760 cc producing a power of 180 HP and high-end torque of 600 Nm. A 6-speed gearbox is provided to control its power transmission. The Eicher 6 chakka truck has a common rail fuel injection system which runs on diesel fuel. The gradeability of this Pro 3019 truck is 25% and it follows the BS6 emission norms. The variable vehicle configuration of this Eicher Pro 6019 truck are cowl with chassis cabin with chassis and cabin with load body. The load body may be a high-side deck or maybe a container. You will get a manual tiltable sleeper cabin for this cargo Eicher truck. The front suspension comes with parabolic leaf springs while semi-elliptical leaf springs are provided in the rear suspension along with a front anti-roll bar. It provides a ground clearance of 258 mm.

Frequently Asked Questions on Eicher Pro 3019 Truck

Eicher 3019 price starts at Rs 30.97 to 34.33 lakh. The 2024 price of Eicher 6 wheeler 3019 can vary slightly from state to state and city to city.
The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of 3019 Eicher 6 tyre is expected to be around Rs 5354 for a 5 year period
GVW of 6 wheeler Eicher 3019 is 18500 Kg.
6 tyre 3019 Eicher comes with 4 cylinder E494, 4V CRS engine and the engine displacement is 3760 cc.
In terms of performance, Eicher 3019 produces a maximum power of 180 HP and a maximum torque of 600 Nm.
6 wheeler Eicher 3019 comes with a 6 speed transmission along with a 362 mm dia clutch.
3019 Eicher 6 wheeler comes with diesel fuel option and its fuel tank capacity is diesel: 190/425 litres Ad Blue: 27 litres, Polymer tank.
The tyre size of 6 tyre 3019 is 295/90R20 6+1 tyres.
Eicher 3019 comes with air brakes with APDA unit.
Gradeability of any truck defines its ability to climb upward slopes. The gradeability of 6 tyre 3019 Eicher is 25%.
