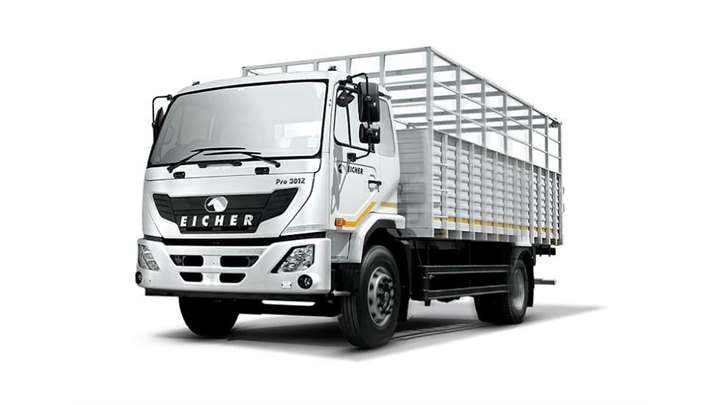

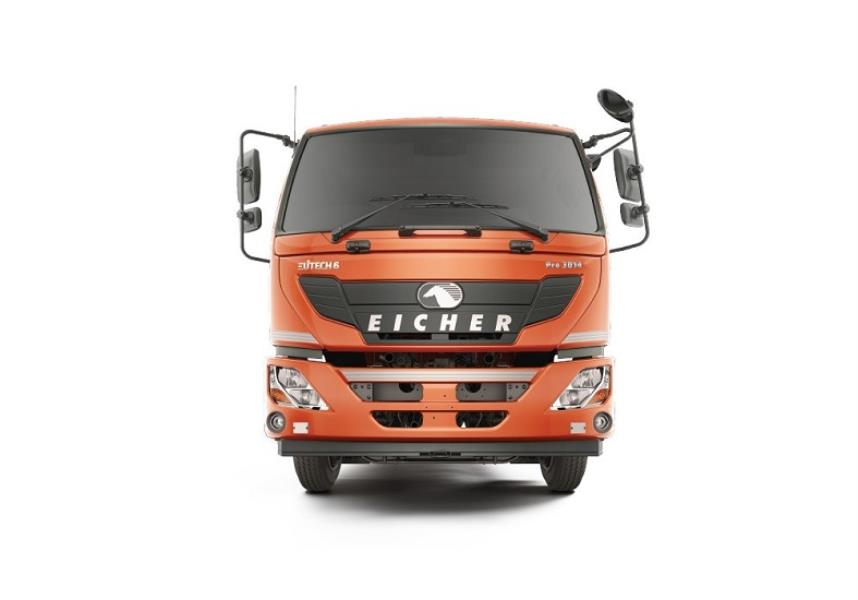

Eicher Pro 3014 CNG BS6 truck specifications

Name: Eicher Pro 3014 CNG
Brand: Eicher
SKU: P-N-tEvlm4

Rate This Vehicle

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers for this month

Download Eicher Pro 3014 CNG Truck Brochure

Check out the Eicher Pro 3014 CNG Truck PDF brochure at TrucksBuses.com with all features and specifications.

Key Details of Eicher Pro 3014 CNG Truck

Power

147

GVW

14052 Kg

Fuel

CNG

Engine

3760 cc

Cylinders

Key Specifications of Eicher Pro 3014 CNG Truck

Engine
Configuration

Engine
E494 CRS 4 cyl 4 valve
Water cooled, TCIC
Engine Displacement
3760 cc
Engine Cylinders
4
Power
147 HP@2400 rpm
Torque
450 Nm @ 1400-1800 rpm
Clutch
330 mm dia
With clutch booster
Transmission
7 speed manual (7F+1R)
Hybrid gear shift lever
Gearbox
Eicher 5M72N
Gradeability
26%
Emission Norms Compliance
BS6
Fuel Type
CNG
Fuel Tank Capacity
250 / 430 Litres (17 ft body)
500 Litres (20 ft body)
Electricals Battery
12V, 100 Ah

GVW
14052 Kg
Vehicle Configuration
Cabin and chassis
Cabin with load body
Loading Span
17.2 ft
20 ft

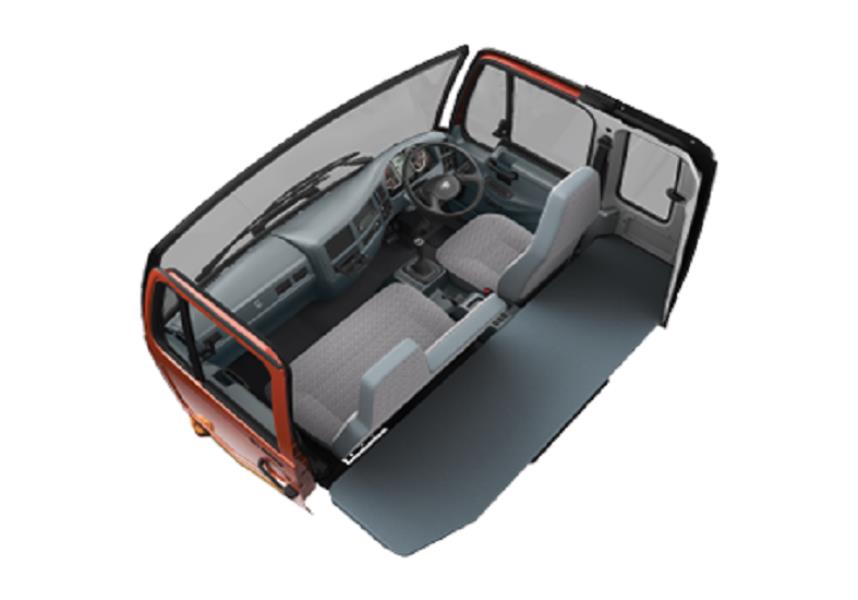

Cabin Type
Day cab with rest kit option
Sleeper cabin (Optional)
Cabin Tilt mechanism
Manually tiltable
Chassis Frame
Domex frame
Axle Configuration
4x2
Front Axle
Forged I Beam, Reverse Elliot Type
Rear Axle
Banjo type, hypoid gears
Front Suspension
Parabolic leaf spring
With telescopic shock absorbers
Rear Suspension
Semi-elliptical leaf springs
With helper leaf springs
Anti Roll Bar
Front only
Tyres
8.25R20-16 PR
Radial tyres
6+1 tyres
Wheelbase
3800 mm
4300 mm
Turning Circle Diameter
15.3 m (3800 wb)
Ground Clearance
220 mm
Load Body Width
2125 mm
Front Overhang
1300 mm
Front Track
1800 mm
Rear Track
1680 mm
Chassis Depth
210 mm
Chassis Flange width
76 mm
Chassis Thickness
6 mm

Eicher Pro 3014 CNG Truck Specification Highlights

Explore some of the latest Eicher Pro 3014 CNG truck specifications. The Eicher Pro 6 chakka truck has an E494 engine, with an engine displacement of 3760 cc which generates a power of 147 horsepower and maximum torque of 450 Nm. New Eicher Pro 6-wheeler truck GVM is 14.05 tonnes. The Eicher 3014 truck has a fuel tank capacity of 500 litres for 20 feet body. The Pro 3014 CNG cargo truck has a 7-speed manual gearbox with a hybrid gear shift lever. Latest specifications of the Eicher Pro truck are a day cabin with a rest kit option and a suspension of parabolic leaf spring with telescopic shock absorbers. You can also check the other specs such as cabin type, axle configuration and loading span in the table above.

Eicher Pro 3014 CNG Truck Brochure

Download Eicher Pro 3014 CNG Truck brochure online. Check out the Eicher Pro 3014 CNG Truck PDF brochure at TrucksBuses.com with all features and specifications.

Frequently Asked Questions on Eicher Pro 3014 CNG Truck

What is Eicher Pro 3014 CNG power and torque ?

In terms of performance, Eicher Pro 3014 CNG produces a maximum power of 147 HP@2400 rpm and a maximum torque of 450 Nm @ 1400-1800 rpm

What is the Eicher Pro 3014 CNG GVW tonnage capacity ?

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Eicher Pro 3014 CNG GVW is 14052 Kg

What is Eicher Pro 3014 CNG gradeability ?

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Eicher Pro 3014 CNG is 26%.

What is Eicher Pro 3014 CNG tyre size and number of wheels in this truck ?

The tyre size of Eicher Pro 3014 CNG is 8.25R20-16 PR# Radial tyres# 6+1 tyres

What is the type of brakes offered in Eicher Pro 3014 CNG ?

Eicher Pro 3014 CNG comes with Air brakes# With APDA unit

What is the engine capacity of Eicher Pro 3014 CNG ?

Eicher Pro 3014 CNG comes with 4 cylinder E494 CRS 4 cyl 4 valve# Water cooled, TCIC engine and the engine displacement is 3760 cc

What is the gearbox and transmission type in Eicher Pro 3014 CNG ?

Eicher Pro 3014 CNG comes with a 7 speed manual (7F+1R)# Hybrid gear shift lever transmission along with a 330 mm dia# With clutch booster clutch

What is the fuel tank capacity of Eicher Pro 3014 CNG ?

Eicher Pro 3014 CNG comes with CNG fuel option and its fuel tank capacity is 250 / 430 Litres (17 ft body)# 500 Litres (20 ft body)

What is the EMI of Eicher Pro 3014 CNG ?

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Eicher Pro 3014 CNG is expected to be around Rs Not Available for a 5 year period
