Ashok Leyland Ecomet 1415 Star CNG truck specifications

Name: Ashok Leyland Ecomet 1415 Star CNG
Brand: Ashok Leyland
SKU: TBN-20-F8E5DF

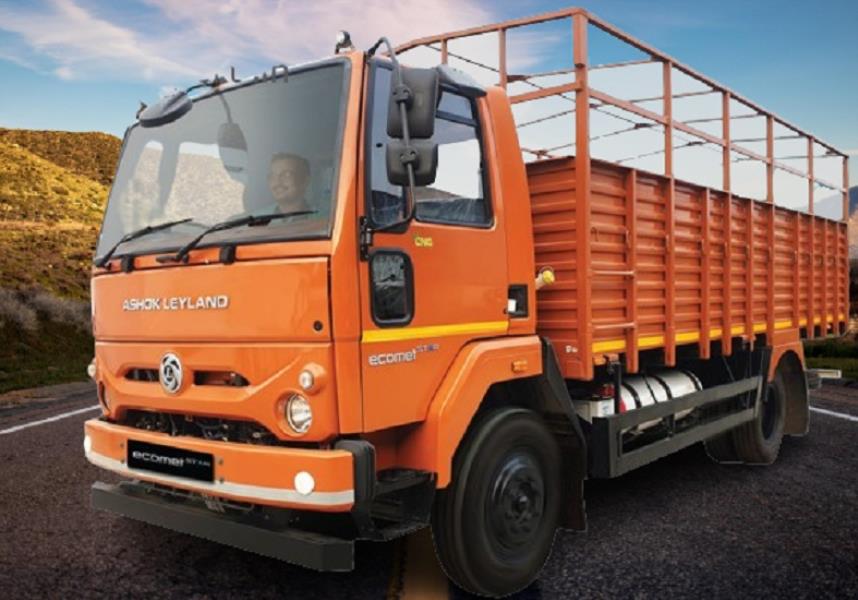

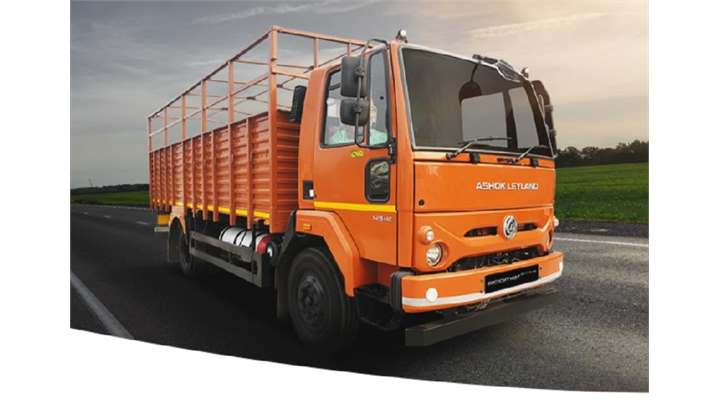

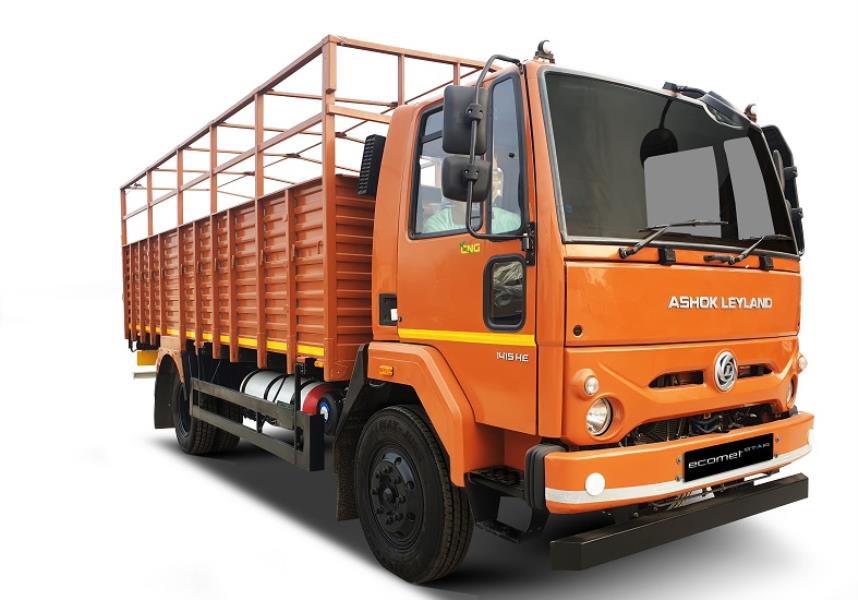

Ashok Leyland Ecomet 1415 Star CNG Truck Images

Rate This Vehicle

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers for this month

Download Ashok Leyland Ecomet 1415 Star CNG Truck Brochure

Check out the Ashok Leyland Ecomet 1415 Star CNG Truck PDF brochure at TrucksBuses.com with all features and specifications.

Key Details of Ashok Leyland Ecomet 1415 Star CNG Truck

Power

144

GVW

14250 Kg

Fuel

CNG

Engine

3839 cc

Cylinders

Key Specifications of Ashok Leyland Ecomet 1415 Star CNG Truck

Engine
Configuration

Engine
H4 3.8L TCIC
Fuel Injection System
Common Rail
Engine Displacement
3839 cc
Engine Cylinders
4
Power
144 HP@2400 rpm
Torque
450 Nm@1200-2000 rpm
Clutch

330 mm dia
With clutch booster
Unilever clutch actuation
Transmission
6 speed (6F+1R)
With cable shift
Gearbox
ZF6S36 Overdrive
Max Speed
80 Kmph
Emission Norms Compliance
BS6
Fuel Type
CNG
Fuel Tank Capacity
360 / 480 / 570 Litres
Electricals Battery
12V, 120 Ah
Alternator: 90 Amps

GVW
14250 Kg
Vehicle Configuration
Cabin and chassis
Cabin with load body
Load Body Options
Fixed Side Deck
Drop Side Deck
High Side Deck
Loading Span
17 ft
19 ft
20 ft
22 ft
24 ft
Cabin Type
Day cab
Cabin Tilt mechanism
Manually tiltable
Chassis Frame
Bolted ladder type
BSK 46
Axle Configuration
4x2
Front Axle
Forged I Beam, Reverse Elliot Type
Rear Axle
Fully floating single speed
Hypoid axle
Front Suspension
Semi elliptical leaf springs
Rear Suspension
Semi elliptical leaf springs
Tyres
8.25R20 - 16 PR
6+1 tyres
Wheelbase
3970 mm
4200 mm
4750 mm
5200 mm
Turning Circle Diameter
14.7 m (17 ft body)
17 m (19/20 ft)
18.5 m (22 ft)
19.1 m (24 ft)
Ground Clearance
232 mm
Overall Length
7088 mm (17 ft)
7663 mm (19 ft)
8058 mm (20 ft)
8558 mm (22 ft)
9393 mm (24 ft)
Overall Width
2390 mm (body)
Overall Height
3080 mm
Front Track
1946 mm
Rear Track
1670 mm
Chassis Depth
204 mm
Chassis Flange width
76 mm
Chassis Thickness
6 mm

Ashok Leyland Ecomet 1415 Star CNG Truck Specification Highlights

Check all the Ashok Leyland Ecomet 1415 Star CNG specifications on TrucksBuses in the table above The main driveline of this Ashok Leyland truck includes a 3839 cc 4 cylinder engine that produces a maximum power of 144 HP and a torque of 450 Nm It gets mated to 6 speed (6F+1R), With cable shift, ZF6S36 Overdrive gearbox A gross weight of 14250 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Ashok Leyland truck for enhancing driver comfort Other Ashok Leyland Ecomet 1415 Star CNG truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.

Ashok Leyland Ecomet 1415 Star CNG Truck Brochure

Download Ashok Leyland Ecomet 1415 Star CNG Truck brochure online. Check out the Ashok Leyland Ecomet 1415 Star CNG Truck PDF brochure at TrucksBuses.com with all features and specifications.

Frequently Asked Questions on Ashok Leyland Ecomet 1415 Star CNG Truck

What is the Ashok Leyland Ecomet 1415 Star CNG GVW tonnage capacity ?

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Ashok Leyland Ecomet 1415 Star CNG GVW is 14250 Kg

What is the engine capacity of Ashok Leyland Ecomet 1415 Star CNG ?

Ashok Leyland Ecomet 1415 Star CNG comes with 4 cylinder H4 3.8L TCIC engine and the engine displacement is 3839 cc

What is Ashok Leyland Ecomet 1415 Star CNG power and torque ?

In terms of performance, Ashok Leyland Ecomet 1415 Star CNG produces a maximum power of 144 HP@2400 rpm and a maximum torque of 450 Nm@1200-2000 rpm

What is the gearbox and transmission type in Ashok Leyland Ecomet 1415 Star CNG ?

Ashok Leyland Ecomet 1415 Star CNG comes with a 6 speed (6F+1R)# With cable shift transmission along with a #330 mm dia# With clutch booster# Unilever clutch actuation clutch

What is the fuel tank capacity of Ashok Leyland Ecomet 1415 Star CNG ?

Ashok Leyland Ecomet 1415 Star CNG comes with CNG fuel option and its fuel tank capacity is 360 / 480 / 570 Litres

Ashok Leyland Ecomet 1415 Star CNG is available in which all body options ?

Ashok Leyland Ecomet 1415 Star CNG is available in multiple body options of 7088 mm (17 ft)# 7663 mm (19 ft)# 8058 mm (20 ft)# 8558 mm (22 ft)# 9393 mm (24 ft)

What is the EMI of Ashok Leyland Ecomet 1415 Star CNG ?

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Ashok Leyland Ecomet 1415 Star CNG is expected to be around Rs Not Available for a 5 year period
