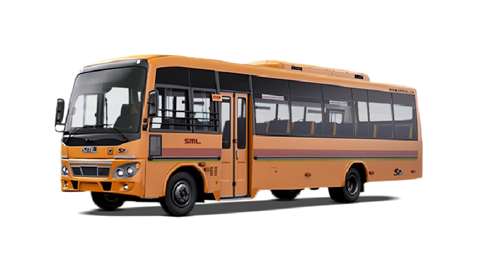

SML Isuzu S7 School 3335: 22 / 30 / 36 Seater Bus Specifications

From ₹ 18.63 Lakh* Onwards
*Ex-showroom Price

 Don't miss out on the best discount offers for this month

Key Details of SML Isuzu S7 School 3335: 22 / 30 / 36 Seater Bus

Power
100
Fuel
Diesel
Engine
3455 cc
Cylinders
4

Key Specifications of SML Isuzu S7 School 3335: 22 / 30 / 36 Seater Bus

  • Engine
    SLT6 CRDI TCIC
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    3455 cc
  • Engine Cylinders
    4
  • Engine Location
    Front
  • Power
    100 HP@2600 rpm
  • Torque
    310 Nm@1400-1600 rpm
  • Clutch
    Dry single plate
  • Transmission
    5 speed (5F+1R)
  • Gearbox
    Synchromesh
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Seating Layout
    2x2
    3x2
    3x3
    2x1
  • Seating Capacity
    22+D (2x2)
    30+D (3x2)
    36+D (3x3)
    15+D (2x1 reclining)
  • Passenger Door Type
    Jack-knife type
  • Floor Type
    Anti-skid flooring
  • Chassis Frame
    Box type
  • Axle Configuration
    4x2
  • Front Axle
    Forged I section, Reverse Elliot type
  • Front Suspension
    Semi elliptical leaf springs
  • Rear Suspension
    Semi elliptical leaf springs
  • Tyres
    7.50x16 - 16PR
    6+1 tyres
  • Wheelbase
    3335 mm
  • Overall Length
    6515 mm
  • Overall Width
    2262 mm
  • Front Track
    1674 mm
  • Rear Track
    1486 mm

SML Isuzu S7 School 3335: 22 / 30 / 36 Seater Bus Specification Highlights

Check all the SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus specifications here on TrucksBuses Gearbox matched with this engine is 5 speed (5F+1R) For the comfortable journeys, semi elliptical leaf springs in front and semi elliptical leaf springs in rear does the duty in this SML Isuzu bus Other SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus specifications like chassis, tyre, body width, turning circle dia, engine cc are available here in the tables on this page.

Frequently Asked Questions on SML Isuzu S7 School 3335: 22 / 30 / 36 Seater Bus

In terms of performance, SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus produces a maximum power of 100 HP@2600 rpm and a maximum torque of 310 Nm@1400-1600 rpm
SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus comes with a 5 speed (5F+1R) transmission
SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus comes with Diesel fuel option and its fuel tank capacity is
The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus is expected to be around Rs 39583 for a 5 year period
SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus price starts from Rs 18.63 Lakh* Onwards. The 2023 price of SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus can vary slightly from state to state and city to city.
SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus can be purchased in multiple seating options depending on requirement. The seating capacity of SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus is 22+D (2x2)# 30+D (3x2)# 36+D (3x3)# 15+D (2x1 reclining) seats
SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus comes with 4 cylinder SLT6 CRDI TCIC engine and the engine displacement is 3455 cc
SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus comes with Hydraulic brakes
The tyre size of SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus is 7.50x16 - 16PR# 6+1 tyres
SML Isuzu S7 School 3335: 22 / 30 / 36 Seater bus comes with a standard warranty of 3 Years Unlimited Km on engine and gearbox#1 year on vehicle
