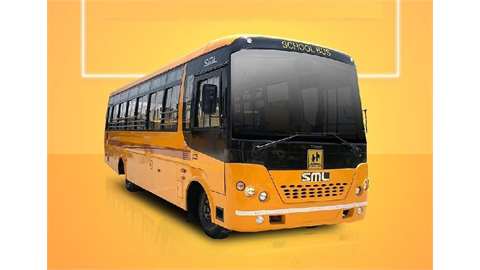

SML Isuzu BH School Bus 5100 : 40 / 52 Seater Images SML Isuzu BH School Bus 5100 : 40 / 52 Seater Images SML Isuzu BH School Bus 5100 : 40 / 52 Seater Images SML Isuzu BH School Bus 5100 : 40 / 52 Seater Images SML Isuzu BH School Bus 5100 : 40 / 52 Seater Images
SML Isuzu BH School Bus 5100 : 40 / 52 Seater Images
SML Isuzu BH School Bus 5100 : 40 / 52 Seater Images
SML Isuzu BH School Bus 5100 : 40 / 52 Seater Images
SML Isuzu BH School Bus 5100 : 40 / 52 Seater Images
SML Isuzu BH School Bus 5100 : 40 / 52 Seater Images

SML Isuzu BH School Bus 5100 : 40 / 52 Seater Specifications

Rate This Vehicle
Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on SML Isuzu BH School Bus 5100 : 40 / 52 Seater for this month

SML Isuzu BH School Bus 5100 : 40 / 52 Seater - 6 Wheeler Bus Highlights

Power

SML Isuzu BH School Bus 5100 : 40 / 52 Seater Power

100
GVW

SML Isuzu BH School Bus 5100 : 40 / 52 Seater GVW

Kg
Fuel

SML Isuzu BH School Bus 5100 : 40 / 52 Seater Fuel

Diesel
Engine

SML Isuzu BH School Bus 5100 : 40 / 52 Seater Engine

3455 cc
Cylinders

SML Isuzu BH School Bus 5100 : 40 / 52 Seater Cylinders

4
Trucksbuses.com
Trucksbuses.com

Key Specifications of SML Isuzu BH School Bus 5100 : 40 / 52 Seater

  • Engine
    SLT6 CRDI TCIC
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    3455 cc
  • Engine Cylinders
    4
  • Engine Location
    Front
  • Power
    100 HP @ 2600 rpm
  • Torque
    310 Nm @ 1600 rpm
  • Clutch
    Single plate, hydraulically actuated
  • Transmission
    5 speed manual (5F+1R)
  • Gearbox
    Synchromesh
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    90 Litres (Diesel)
    15 Litres (Ad-Blue)
  • Electricals Battery
    12V, 70 Ah
  • Seating Layout
    2x2
    3x2
  • Seating Capacity
    40+D (2x2); 52+D (3x2)
  • Passenger Door Type
    Jack-knife type
  • Floor Type
    Anti-skid flooring
  • Chassis Frame
    Box type
  • Front Axle
    Forged I section, Reverse Elliot type
  • Front Suspension
    Semi elliptical leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Semi elliptical leaf springs
    With telescopic shock absorbers
  • Anti Roll Bar
    Yes
  • Tyres
    8.25x16
    6+1 tyres
  • Wheelbase
    5100 mm
  • Turning Circle Diameter
    19 m
  • Ground Clearance
    228 mm
  • Overall Length
    9280 mm
  • Overall Width
    2262 mm
  • Overall Height
    2860 mm

SML Isuzu BH School Bus 5100 : 40 / 52 Seater Specification Highlights

Check out some of the latest specifications of SML Isuzu BH School Bus 5100. The brand new Isuzu BH School Bus 5100 is equipped with an SLT6 CRDI TCIC engine with an engine displacement of 3455 cc, with a power of 100 horsepower and torque of 310 Nm. Latest SML Isuzu 40 / 52-seaters school bus has a 5-speed transmission with a synchromesh gearbox with a single clutch plate diaphragm hydraulically acutuated. The SML Isuzu BH 5100 school bus has a diesel fuel tank capacity of 90 litres. In the above section, you can also check the other specs such as cabin type, axle configuration and loading span.

Frequently Asked Questions on SML Isuzu BH School Bus 5100 : 40 / 52 Seater

SML Isuzu BH School Bus 5100 : 40 / 52 Seater bus comes with Air brakes#With auto slack adjuster

SML Isuzu BH School Bus 5100 : 40 / 52 Seater bus comes with Diesel fuel option and its fuel tank capacity is 90 Litres (Diesel)#15 Litres (Ad-Blue)

The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of SML Isuzu BH School Bus 5100 : 40 / 52 Seater bus is expected to be around Rs Not Available for a 5 year period

The tyre size of SML Isuzu BH School Bus 5100 : 40 / 52 Seater bus is 8.25x16#6+1 tyres

SML Isuzu BH School Bus 5100 : 40 / 52 Seater bus comes with a standard warranty of 3 Years/Unlimited Km on engine and gearbox#1 year on vehicle

SML Isuzu BH School Bus 5100 : 40 / 52 Seater bus can be purchased in multiple seating options depending on requirement. The seating capacity of SML Isuzu BH School Bus 5100 : 40 / 52 Seater bus is 40+D (2x2); 52+D (3x2) seats

SML Isuzu BH School Bus 5100 : 40 / 52 Seater bus comes with 4 cylinder SLT6 CRDI TCIC engine and the engine displacement is 3455 cc

In terms of performance, SML Isuzu BH School Bus 5100 : 40 / 52 Seater bus produces a maximum power of 100 HP @ 2600 rpm and a maximum torque of 310 Nm @ 1600 rpm

SML Isuzu BH School Bus 5100 : 40 / 52 Seater bus comes with a 5 speed manual (5F+1R) transmission
