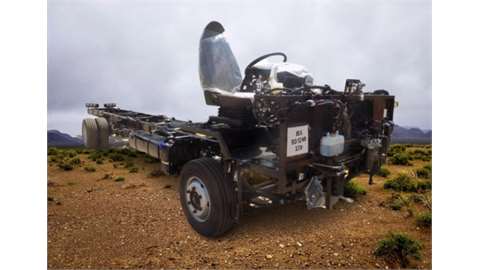

Tata LP 710/45 Bus Chassis Specifications

From ₹ 15.74 Lakh* Onwards
*Ex-showroom Price

 Don't miss out on the best discount offers for this month

Key Details of Tata LP 710/45 Bus Chassis

Power
99
GVW
8000 Kg
Fuel
Diesel
Engine
2956 cc
Cylinders
4

Key Specifications of Tata LP 710/45 Bus Chassis

  • Engine
    4SP CR
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    2956 cc
  • Engine Cylinders
    4
  • Engine Location
    Front
  • Power
    99 HP@2800 rpm
  • Torque
    300 Nm@1400-2200 rpm
  • Clutch
    280 mm dia
  • Transmission
    5 speed (5F+1R)
  • Gearbox
    GB 400
    Cable Shift
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    120 Litres
  • Electricals Battery
    12V-100 Ah, 75 Amp
  • GVW
    8000 Kg
  • Overall Length
    8630 mm
  • Vehicle Configuration
    Chassis without face-cowl
  • Chassis Frame
    Ladder type
  • Axle Configuration
    4x2
  • Front Suspension
    Parabolic leaf springs
  • Rear Suspension
    Parabolic leaf springs
  • Tyres
    225/75 R17.5
    Tubeless radial
  • Wheelbase
    4500 mm
  • Turning Circle Diameter
    14.6 m
  • Front Overhang
    1430 mm
  • Rear Overhang
    2700 mm

Tata LP 710/45 Bus Chassis Specification Highlights

Check all the Tata LP 710/45 bus specifications here on TrucksBuses The main driveline of this Tata bus chassis includes a 4 cylinder 4SP CR engine that produces a maximum power of 99 HP and a torque of 300 Nm Gearbox matched with this engine is 5 speed (5F+1R)Tata LP 710/45 bus comes with a gross vehicle weight of 8000 kg and offers length of 8630 mm For the comfortable journeys, parabolic leaf springs in front and parabolic leaf springs in rear does the duty in this Tata bus chassis Other Tata LP 710/45 bus specifications like chassis, width, tyre, turning circle dia are available here in the tables on this page.

Frequently Asked Questions on Tata LP 710/45 Bus Chassis

Tata LP 710/45 bus chassis price starts from Rs 15.74 Lakh* Onwards. The 2023 price of Tata LP 710/45 bus chassis can vary slightly from state to state and city to city.
Tata LP 710/45 bus GVW is 8000 Kg
Tata LP 710/45 bus chassis can accomodate multiple seating options depending on the exact requirement. Tata LP 710/45 bus chassis seating capacity will depend on the type of body being made and the application it is going to be used for like staff application, school, route permit etc, with each offering a different number of seats.
In terms of performance, Tata LP 710/45 bus chassis produces a maximum power of 99 HP@2800 rpm and a maximum torque of 300 Nm@1400-2200 rpm
Tata LP 710/45 bus comes with a 5 speed (5F+1R) transmission
Tata LP 710/45 bus comes with Diesel fuel option and its fuel tank capacity is 120 Litres
The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer, loan tenure and the body funding availed. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata LP 710/45 bus is expected to be around Rs 33443 for a 5 year period
The tyre size of Tata LP 710/45 bus is 225/75 R17.5# Tubeless radial
