Commercial Vehicles in India

  • Tata LP 712 Bus Chassis

Quick Search

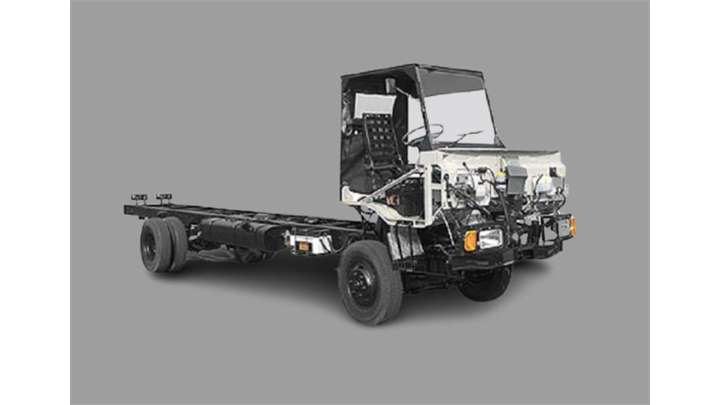

Overview of Tata LP 712

Overall Length
  • 7142 mm (3800 wb)
  • 7762 mm (4200 wb)
Engine 497 TCIC CRDI
Power (Max.) 123 HP@2400 rpm
Torque (Max.) 400 Nm@1300-1500 rpm
GVW 7490 Kg
Possible Number of seats
  • Staff: 32+D (2x2)
  • School: 36+D (2x2)
  • School: 40+D (3x2)
Suitable Applications School, staff, tourist and city bus
Warranty 3 Years / 3 Lakh Km on driveline
Service Interval
  • 20,000 Km (Short route)
  • 40,000 Km (Long route)

Engine & Performance of Tata LP 712

Engine 497 TCIC CRDI
Fuel Injection System Common Rail
Engine Displacement 3783 cc
Engine Cylinders 4
Engine Location Front
Power (Max.) 123 HP@2400 rpm
Torque (Max.) 400 Nm@1300-1500 rpm
Clutch
  • 310 mm dia
  • With clutch booster
Transmission 6 speed manual (6F+1R)
Gearbox GBS 550 with cable shift
Max Speed 110 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 160 Litres
Electricals/Battery
  • 12V, 150 Ah
  • 65 Amps

Design & Configuration of Tata LP 712

GVW 7490 Kg
Overall Length
  • 7142 mm (3800 wb)
  • 7762 mm (4200 wb)
Max Width 2168 mm
Possible Number of seats
  • Staff: 32+D (2x2)
  • School: 36+D (2x2)
  • School: 40+D (3x2)
Vehicle Configuration Chassis without face-cowl
Axle Configuration 4X2
Rear Axle Single speed Hypoid gears
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Anti-Roll Bar Front and Rear
Tyres
  • 7.50x16 - 16PR
  • 6 tyre vehicle
Wheelbase
  • 3800 mm
  • 4200 mm
Turning Circle Diameter 12.3 m
Ground Clearance 210 mm
Front Overhang 1175 mm (3800 wb) 1292 mm (4200 wb)
Rear Overhang 2050 mm (3800 wb) 2270 mm (4200 wb)
Front Track 1650 mm
Rear Track 1587 mm

Features & Comfort in Tata LP 712

Driver Seat Type 4 way adjustable
Steering Type Power Steering
Steering Adjustment Rigid
Instrument cluster
  • Analog
  • With LED display
Automatic Transmission No

Safety in Tata LP 712

Service Brakes Air brakes
ABS Yes
Anti-Roll Bar Front and Rear
Tubeless Tyres No
Retarder No
