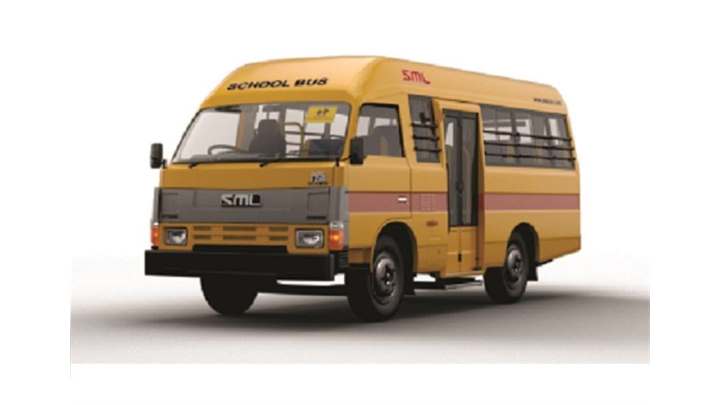

SML Isuzu EcoMax LR 2815 : 19+D Bus Images
SML Isuzu EcoMax LR 2815 : 19+D Bus Images
SML Isuzu EcoMax LR 2815 : 19+D Bus Images
SML Isuzu EcoMax LR 2815 : 19+D Bus Images
SML Isuzu EcoMax LR 2815 : 19+D Bus Images

SML Isuzu EcoMax LR 2815 : 19+D Bus Specifications

Rate This Vehicle
Check Discount Offer Check On Road Price
 Don't miss out on the best discount offers for this month

Key Details of SML Isuzu EcoMax LR 2815 : 19+D Bus

Power
100
GVW
4500 Kg
Fuel
Diesel
Engine
3455 cc
Cylinders
4
Trucksbuses.com
Trucksbuses.com

Key Specifications of SML Isuzu EcoMax LR 2815 : 19+D Bus

  • Engine
    SLT6 CRDI TCIC
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    3455 cc
  • Engine Cylinders
    4
  • Engine Location
    Front
  • Power
    100 HP @ 2600 rpm
  • Torque
    310 Nm@1400-1600 rpm
  • Clutch
    260 mm dia
  • Transmission
    5 speed (5F+1R)
  • Gearbox
    Synchromesh
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    70 Litres
  • Electricals Battery
    12V, 120 Ah
  • GVW
    4500 Kg
  • Seating Layout
    2x2
  • Seating Capacity
    19+D
  • Passenger Door Type
    Jack-knife type
  • Floor Type
    Anti-skid flooring
  • Chassis Frame
    Box type
  • Axle Configuration
    4x2
  • Front Axle
    Forged I section, Reverse Elliot type
  • Front Suspension
    Semi elliptical leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Parabolic leaf springs
    With telescopic shock absorbers
  • Tyres
    7 R 16 - 12PR
    7.00x16 - 14PR (Optional)
    4+1 tyres
  • Wheelbase
    2815 mm
  • Turning Circle Diameter
    11 m
  • Ground Clearance
    206 mm
  • Overall Length
    5668 mm
  • Overall Width
    2000 mm
  • Overall Height
    2500 mm
  • Front Track
    1640 mm
  • Rear Track
    1486 mm

SML Isuzu EcoMax LR 2815 : 19+D Bus Specification Highlights

Check all the SML Isuzu EcoMax LR 2815 : 19+D bus specifications here on TrucksBuses Gearbox matched with this engine is 5 speed (5F+1R) SML Isuzu EcoMax LR 2815 : 19+D comes with a gross weight capacity of 4500 kg and length of 5668 mm For the comfortable journeys, semi elliptical leaf springs, with telescopic shock absorbers in front and parabolic leaf springs, with telescopic shock absorbers in rear does the duty in this SML Isuzu bus Other SML Isuzu EcoMax LR 2815 : 19+D bus specifications like chassis, tyre, body width, turning circle dia, engine cc are available here in the tables on this page.

Frequently Asked Questions on SML Isuzu EcoMax LR 2815 : 19+D Bus

SML Isuzu EcoMax LR 2815 : 19+D bus GVW is 4500 Kg
SML Isuzu EcoMax LR 2815 : 19+D bus can be purchased in multiple seating options depending on requirement. The seating capacity of SML Isuzu EcoMax LR 2815 : 19+D bus is 19+D seats
SML Isuzu EcoMax LR 2815 : 19+D bus comes with 4 cylinder SLT6 CRDI TCIC engine and the engine displacement is 3455 cc
SML Isuzu EcoMax LR 2815 : 19+D bus comes with a 5 speed (5F+1R) transmission
SML Isuzu EcoMax LR 2815 : 19+D bus comes with Diesel fuel option and its fuel tank capacity is 70 Litres
SML Isuzu EcoMax LR 2815 : 19+D bus comes with Hydraulic brakes# With auto slack adjuster
In terms of performance, SML Isuzu EcoMax LR 2815 : 19+D bus produces a maximum power of 100 HP @ 2600 rpm and a maximum torque of 310 Nm@1400-1600 rpm
The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of SML Isuzu EcoMax LR 2815 : 19+D bus is expected to be around Rs Not Available for a 5 year period
The tyre size of SML Isuzu EcoMax LR 2815 : 19+D bus is 7 R 16 - 12PR# 7.00x16 - 14PR (Optional)# 4+1 tyres
SML Isuzu EcoMax LR 2815 : 19+D bus comes with a standard warranty of 3 Years/Unlimited Km on engine and gearbox#2 years on vehicle
