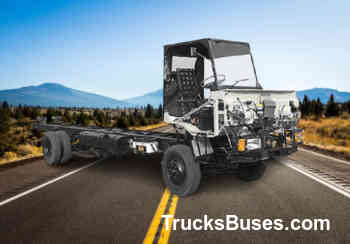

Overview of Tata LP 909

Overall Length 8912 mm
Engine 4SP CR
Power (Max.) 85 HP@2800 rpm
Torque (Max.) 250 Nm@1400-2000 rpm
GVW 9000 Kg
Possible Number of seats
  • Staff: 36+D (2x2)
  • School: 40+D (2x2)
  • School: 50+D (3x2)
Suitable Applications School, Staff
Warranty 3 Years / 3 Lakh Km on driveline
Service Interval 20,000 Km

Engine & Performance of Tata LP 909

Engine 4SP CR
Fuel Injection System Common Rail
Engine Displacement 2956 cc
Engine Cylinders 4
Engine Location Front
Power (Max.) 85 HP@2800 rpm
Torque (Max.) 250 Nm@1400-2000 rpm
Clutch 280 mm dia
Transmission 5 speed manual (5F+1R)
Gearbox GBS 27
Gradeability 25%
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 90 Litres
Electricals/Battery 12V-100Ah, 75 Amp

Design & Configuration of Tata LP 909

GVW 9000 Kg
Overall Length 8912 mm
Max Width 2168 mm
Possible Number of seats
  • Staff: 36+D (2x2)
  • School: 40+D (2x2)
  • School: 50+D (3x2)
Vehicle Configuration Chassis without face-cowl
Axle Configuration 4X2
Rear Axle Single speed Hypoid gears
Front Suspension
  • Parabolic leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Parabolic leaf springs
  • With telescopic shock absorbers
Anti-Roll Bar Front and Rear
Tyres
  • 7.50x16 - 16PR
  • 6 tyre vehicle
Wheelbase 4920 mm
Turning Circle Diameter 17.5 m
Ground Clearance 210 mm
Front Overhang 1292 mm
Rear Overhang 2700 mm
Front Track 1665 mm
Rear Track 1660 mm

Features & Comfort in Tata LP 909

Driver Seat Type 4 way adjustable
Steering Type Power Steering
Steering Adjustment Rigid
Instrument cluster
  • Analog
  • With LED display
Automatic Transmission No

Safety in Tata LP 909

Service Brakes Air brakes
ABS Yes
Anti-Roll Bar Front and Rear
Tubeless Tyres No
Retarder No
