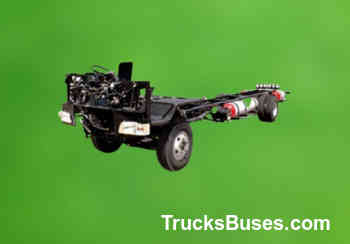

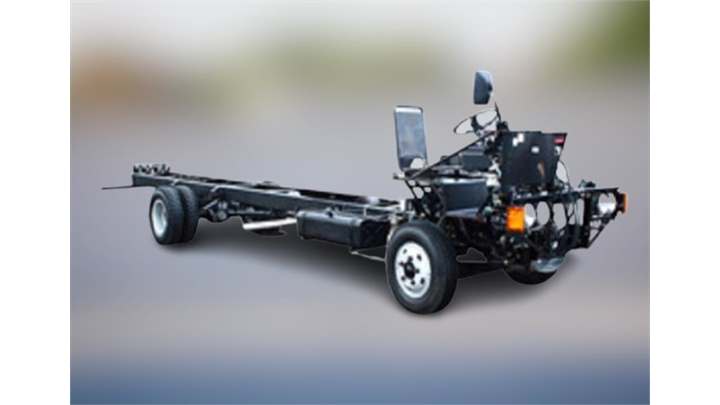

Overview of Eicher 10.90 L

Overall Length 9045 mm
Engine E483 TCI CRDI
Power (Max.) 107 HP@2600 rpm
Torque (Max.) 350 Nm@1200-1800 rpm
GVW 8850 Kg
Possible Number of seats
  • Staff: 40+D (2x2)
  • School: 40+D (2x2)
  • School: 50+D (3x2)
Suitable Applications Schools and colleges
Warranty 3 Years / Unlimited Km on engine and gearbox
Service Interval 40,000 Km

Engine & Performance of Eicher 10.90 L

Engine E483 TCI CRDI
Fuel Injection System Common Rail
Engine Displacement 3298 cc
Engine Cylinders 4
Engine Location Front
Power (Max.) 107 HP@2600 rpm
Torque (Max.) 350 Nm@1200-1800 rpm
Clutch
  • 310 mm dia
  • Organic
Transmission 5 speed manual (5F+1R)
Gearbox
  • ET35S5 Synchromesh
  • With cable type gear shift
Max Speed 85 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 100 Litres
Electricals/Battery
  • 12V, 130 Ah
  • 75 Amps

Design & Configuration of Eicher 10.90 L

GVW 8850 Kg
Overall Length 9045 mm
Possible Number of seats
  • Staff: 40+D (2x2)
  • School: 40+D (2x2)
  • School: 50+D (3x2)
Vehicle Configuration Chassis without face-cowl
Chassis Frame Ladder type modular frame
Axle Configuration 4x2
Rear Axle Fully floating Banjo type axle
Front Suspension Semi elliptical leaf springs
Rear Suspension Semi elliptical leaf springs
Anti-Roll Bar Rear only
Tyres
  • 8.25x16 - 16PR
  • 6+1 tyres
Wheelbase 5165 mm
Turning Circle Diameter 17.9 m
Ground Clearance 210 mm
Front Overhang 1005 mm
Rear Overhang 2875 mm
Front Track 1645 mm
Rear Track 1525 mm

Features & Comfort in Eicher 10.90 L

Driver Seat Type 4 way adjustable
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Instrument cluster
  • Analog
  • With LED display
Automatic Transmission No

Safety in Eicher 10.90 L

Service Brakes Air brakes
ABS Yes
Anti-Roll Bar Rear only
Tubeless Tyres No
Retarder No
