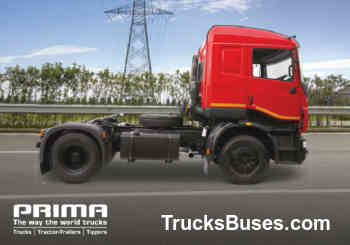

Overview of Tata Prima LX 4028.S SR

Gross Combination Weight (GCW) 40200 Kg
Axle Configuration 4x2
Engine
  • Cummins ISBe 270
  • Direct Injection, Turbo-charged
Power (Max.) 267 HP@2500 rpm
Torque (Max.) 970 Nm@1200-1700 rpm
Transmission 9 speed manual (8F+1CR+1R)
Warranty
  • 4 Years / 4 Lakh Km on driveline
  • 2 Years / 2 Lakh Km on vehicle

Engine & Performance of Tata Prima LX 4028.S SR

Engine
  • Cummins ISBe 270
  • Direct Injection, Turbo-charged
Fuel Injection System Common Rail
Engine Displacement 6700 cc
Engine Cylinders 6
Power (Max.) 267 HP@2500 rpm
Torque (Max.) 970 Nm@1200-1700 rpm
Clutch
  • Single dry plate, 430 mm dia
  • Organic
  • With Clutch Booster
Transmission 9 speed manual (8F+1CR+1R)
Gearbox
  • G 1150 with overdrive gear
  • 9F-Synchromesh
  • 1R- Constant mesh
Gradeability 17.92%
Max Speed 100 Kmph
Emission Norms Compliance BSIII
Fuel Type Diesel
Fuel Tank Capacity 400 Litres
Electricals / Battery 24 Volts

Design & Configuration of Tata Prima LX 4028.S SR

Gross Combination Weight (GCW) 40200 Kg
Kerb Weight 6790 Kg
Cabin Type Sleeper cabin with 4 point suspension
Cabin Tilt mechanism Hydraulically tiltable
Chassis Frame Channel section with cross members
Axle Configuration 4x2
Rear Axle
  • RA - 110 HR
  • RAR- 5.85
Front Suspension Parabolic leaf springs
Rear Suspension Semi-elliptical leaf springs
Tyres 10R20-16PR
Wheelbase 3460 mm
Turning Circle Diameter 12.9 m
Overall Length 5898 mm
Overall Width 2585 mm
Front Overhang 1482 mm
Chassis Depth 286 mm
Chassis Flange width 90 mm
Chassis Thickness 7 mm

Features & Comfort in Tata Prima LX 4028.S SR

Cabin Suspension Fully suspended
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type High headrest seat
Arm Rest Yes
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking
  • Telematics unit as standard fitment
  • Service activation (Optional)
Music System No
Automatic Transmission No
Cruise Control No
Additional Cup holder

Safety in Tata Prima LX 4028.S SR

Service Brakes Air Brakes, dual line
ABS Yes
Differential Lock No
Seat Belts Yes
Fog Light Provision
Tubeless Tyres No
