  • Eicher Pro 8049 (6X4)

Quick Search

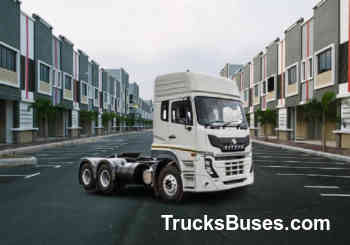

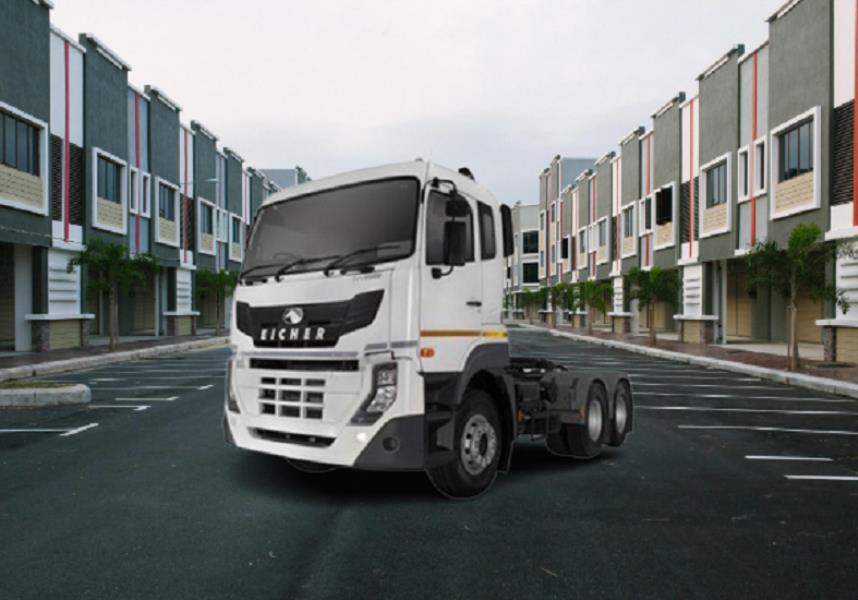

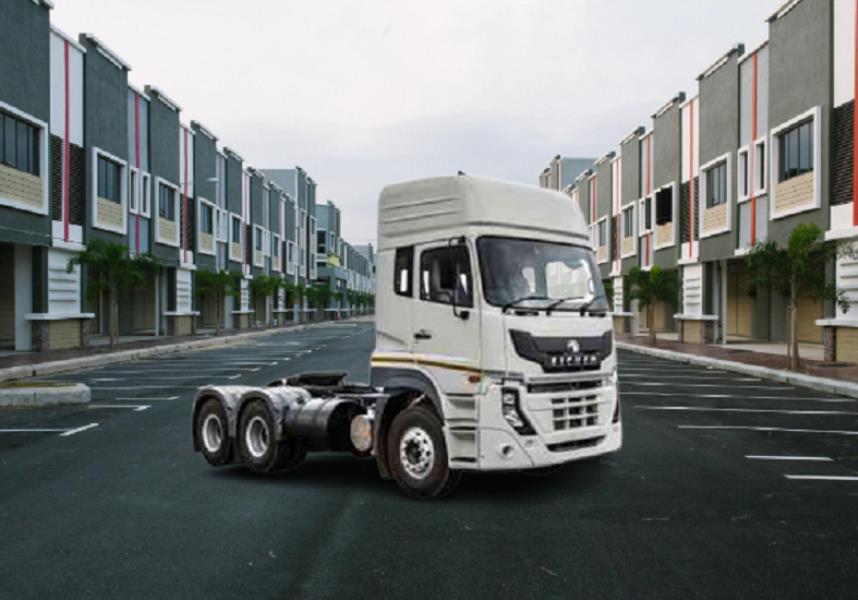

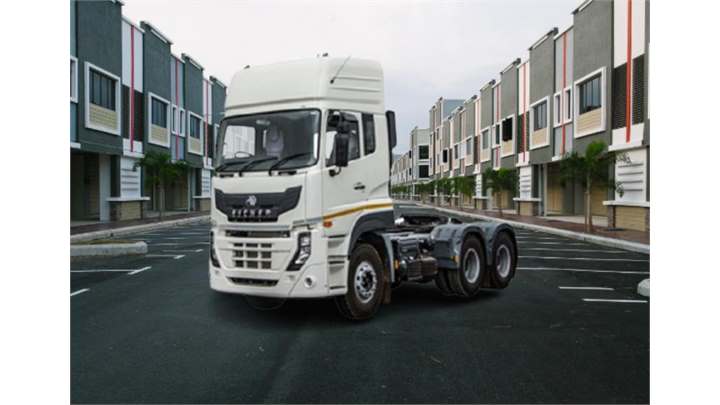

Overview of Eicher Pro 8049 (6X4)

Gross Combination Weight (GCW) 49000 Kg
Axle Configuration 6x4
Engine
  • VEDX8 Inline with CRDi
  • SCR Technology
Power (Max.) 280 HP@2200 rpm
Torque (Max.) 1050 Nm@1100-1700 rpm
Transmission 9 speed manual (9F+ 1R)

Engine & Performance of Eicher Pro 8049 (6X4)

Engine
  • VEDX8 Inline with CRDi
  • SCR Technology
Fuel Injection System Common Rail
Engine Displacement 7698 cc
Engine Cylinders 6
Power (Max.) 280 HP@2200 rpm
Torque (Max.) 1050 Nm@1100-1700 rpm
Clutch
  • Single plate, Pull type
  • With clutch booster
Transmission 9 speed manual (9F+ 1R)
Gearbox Direct drive with oil cooler
Gradeability
  • 22.2% (Single Reduction)
  • 28% (Hub Reduction)
Max Speed
  • 92.4 Kmph (Single Reduction)
  • 74 Kmph (Hub Reduction)
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 405 Litres
Electricals / Battery 24V, 150 Ah
Additional
  • Fuel coaching for optimal fuel efficiency
  • Option of factory fitted PTO

Design & Configuration of Eicher Pro 8049 (6X4)

Gross Combination Weight (GCW) 49000 Kg
Kerb Weight 8770 Kg
Cabin Type
  • Sleeper cabin (standard roof)
  • Twin sleeper (high roof)
Cabin Tilt mechanism Hydraulically tiltable
Chassis Frame Rolled form
Axle Configuration 6x4
Front Axle Forged I Beam,Reverse Elliot Type
Rear Axle
  • Single Reduction RAR-5.14 (Standard)
  • Hub Reduction RAR-6.37 (Optional)
Front Suspension Parabolic leaf springs
Rear Suspension Bogie Suspension
Tyres 11R20-16PR
Wheelbase 4085 mm
Turning Circle Diameter 16 m
Ground Clearance 288 mm
Overall Length 7195 mm
Overall Width 2550 mm
Chassis Depth 300 mm
Chassis Flange width 90 mm
Chassis Thickness 7/8 mm (inner liner of 5 mm)

Features & Comfort in Eicher Pro 8049 (6X4)

Cabin Suspension Fully suspended
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type
  • 6 way adjustable
  • Mechanically Suspended
  • Air Suspended (Optional)
Air Conditioner (A/C)
  • Cooling (Standard)
  • HVAC (Optional)
Openable Quarter Ventilation Glass No
Instrument Cluster
  • Digital
  • With fuel coaching
Telematics / GPS Tracking
  • Yes
  • With driver authentication
Power Windows Optional
Music System Yes
Mobile Charging Point Yes
Bottle Holder Yes
Automatic Transmission No
Cruise Control Yes

Safety in Eicher Pro 8049 (6X4)

Service Brakes
  • Air Brakes, dual line
  • With auto adjuster
Parking Brakes Yes
Exhaust Brake Yes
ABS Yes
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light Yes
Tubeless Tyres No
