Commercial Vehicles in India

  • Eicher Pro 8025T

Quick Search

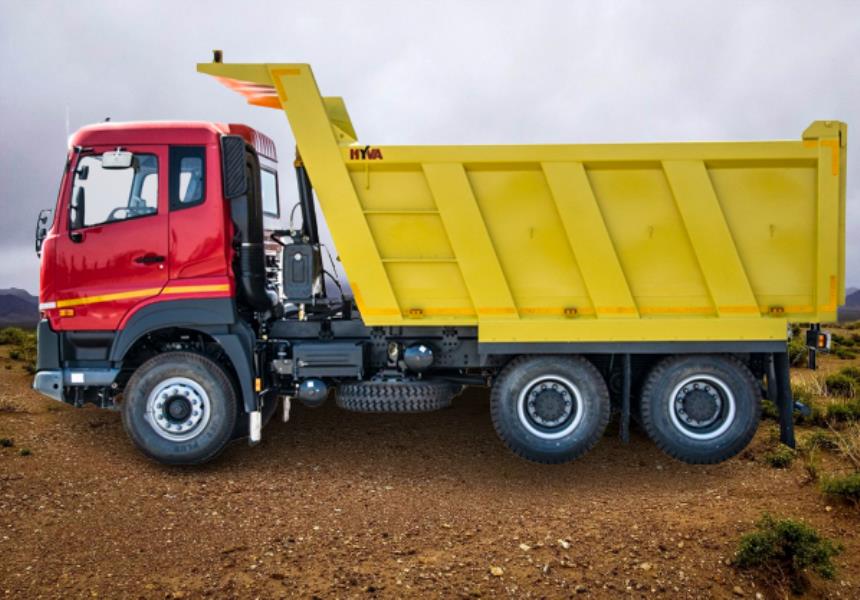

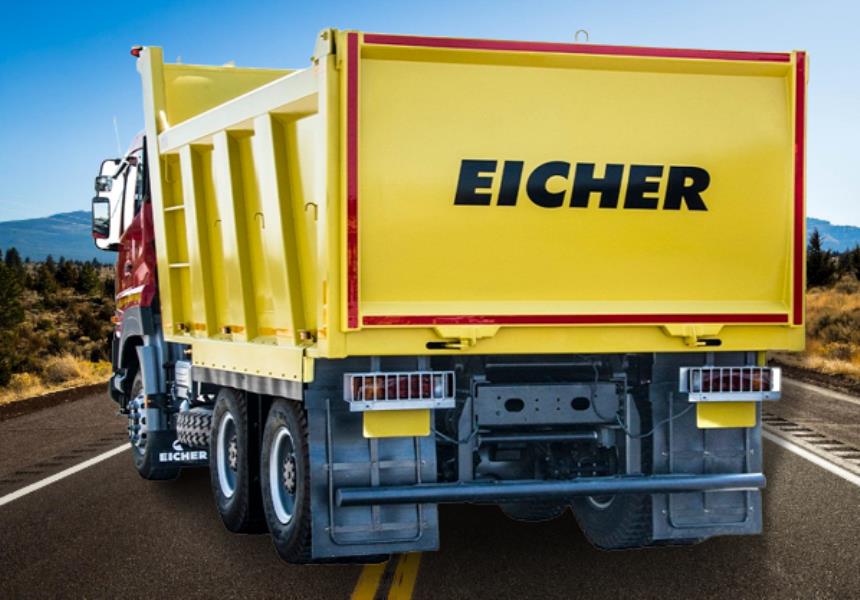

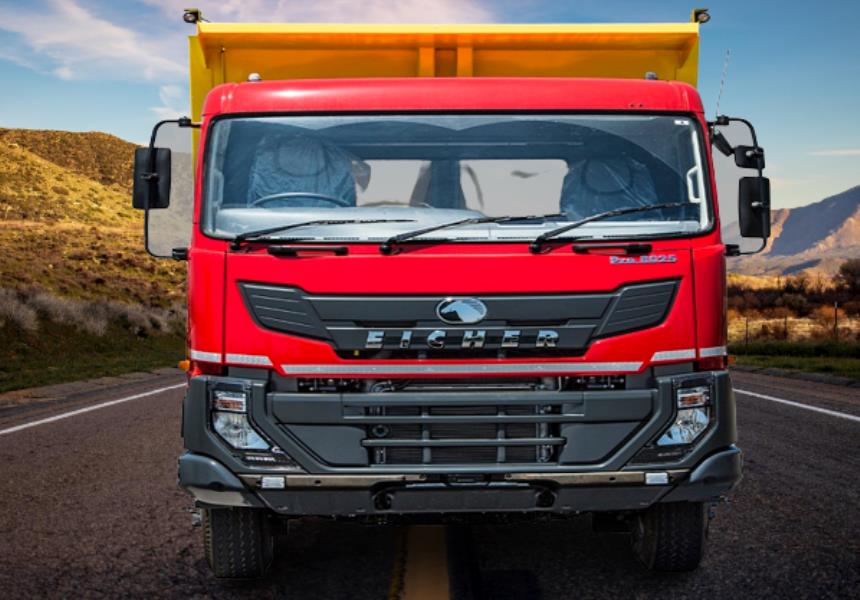

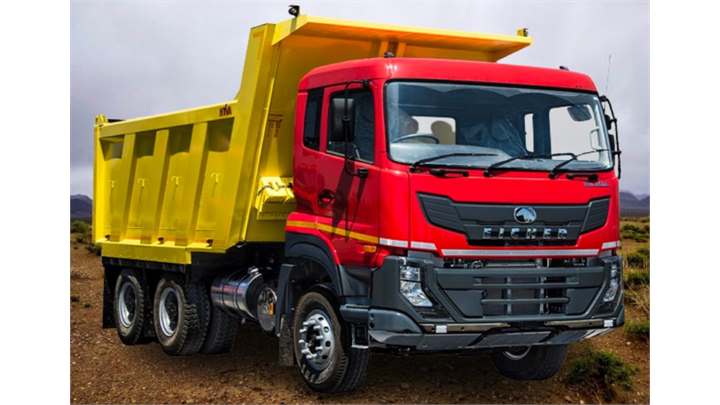

Overview of Eicher Pro 8025T

GVW 25000 Kg
Axle Configuration 6x4
Engine
  • VEDX8
  • SCR technology
Power (Max.) 280 HP@2200 rpm
Torque (Max.) 1050 Nm@1100-1700 rpm
Transmission 9 speed manual (9F+1R)
Vehicle Configuration
  • Cabin and chassis
  • Cabin with Box body
  • Cabin with Rock / Scoop body
Load Body Options
  • 16 Cu.M
  • 14 Cu.M
Warranty 2 Years / 6000 hrs
Additional Fuel coaching

Engine & Performance of Eicher Pro 8025T

Engine
  • VEDX8
  • SCR technology
Fuel Injection System Common rail
Engine Displacement 7700 cc
Engine Cylinders 6
Power (Max.) 280 HP@2200 rpm
Torque (Max.) 1050 Nm@1100-1700 rpm
Clutch
  • 420 mm dia
  • With clutch booster
Transmission 9 speed manual (9F+1R)
Gradeability
  • Hub Reduction: 53.6%
  • Single Reduction: 51.7%
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity
  • Diesel: 210 Litres
  • Ad-Blue Tank : 33 Litres
Electricals / Battery 24V, 150 Ah

Design & Configuration of Eicher Pro 8025T

GVW 25000 Kg
Vehicle Configuration
  • Cabin and chassis
  • Cabin with Box body
  • Cabin with Rock / Scoop body
Load Body Options
  • 16 Cu.M
  • 14 Cu.M
Cabin Type Sleeper Cab
Cabin Tilt mechanism Hydraulically tiltable
Chassis Frame Rolled form type
Axle Configuration 6x4
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle
  • Hub reduction axle
  • Single reduction (optional)
  • FDR : 5.79 (HR), 5.57 (SR)
Front Suspension Parabolic leaf springs
Rear Suspension Bogie suspension
Tyres
  • 11.00R20 -16 PR
  • Radial tyres
Wheelbase
  • 4085 mm
  • 4585 mm
Turning Circle Diameter
  • 14.9 m (4085 wb)
  • 16.7 m (4585 wb)
Ground Clearance
  • 288 mm (Hub Reduction)
  • 247 mm (Single Reduction)
Chassis Depth 300 mm
Chassis Flange width 90 mm
Chassis Thickness 8/7 mm

Features & Comfort in Eicher Pro 8025T

Cabin Suspension Fully Suspended
Steering Type Power steering
Steering Adjustment Tilt and telescopic
Driver Seat Type
  • 6 way adjustable
  • Mechanically Suspended (Standard)
  • Air Suspended (Optional)
Air Conditioner (A/C) Standard
Openable Quarter Ventilation Glass No
Instrument Cluster
  • Digital
  • With fuel coaching
Telematics / GPS Tracking Yes
Power Windows Optional
Music System Optional
Mobile Charging Point Yes
Bottle Holder Yes
Automatic Transmission No
Cruise Control Optional

Safety in Eicher Pro 8025T

Service Brakes Air Brakes
Parking Brakes Pneumatic hand operated
ABS Yes
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light Yes
Tubeless Tyres No
