Compare Eicher Pro 8025T vs Kamaz 6520 6x4
Compare eicher pro 8025t vs kamaz 6520

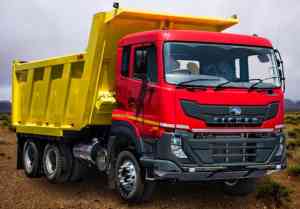

Eicher Pro 8025T
Kamaz 6520 6x4
Overviewof
| GVW (Kg) |
25000 Kg |
25000 Kg |
|
| Axle Configuration |
6x4 |
6x4 |
|
| Engine |
VEDX8
SCR technology |
Kamaz 740.61.320 |
|
| Power |
280 HP@2200 rpm |
316 HP@1900 rpm |
|
| Torque |
1050 Nm@1100-1700 rpm |
1373 Nm@1300-1500 rpm |
|
| Transmission |
9 speed manual (9F+1R) |
|
|
| Variants |
Cabin and chassis
Cabin with Box body
Cabin with Rock / Scoop body |
Cabin with body |
|
| Warranty |
2 Years / 6000 hrs |
|
|
Engine & Performanceof
| Engine |
VEDX8
SCR technology |
Kamaz 740.61.320 |
|
| Fuel Injection System |
Common rail |
|
|
| Engine Displacement |
7700 cc |
11760 cc |
|
| Power |
280 HP@2200 rpm |
316 HP@1900 rpm |
|
| Torque |
1050 Nm@1100-1700 rpm |
1373 Nm@1300-1500 rpm |
|
| Clutch |
420 mm dia
With clutch booster |
430 mm
Single plate pull type |
|
| Transmission |
9 speed manual (9F+1R) |
|
|
| Gradeability |
Hub Reduction: 53.6%
Single Reduction: 51.7% |
42% |
|
| Emission Norms Compliance |
BSIV |
BS3 |
|
| Fuel Tank Capacity |
Diesel: 210 Litres
Ad-Blue Tank : 33 Litres |
210 Litres |
|
| Electricals Battery |
24V, 150 Ah |
2x12 V, 165 Ah |
|
Design & Configurationof
| Vehicle Configuration |
Cabin and chassis
Cabin with Box body
Cabin with Rock / Scoop body |
Cabin with body |
|
| Cabin Type |
Sleeper Cab |
Day cab |
|
| Cabin Tilt mechanism |
Hydraulically tiltable |
Hydraulically tiltable |
|
| Chassis Frame |
Rolled form type |
|
|
| Axle Configuration |
6x4 |
6x4 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type |
Forged I beam reverse Elliot type |
|
| Rear Axle |
Hub reduction axle
Single reduction (optional)
FDR : 5.79 (HR), 5.57 (SR) |
Fully floating tandem axle |
|
| Front Suspension |
Parabolic leaf springs |
Semi elliptical leaf springs
With double acting shock absorbers |
|
| Rear Suspension |
Bogie suspension |
Bogie suspension |
|
| Tyres |
11.00R20 -16 PR
Radial tyres |
11x20 |
|
| Wheelbase |
4085 mm
4585 mm |
4300 mm |
|
| Turning Circle Diameter |
14.9 m (4085 wb)
16.7 m (4585 wb) |
|
|
| Ground Clearance |
288 mm (Hub Reduction)
247 mm (Single Reduction) |
296 mm |
|
| Chassis Flange width |
90 mm |
|
|
| Load Body Dimensions |
16 Cu.M
14 Cu.M |
|
|
Features & Comfortof
| Cabin Suspension |
Fully Suspended |
|
|
| Steering |
Power steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Driver Seat |
6 way adjustable
Mechanically Suspended (Standard)
Air Suspended (Optional) |
Adjustable seat |
|
| Air Conditioner (AC) |
Standard |
Yes |
|
| Quarter Ventilation Glass |
No |
|
|
| Instrument Cluster |
Digital
With fuel coaching |
Digital
With on board diagnostics |
|
| Mobile Charging Point |
Yes |
Yes |
|
| Automatic Transmission |
No |
|
|
Safetyof
| Service Brakes |
Air Brakes |
|
|
| Parking Brakes |
Pneumatic hand operated |
|
|
Key Comparison of Eicher Pro 8025T vs Kamaz 6520 6x4
Compare Eicher Pro 8025T vs Kamaz 6520 6x4 in detail at TrucksBuses.com ! You can check detailed truck comparison of Eicher Pro 8025T with Kamaz 6520 6x4 on the basis of engine, specifications, payload, price, mileage and features. Eicher Pro 8025T with a gross weight of , gives a power of whereas Kamaz 6520 6x4 produces of power and comes with a GVW of . Powering the Eicher Pro 8025T truck is cylinder, engine whereas Kamaz 6520 6x4 gets powered by a cylinder, engine.
