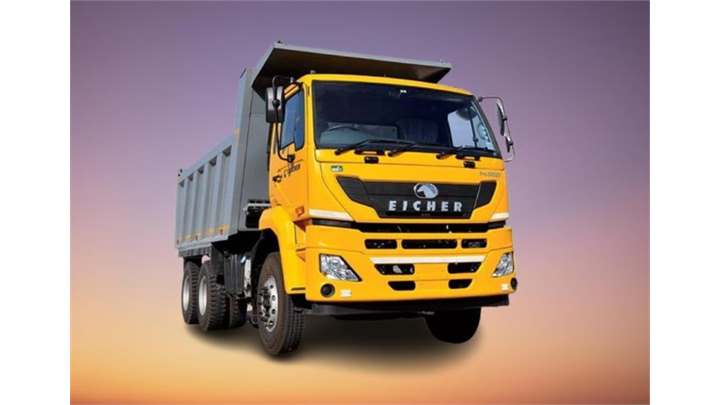

Overview of Eicher Pro 6025T

GVW 25000 Kg
Axle Configuration 6x4
Engine
  • VEDX8
  • SCR technology
Power (Max.) 250 HP@2200 rpm
Torque (Max.) 950 Nm@1100-1700 rpm
Transmission 9 speed manual (8F+1CR+1R)
Vehicle Configuration
  • Cabin and chassis
  • Cabin with Box body
  • Cabin with Rock body
Load Body Options
  • 16 Cu.M Box body
  • 14 Cu.M Box body
  • 14 Cu.M Rock body
Additional
  • Fuel coaching
  • MBooster+ Technology

Engine & Performance of Eicher Pro 6025T

Engine
  • VEDX8
  • SCR technology
Fuel Injection System Common rail
Engine Displacement 7700 cc
Engine Cylinders 6
Power (Max.) 250 HP@2200 rpm
Torque (Max.) 950 Nm@1100-1700 rpm
Clutch
  • 430 mm dia
  • With clutch booster
Transmission 9 speed manual (8F+1CR+1R)
Gearbox ZF 1110 TD
Gradeability 42.5%
Max Speed 80 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity
  • Diesel: 220 Litres
  • Ad-Blue Tank : 22 Litres
Electricals / Battery 24V, 120 Ah

Design & Configuration of Eicher Pro 6025T

GVW 25000 Kg
Vehicle Configuration
  • Cabin and chassis
  • Cabin with Box body
  • Cabin with Rock body
Load Body Options
  • 16 Cu.M Box body
  • 14 Cu.M Box body
  • 14 Cu.M Rock body
Cabin Type
  • Day Cab
  • With rest kit provision
Cabin Tilt mechanism Hydraulically tiltable
Chassis Frame Domex frame
Axle Configuration 6x4
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle Fully floating, Banjo type
Front Suspension Parabolic leaf springs
Rear Suspension Bogie suspension
Anti-Roll Bar Front only
Tyres 11x20 - 16 PR Crossply
Wheelbase 4000 mm
Turning Circle Diameter 14.4 m
Ground Clearance 285 mm
Chassis Depth 285 mm
Chassis Flange width 76 mm
Chassis Thickness
  • 7 mm
  • With 6 mm stiffener

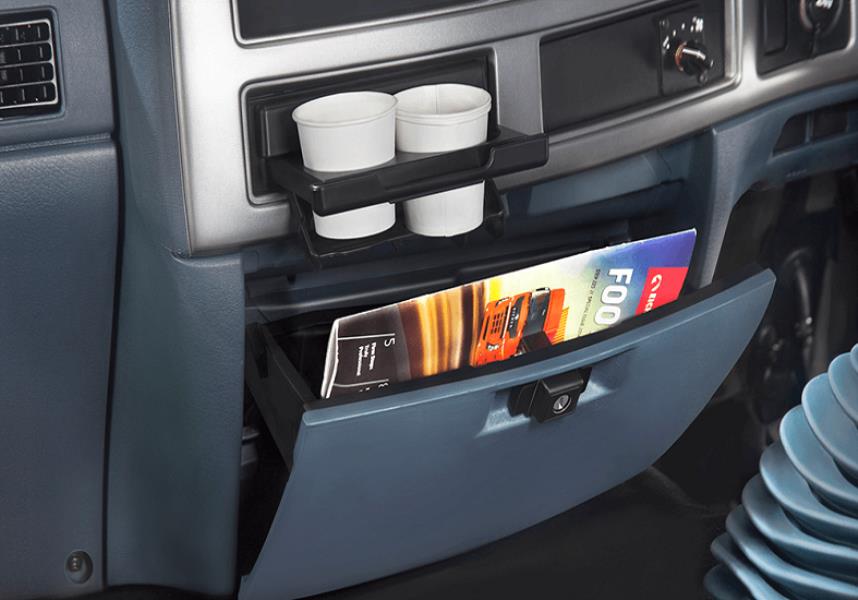

Features & Comfort in Eicher Pro 6025T

Cabin Suspension Fully Suspended
Steering Type Power steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) HVAC (Optional)
Instrument Cluster
  • Digital
  • With fuel coaching
Telematics / GPS Tracking
  • Telematics unit as standard fitment
  • Service activation (Optional)
Power Windows Optional
Music System Optional
Mobile Charging Point Yes
Bottle Holder Yes
Automatic Transmission No
Cruise Control Yes

Safety in Eicher Pro 6025T

Service Brakes Air Brakes
Parking Brakes Pneumatic hand operated
ABS Yes
Anti-Roll Bar Front only
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Tubeless Tyres No
