Commercial Vehicles in India

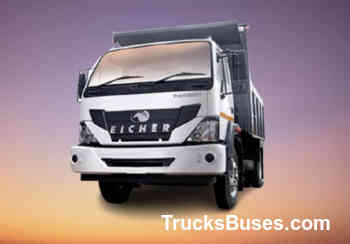

  • Eicher Pro 1110XPT Tipper

Quick Search

Overview of Eicher Pro 1110XPT

GVW 13000 Kg
Axle Configuration 4x2
Engine
  • E494 CRS
  • With EGR Technology
Power (Max.) 135 HP@2600 rpm
Torque (Max.) 450 Nm @ 1200-1800 rpm
Transmission 5 speed manual (5F+1R)
Vehicle Configuration
  • Cabin with PTO
  • Cabin with body
Load Body Options 6.6 Cu.M
Warranty 4 years unlimited km on engine and gearbox

Engine & Performance of Eicher Pro 1110XPT

Engine
  • E494 CRS
  • With EGR Technology
Fuel Injection System Common rail
Engine Displacement 3760 cc
Engine Cylinders 4
Power (Max.) 135 HP@2600 rpm
Torque (Max.) 450 Nm @ 1200-1800 rpm
Clutch 330 mm dia
Transmission 5 speed manual (5F+1R)
Gearbox
  • ET 60 S6
  • Hybrid gear shift lever
Gradeability 31.7%
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 160 Litres
Electricals / Battery 12V- 100 Ah

Design & Configuration of Eicher Pro 1110XPT

GVW 13000 Kg
Vehicle Configuration
  • Cabin with PTO
  • Cabin with body
Load Body Options 6.6 Cu.M
Cabin Type Day Cab
Cabin Tilt mechanism Tiltable cabin
Chassis Frame C Channel ladder type
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle Meritor axle
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Tyres 8.25x20 - 16PR Crossply
Wheelbase 3335 mm
Turning Circle Diameter 12.9 m
Ground Clearance 210 mm
Chassis Depth 210 mm
Chassis Flange width 65 mm
Chassis Thickness 6 mm

Features & Comfort in Eicher Pro 1110XPT

Cabin Suspension No
Steering Type Power steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 4 way adjustable
Arm Rest No
Air Conditioner (A/C) No
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking No
Power Windows No
Music System No
Mobile Charging Point Yes
Bottle Holder No
Automatic Transmission No
Cruise Control No

Safety in Eicher Pro 1110XPT

Service Brakes Air Brakes
Parking Brakes
  • Spring brakes
  • Acting at rear wheels
Exhaust Brake Yes
ABS Yes
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light No
Tubeless Tyres No
