Commercial Vehicles in India

  • Tata SFC 909

Quick Search

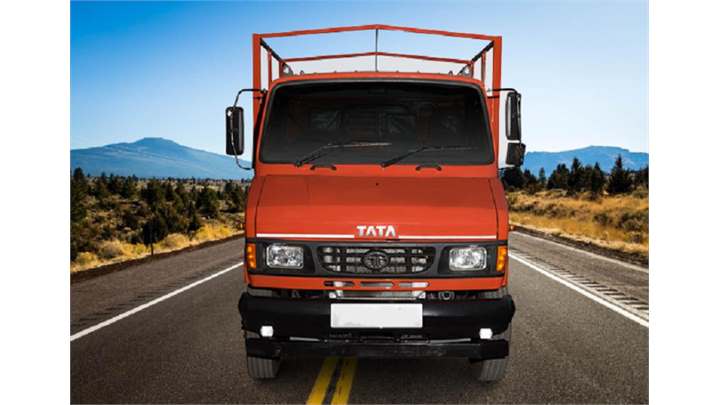

Overview of Tata SFC 909

GVW 9050 Kg
Engine
  • 497 TCIC
  • Turbo-charged, Intercooled
Power (Max.) 123 HP@2400 rpm
Torque (Max.) 400 Nm@1300-1500 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span 12.6 ft
Warranty 3 Years / 3 Lakh Km on driveline
Service Interval 40,000 Km (Oil change)

Engine & Performance of Tata SFC 909

Engine
  • 497 TCIC
  • Turbo-charged, Intercooled
Fuel Injection System Electronic rotary type
Engine Displacement 3783 cc
Engine Cylinders 4
Power (Max.) 123 HP@2400 rpm
Torque (Max.) 400 Nm@1300-1500 rpm
Clutch 310 mm dia
Transmission 5 speed manual (5F+1R)
Gearbox GBS 40, Synchromesh type
Gradeability 25%
Max Speed 80 Kmph
Emission Norms Compliance BSIII
Fuel Type Diesel
Fuel Tank Capacity 160 Litres
Electricals / Battery
  • 12V, 100 Ah
  • Alternator: 65 Amps

Design & Configuration of Tata SFC 909

GVW 9050 Kg
Kerb Weight 3430 Kg (FSD)
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span 12.6 ft
Cabin Type Semi-forward day cab
Cabin Tilt mechanism NA
Chassis Frame Ladder type with cross members
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle Fully Floating, Single reduction hypoid gears
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Tyres
  • 8.25x16–16 PR
  • 6+1 tyres
Wheelbase 3800 mm
Turning Circle Diameter 13.5 m
Ground Clearance 217 mm
Overall Length 5945 mm
Front Overhang 760 mm
Rear Overhang 1385 mm
Chassis Depth 200 mm
Chassis Flange width 60 mm
Chassis Thickness 5 mm

Features & Comfort in Tata SFC 909

Cabin Suspension No
Steering Type Mechanical type
Steering Adjustment No
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) No
Openable Quarter Ventilation Glass Yes
Instrument Cluster
  • Analog
  • With LED display
Telematics / GPS Tracking No
Power Windows No
Music System No
Mobile Charging Point No
Bottle Holder Yes
Automatic Transmission No
Cruise Control No
Additional Digital clock

Safety in Tata SFC 909

Service Brakes
  • Air brakes
  • With automatic adjustment
Parking Brakes
  • Graduated valve controlled spring brake
  • Acting on rear axle
Exhaust Brake Yes
ABS No
Differential Lock No
Seat Belts Yes
Fog Light No
Tubeless Tyres No
