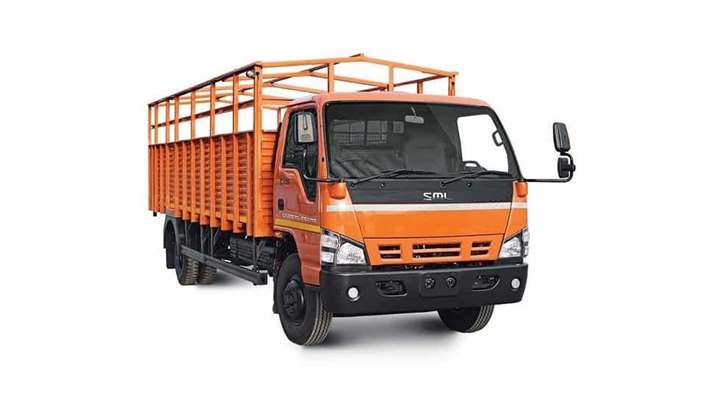

Overview of SML Isuzu Super GS

GVW 8720 Kg
Engine SLT4 CRDI TCIC
Power (Max.) 101 HP@2800 rpm
Torque (Max.) 296 Nm@1500 rpm
Axle Configuration 4x2
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span
  • 12.3 ft
  • 14 ft
  • 17.2 ft
Warranty
  • 3 Years / Unlimited Km on engine and transmission
  • 2 years / unlimited Km on vehicle
Service Interval 20,000 Km

Engine & Performance of SML Isuzu Super GS

Engine SLT4 CRDI TCIC
Fuel Injection System Common rail
Engine Displacement 3455 cc
Engine Cylinders 4
Power (Max.) 101 HP@2800 rpm
Torque (Max.) 296 Nm@1500 rpm
Clutch 260 mm dia
Transmission 5 speed manual (5F+1R)
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 90 / 180 Litres

Design & Configuration of SML Isuzu Super GS

GVW 8720 Kg
Vehicle Configuration
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • Fixed Side Deck
  • High Side Deck
Loading Span
  • 12.3 ft
  • 14 ft
  • 17.2 ft
Cabin Type Day cab
Chassis Frame Box type chassis with tubular cross members
Axle Configuration 4x2
Front Suspension
  • Semi elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi elliptical leaf springs
  • With telescopic shock absorbers
Tyres
  • 7.50x16- 14/16 PR
  • 6+1 tyres
Wheelbase
  • 2815 mm
  • 3335 mm
  • 4240 mm
Ground Clearance 206 mm

Features & Comfort in SML Isuzu Super GS

Cabin Suspension Rigid
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 4 way adjustable
Instrument Cluster Digital
Power Windows No
Music System No
Mobile Charging Point Yes
Automatic Transmission No
Cruise Control No

Safety in SML Isuzu Super GS

Service Brakes
  • Vacuum assisted Hydraulic brakes
  • Air brakes (Optional)
Differential Lock No
Seat Belts Yes
Fog Light Provision
Tubeless Tyres No
