Ashok Leyland Ecomet Star 1815 HE BS6 truck specifications

Name: Ashok Leyland Ecomet Star 1815 HE
Brand: Ashok Leyland
SKU: TBN-20-A9AFD8

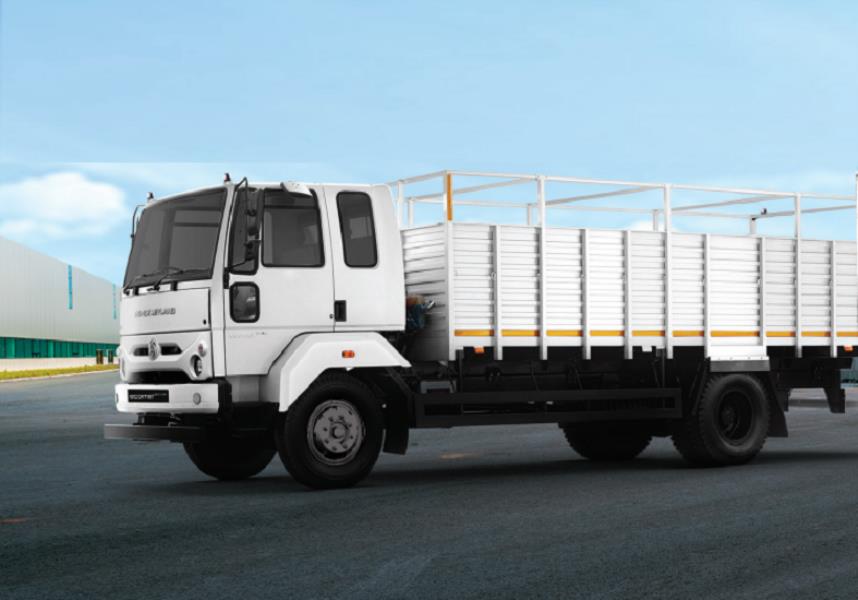

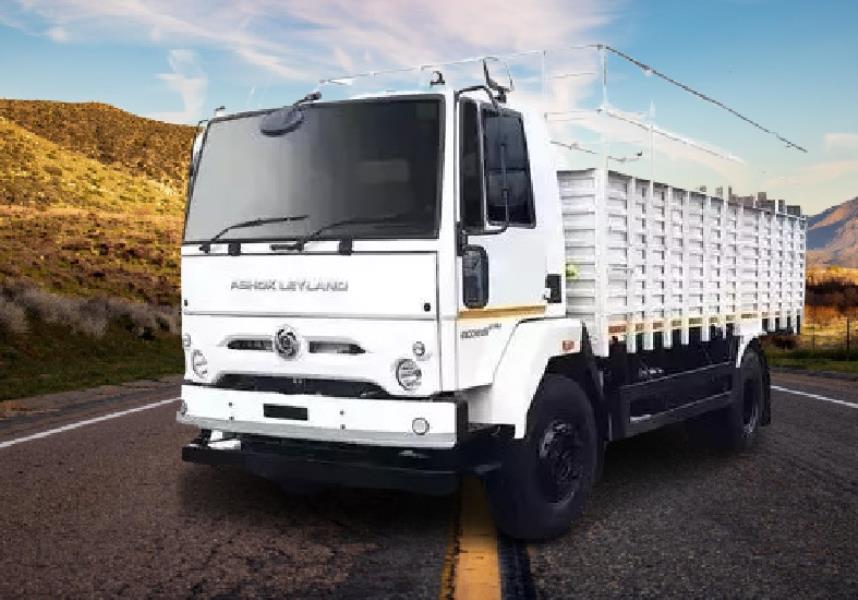

Ashok Leyland Ecomet Star 1815 HE Truck Images

Rate This Vehicle

From ₹ 30.10-30.30 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers for this month

Download Ashok Leyland Ecomet Star 1815 HE Truck Brochure

Check out the Ashok Leyland Ecomet Star 1815 HE Truck PDF brochure at TrucksBuses.com with all features and specifications.

Key Details of Ashok Leyland Ecomet Star 1815 HE Truck

Power

150

GVW

17500 Kg

Fuel

Diesel

Engine

3839 cc

Cylinders

Key Specifications of Ashok Leyland Ecomet Star 1815 HE Truck

Engine
Configuration

Engine
H series CRS
iGen-6 technology
Fuel Injection System
Common Rail
Engine Displacement
3839 cc
Engine Cylinders
4
Power
150 HP@2400 rpm
Torque
450 Nm@1250-2000 rpm
Clutch
330 mm dia
With clutch booster
Transmission
6 speed (6F+1R)
With cable shift
Gearbox
Synchromesh
Max Speed
80 Kmph
Emission Norms Compliance
BS6
Fuel Type
Diesel
Fuel Tank Capacity
Diesel: 185 Litres
Ad Blue: 24 Litres
Electricals Battery
12V, 120 Ah
Alternator: 90 Amps

GVW
17500 Kg
Payload
11.7 Ton*
Vehicle Configuration
Cabin and chassis
Cabin with load body
Load Body Options
Fixed Side Deck
Drop Side Deck
High Side Deck
Loading Span
20 ft
22 ft
24 ft
Cabin Type
Day cab
Cabin Tilt mechanism
Manually tiltable
Chassis Frame
Bolted ladder type
Axle Configuration
4x2
Front Axle
Forged I Beam, Reverse Elliot Type
Rear Axle
Fully floating single speed
Hypoid axle
Front Suspension
Semi elliptical leaf springs
Rear Suspension
Semi elliptical leaf springs
Tyres
295/90R20
Wheelbase
4200 mm
4750 mm
5200 mm
Turning Circle Diameter
17.5 m (20 ft)
19.7 m (22 ft)
21.5 m (24 ft)

Ashok Leyland Ecomet Star 1815 HE Truck Specification Highlights

TrucksBuses introduces the engine performance and body configuration of the Ashok Leyland Ecomet Star 1815 HE cargo truck in this section. This 6 wheeler Ecomet Star 1815 HE is equipped with a powerful 4-cylinders engine of 3839 cc displacement and produces a power of 150 horsepower and a high-end torque of 450 Nm. Ashok Leyland truck power transmission is controlled by a 6-speed transmission system. This Ashok Leyland truck is available in an axle configuration of 4x2. The Ecomet Star 1815 HE truck runs on diesel fuel and its fuel tank capacity is 185 liters. It has a manually tiltable day cab-type cabin. The 6 chakka Leyland truck chassis has a bolted ladder-type frame. Both the front and the rear suspension have semi-elliptical leaf springs. These unique body configurations of this 6-chakka cargo truck make it different from other similar trucks.

Ashok Leyland Ecomet Star 1815 HE Truck Brochure

Download Ashok Leyland Ecomet Star 1815 HE Truck brochure online. Check out the Ashok Leyland Ecomet Star 1815 HE Truck PDF brochure at TrucksBuses.com with all features and specifications.

Frequently Asked Questions on Ashok Leyland Ecomet Star 1815 HE Truck

What is the engine capacity of Ashok Leyland Ecomet Star 1815 HE ?

Ashok Leyland Ecomet Star 1815 HE comes with 4 cylinder H series CRS# iGen-6 technology engine and the engine displacement is 3839 cc

What is the latest Ashok Leyland Ecomet Star 1815 HE price in India ?

Ashok Leyland Ecomet Star 1815 HE price starts from Rs 30.10-30.30 Lakh* . The 2023 price of Ashok Leyland Ecomet Star 1815 HE can vary slightly from state to state and city to city.

What is the Ashok Leyland Ecomet Star 1815 HE payload capacity ?

Payload defines the loading capacity of any truck. The payload of Ashok Leyland Ecomet Star 1815 HE is 11.7 Ton*

What is Ashok Leyland Ecomet Star 1815 HE power and torque ?

In terms of performance, Ashok Leyland Ecomet Star 1815 HE produces a maximum power of 150 HP@2400 rpm and a maximum torque of 450 Nm@1250-2000 rpm

What is the gearbox and transmission type in Ashok Leyland Ecomet Star 1815 HE ?

Ashok Leyland Ecomet Star 1815 HE comes with a 6 speed (6F+1R)# With cable shift transmission along with a 330 mm dia# With clutch booster clutch

What is the Ashok Leyland Ecomet Star 1815 HE GVW tonnage capacity ?

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Ashok Leyland Ecomet Star 1815 HE GVW is 17500 Kg

What is the fuel tank capacity of Ashok Leyland Ecomet Star 1815 HE ?

Ashok Leyland Ecomet Star 1815 HE comes with Diesel fuel option and its fuel tank capacity is Diesel: 185 Litres# Ad Blue: 24 Litres

What is the EMI of Ashok Leyland Ecomet Star 1815 HE ?

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Ashok Leyland Ecomet Star 1815 HE is expected to be around Rs Not Available for a 5 year period
