Commercial Vehicles in India

  • Ashok Leyland 4123 - 16 Wheeler Truck

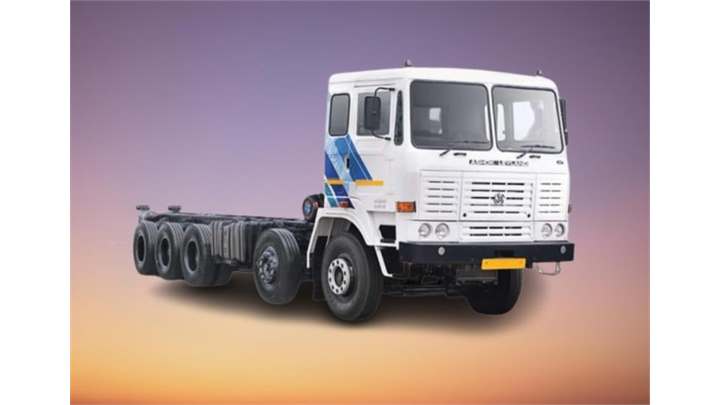

Ashok Leyland 4123

Ashok Leyland 4123 is the 16 wheeler multi axle truck in 10x2 axle configuration. This new Ashok Leyland 16 wheeler truck offers an astounding 41.2 Ton GVW and comes with first of its kind twin tyre pusher lift axle. Powered by H Series CRS engine with iEGR technology, which doesn't require additional ad-blue consumption, this Ashok Leyland 16 wheeler truck produces 225 HP and 800 Nm of max power and torque respectively. Ashok Leyland 4123 truck comes in different loading span options and a 9 speed manual gearbox does the transmission duty. This 16 wheeler Ashok Leyland truck is offered in Cowl chassis as well as Cabin chassis versions to suit the transporter's requirements. Best in class Ashok Leyland 4123 truck mileage and large 400 litres fuel tank makes it suitable for long stretches without frequent refueling needs. To know more about Ashok Leyland 16 wheeler truck price or any other Ashok Leyland truck price, submit your interest for us to get back to you.

Overview of Ashok Leyland 4123

GVW 41200 Kg
Engine
  • H Series CRS
  • iEGR Technology
Power (Max.) 225 HP@2400 rpm
Torque (Max.) 800 Nm@1200-1900 rpm
Axle Configuration 10x2
Vehicle Configuration
  • Face Cowl and chassis
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • High Side Deck
  • Fixed Side Deck
Loading Span
  • 28 ft
  • 29.5 ft
  • 32 ft
Warranty 4 Years / 4 Lakh Km
Service Interval 80,000 Km (Oil change)

Engine & Performance of Ashok Leyland 4123

Engine
  • H Series CRS
  • iEGR Technology
Fuel Injection System Common Rail
Engine Displacement 5660 cc
Engine Cylinders 6
Power (Max.) 225 HP@2400 rpm
Torque (Max.) 800 Nm@1200-1900 rpm
Clutch
  • 380 mm dia
  • With clutch booster
Transmission 9 speed manual (8F+ 1CR + 1R)
Gearbox ZF 8S 1110
Gradeability 17.7%
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 400 Litres
Electricals / Battery
  • 2x12V, 110 Ah
  • Alternator: 85 Amps

Design & Configuration of Ashok Leyland 4123

GVW 41200 Kg
Vehicle Configuration
  • Face Cowl and chassis
  • Cabin and chassis
  • Cabin with load body options
Load Body Options
  • High Side Deck
  • Fixed Side Deck
Loading Span
  • 28 ft
  • 29.5 ft
  • 32 ft
Cabin Type Sleeper cabin
Cabin Tilt mechanism NA
Chassis Frame
  • Bolted construction
  • Constant width over chassis
Axle Configuration 10x2
Front Axle
  • Forged I Beam, Reverse Elliot Type
  • Twin steerable axles
Rear Axle
  • Fully floating, Single speed hypoid
  • Twin tyre pusher lift axle
  • RAR 5.86
Front Suspension Semi elliptical leaf springs
Rear Suspension Slipper ended suspension
Tyres
  • 10R20-16 PR Radial
  • 16+1 tyres
Wheelbase 6600 mm
Turning Circle Diameter 23.7 m
Ground Clearance 260 mm
Overall Length 10758 / 11358 mm
Overall Width 2432 mm
Front Overhang 1350 mm
Rear Overhang 1886 / 2486 mm
Front Track 2054 mm
Rear Track 1870 mm
Chassis Depth 275 mm
Chassis Flange width 75 mm
Chassis Thickness 7 mm

Features & Comfort in Ashok Leyland 4123

Cabin Suspension NA
Steering Type Power Steering
Steering Adjustment No
Air Conditioner (A/C) Blower as standard
Openable Quarter Ventilation Glass Yes
Instrument Cluster
  • Analog
  • With LED display
Power Windows No
Music System No
Automatic Transmission No
Cruise Control No

Safety in Ashok Leyland 4123

Service Brakes Air brakes
Parking Brakes
  • Pneumatic flick valve operated
  • Acting on rear wheels
ABS Yes
Differential Lock No
Fog Light No
Tubeless Tyres No
