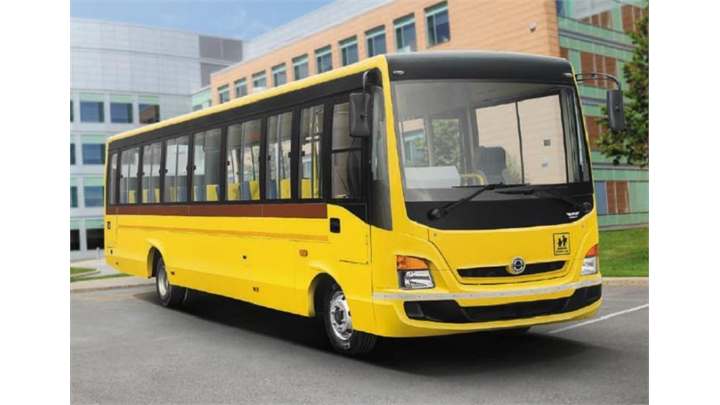

Key Details of BharatBenz 1014 : School 39 / 49 Seater Bus

Power
147
GVW
10600 Kg
Fuel
Diesel
Engine
3907 cc
Cylinders
4
Trucksbuses.com
Trucksbuses.com

Key Specifications of BharatBenz 1014 : School 39 / 49 Seater Bus

  • Engine
    4D34i CRDI
  • Fuel Injection System
    Unitised fuel injection pump
  • Engine Displacement
    3907 cc
  • Engine Cylinders
    4
  • Engine Location
    Front
  • Power
    147 HP@2500 rpm
  • Torque
    460 Nm@1500 rpm
  • Clutch
    330 mm dia
    Organic
  • Transmission
    6 speed (6F+1R)
    With overdrive gear
  • Gearbox
    M036, Synchromesh type
    Cable shift
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 160 Litres
    Ad Blue: 43 Litres
  • Electricals Battery
    2x12V, 75 Ah
  • GVW
    10600 Kg
  • Seating Layout
    2x2
    3x2
  • Seating Capacity
    39+D (2x2)
    49+D (3x2)
  • Passenger Door Type
    In-swing manual
  • Floor Type
    Anti skid vinyl
  • Chassis Frame
    Ladder type channel with cross members
  • Axle Configuration
    4x2
  • Front Axle
    Forged I section, Reverse Elliot type
  • Rear Axle
    Fully Floating Type
  • Front Suspension
    Parabolic leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Parabolic leaf springs
    With telescopic shock absorbers
  • Anti Roll Bar
    Front and Rear
  • Tyres
    235/75 R17.5
    Tubeless radial
    6+1 tyres
  • Wheelbase
    5300 mm
  • Turning Circle Diameter
    18.6 m
  • Ground Clearance
    192 mm
  • Overall Length
    8493 mm
  • Overall Width
    2199 mm
  • Front Overhang
    1323 mm
  • Rear Overhang
    3164 mm
  • Front Track
    1790 mm
  • Rear Track
    1690 mm

BharatBenz 1014 : School 39 / 49 Seater Bus Specification Highlights

Check all the BharatBenz 1014 : School 39 / 49 Seater bus specifications here on TrucksBuses Gearbox matched with this engine is 6 speed (6F+1R), With overdrive gear BharatBenz 1014 : School 39 / 49 Seater comes with a gross weight capacity of 10600 kg and length of 8493 mm For the comfortable journeys, parabolic leaf springs, with telescopic shock absorbers in front and parabolic leaf springs, with telescopic shock absorbers in rear does the duty in this BharatBenz bus Other BharatBenz 1014 : School 39 / 49 Seater bus specifications like chassis, tyre, body width, turning circle dia, engine cc are available here in the tables on this page.

Frequently Asked Questions on BharatBenz 1014 : School 39 / 49 Seater Bus

BharatBenz 1014 : School 39 / 49 Seater bus GVW is 10600 Kg
BharatBenz 1014 : School 39 / 49 Seater bus can be purchased in multiple seating options depending on requirement. The seating capacity of BharatBenz 1014 : School 39 / 49 Seater bus is 39+D (2x2)# 49+D (3x2) seats
BharatBenz 1014 : School 39 / 49 Seater bus comes with Air brakes
BharatBenz 1014 : School 39 / 49 Seater bus comes with a standard warranty of 3 Years / 3 Lakh Km
BharatBenz 1014 : School 39 / 49 Seater bus comes with 4 cylinder 4D34i CRDI engine and the engine displacement is 3907 cc
In terms of performance, BharatBenz 1014 : School 39 / 49 Seater bus produces a maximum power of 147 HP@2500 rpm and a maximum torque of 460 Nm@1500 rpm
BharatBenz 1014 : School 39 / 49 Seater bus comes with a 6 speed (6F+1R)# With overdrive gear transmission
BharatBenz 1014 : School 39 / 49 Seater bus comes with Diesel fuel option and its fuel tank capacity is Diesel: 160 Litres# Ad Blue: 43 Litres
The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of BharatBenz 1014 : School 39 / 49 Seater bus is expected to be around Rs Not Available for a 5 year period
The tyre size of BharatBenz 1014 : School 39 / 49 Seater bus is 235/75 R17.5# Tubeless radial# 6+1 tyres
