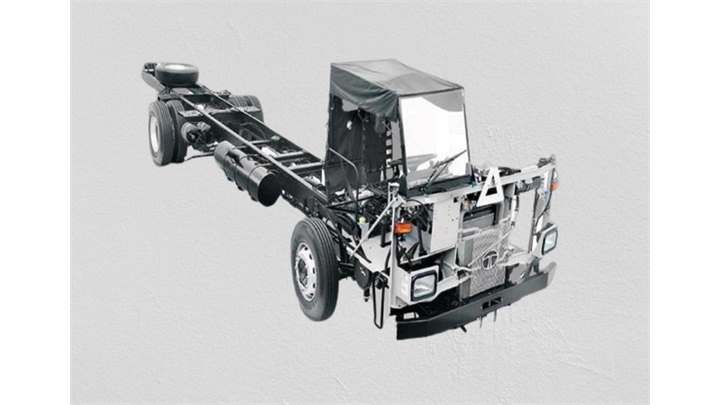

Tata LPO 1622 Bus Chassis Specifications

From ₹ 30.87 Lakh* Onwards
*Ex-showroom Price

 Don't miss out on the best discount offers for this month

Key Details of Tata LPO 1622 Bus Chassis

Power
220
GVW
16200 Kg
Fuel
Diesel
Engine
5635 cc
Cylinders
6

Key Specifications of Tata LPO 1622 Bus Chassis

  • Engine
    Cummins B 5.6L
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    5635 cc
  • Engine Cylinders
    6
  • Engine Location
    Front
  • Power
    220 HP@2300 rpm
  • Torque
    850 Nm@1000-1600 rpm
  • Clutch
    380 mm dia
  • Transmission
    6 speed (6F+1R)
  • Gearbox
    G750 OD
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    350 Litres
  • Electricals Battery
    2x12 Volts, 180 Ah
    Alternator: 2x100 Amps
  • GVW
    16200 Kg
  • Overall Length
    11465 mm (5700 wb)
    11865 m (6200 wb)
  • Overall Width
    2585 mm
  • Vehicle Configuration
    Chassis without face-cowl
  • Chassis Frame
    Ladder type
  • Axle Configuration
    4x2
  • Rear Axle
    Single speed hypoid
    Fully floating
  • Front Suspension
    Weveller
    Air (Optional)
  • Rear Suspension
    Weveller
    Air (Optional)
  • Tyres
    295/80 R22.5
    Tubeless radial
  • Wheelbase
    5845 mm
    6200 mm
  • Turning Circle Diameter
    20.1 m (5845 wb)
    21.1 m (6200 wb)
  • Front Overhang
    2265 mm
  • Rear Overhang
    3355 mm (5845 wb)
    3400 mm (6200 wb)

Tata LPO 1622 Bus Chassis Specification Highlights

Check all the Tata LPO 1622 bus specifications here on TrucksBuses The main driveline of this Tata bus chassis includes a 6 cylinder Cummins B 5.6L engine that produces a maximum power of 220 HP and a torque of 850 Nm Gearbox matched with this engine is 6 speed (6F+1R)Tata LPO 1622 bus comes with a gross vehicle weight of 16200 kg and offers length of 11465 mm (5700 wb), 11865 m (6200 wb) For the comfortable journeys, weveller, air (optional) in front and weveller, air (optional) in rear does the duty in this Tata bus chassis Other Tata LPO 1622 bus specifications like chassis, width, tyre, turning circle dia are available here in the tables on this page.

Frequently Asked Questions on Tata LPO 1622 Bus Chassis

Tata LPO 1622 bus chassis price starts from Rs 30.87 Lakh* Onwards. The 2023 price of Tata LPO 1622 bus chassis can vary slightly from state to state and city to city.
Tata LPO 1622 bus chassis can accomodate multiple seating options depending on the exact requirement. Tata LPO 1622 bus chassis seating capacity will depend on the type of body being made and the application it is going to be used for like staff application, school, route permit etc, with each offering a different number of seats.
The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer, loan tenure and the body funding availed. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata LPO 1622 bus is expected to be around Rs 65590 for a 5 year period
Tata LPO 1622 bus comes with a 6 speed (6F+1R) transmission
Tata LPO 1622 bus GVW is 16200 Kg
In terms of performance, Tata LPO 1622 bus chassis produces a maximum power of 220 HP@2300 rpm and a maximum torque of 850 Nm@1000-1600 rpm
Tata LPO 1622 bus comes with Diesel fuel option and its fuel tank capacity is 350 Litres
The tyre size of Tata LPO 1622 bus is 295/80 R22.5# Tubeless radial
