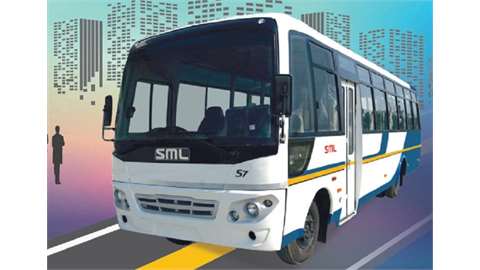

SML Isuzu S7 : 30 Seater Bus Specifications

 Don't miss out on the best discount offers for this month

Key Details of SML Isuzu S7 : 30 Seater Bus

Power
100
GVW
7920 Kg
Fuel
Diesel
Engine
3455 cc
Cylinders
4

Key Specifications of SML Isuzu S7 : 30 Seater Bus

  • Engine
    SLTHT6 CRDI TCIC
  • Fuel Injection System
    Common rail
  • Engine Displacement
    3455 cc
  • Engine Cylinders
    4
  • Engine Location
    Front
  • Power
    100 HP @ 2600 rpm
  • Torque
    310 Nm @ 1600 rpm
  • Clutch
    260 mm dia
  • Transmission
    5 speed (5F+1R)
  • Gearbox
    Synchromesh
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    90 Litres
  • Electricals Battery
    12V, 70 Ah
    55 Amps
  • GVW
    7920 Kg
  • Seating Layout
    2X2
  • Seating Capacity
    30+D (Non-AC); 28+D (AC)
  • Body Structure
    Tubular structure
  • Passenger Door Type
    One jack-knife type
  • Floor Type
    Anti-skid flooring
  • Chassis Frame
    Box type
  • Axle Configuration
    4x2
  • Front Axle
    Forged I section reverse Elliot type axle
  • Rear Axle
    Fully floating Banjo type axle
  • Front Suspension
    Semi elliptical leaf springs
  • Rear Suspension
    Semi elliptical leaf springs
  • Tyres
    8.25x16 - 16PR
    6+1 tyres
  • Wheelbase
    4240 mm
  • Turning Circle Diameter
    16.4 m
  • Ground Clearance
    228 mm
  • Overall Length
    7920 mm
  • Overall Width
    2262 mm
  • Overall Height
    2960 mm
    3060 mm (AC option)
  • Internal Height Saloon
    1910 mm
  • Front Overhang
    1180 mm
  • Rear Overhang
    2364 mm
  • Front Track
    1674 mm
  • Rear Track
    1486 mm

SML Isuzu S7 : 30 Seater Bus Specification Highlights

Here are the SML Isuzu S7 : 30 seater Bus specifications which include SLTHT6 CRDI TCIC engine types, common rail type of fuel injection system and engine location at front. The brand new 30 seater SML Isuzu S7 bus engine has a 260 mm dia of clutch, 5 speed type of transmission with4 cylinders. The latest SML Isuzu S7 bus has synchromesh type of gearbox and BS6 of emission norms compliance. With the 2X2 seating layout, the latest specifications of SML Isuzu S7 : 30 Seater Bus has an 80 kilometers per hour of maximum speed. The SML Isuzu S7 bus has a 90 litres of fuel tank capacity which helps it for long journey. The SML Isuzu brand has a tubular type of body structure, one jack-knife type of passenger door, an anti-skid flooring type of floor type with box type of chassis frame inbuilt with this 30 seater SML Isuzu bus.

Frequently Asked Questions on SML Isuzu S7 : 30 Seater Bus

SML Isuzu S7 : 30 Seater bus can be purchased in multiple seating options depending on requirement. The seating capacity of SML Isuzu S7 : 30 Seater bus is 30+D (Non-AC); 28+D (AC) seats
In terms of performance, SML Isuzu S7 : 30 Seater bus produces a maximum power of 100 HP @ 2600 rpm and a maximum torque of 310 Nm @ 1600 rpm
The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of SML Isuzu S7 : 30 Seater bus is expected to be around Rs Not Available for a 5 year period
SML Isuzu S7 : 30 Seater bus comes with a 5 speed (5F+1R) transmission
SML Isuzu S7 : 30 Seater bus comes with Diesel fuel option and its fuel tank capacity is 90 Litres
The tyre size of SML Isuzu S7 : 30 Seater bus is 8.25x16 - 16PR# 6+1 tyres
SML Isuzu S7 : 30 Seater bus GVW is 7920 Kg
SML Isuzu S7 : 30 Seater bus comes with 4 cylinder SLTHT6 CRDI TCIC engine and the engine displacement is 3455 cc
SML Isuzu S7 : 30 Seater bus comes with Air brakes
SML Isuzu S7 : 30 Seater bus comes with a standard warranty of 2 Years/Unlimited Km on engine# 1 year on vehicle
