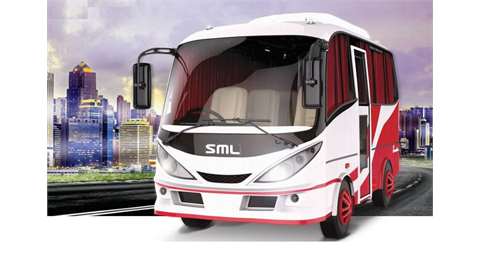

Overview of SML Isuzu Executive Bus

Seating Capacity
  • 12+1
  • 13+1
Engine SLT4 CRDI TCIC
Power (Max.) 101 HP@2800 rpm
Torque (Max.) 296 Nm@1500 rpm
GVW 5740 Kg
Suitable Applications Staff, Tourist
Warranty
  • 3 Years / Unlimited Km on engine
  • 1 year on vehicle

Engine & Performance of SML Isuzu Executive Bus

Engine SLT4 CRDI TCIC
Fuel Injection System Common rail
Engine Displacement 3455 cc
Engine Cylinders 4
Engine Location Front
Power (Max.) 101 HP@2800 rpm
Torque (Max.) 296 Nm@1500 rpm
Clutch 260 mm dia
Transmission 5 speed manual (5F+1R)
Gearbox Synchromesh
Max Speed 98 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 90 Litres
Electricals / Battery
  • 12V, 70 Ah
  • 55 Amps

Design & Configuration of SML Isuzu Executive Bus

GVW 5740 Kg
Seating Layout 2x1
Seating Capacity
  • 12+1
  • 13+1
Passenger Door Type Hydraulic jack knife type
Chassis Frame Box type
Axle Configuration 4x2
Front Axle Forged I section, Reverse Elliot type
Rear Axle Fully floating Banjo type axle
Front Suspension
  • Semi elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Parabolic leaf springs
  • With telescopic shock absorbers
Tyres
  • 7.50x16 - 16PR
  • 4+1 tyres
Wheelbase 2815 mm
Turning Circle Diameter 11 m
Ground Clearance 206 mm
Overall Length 5575 mm
Overall Width 2165 mm
Overall Height 3125 mm
Front Overhang 1044 mm
Rear Overhang 1689 mm
Front Track 1640 mm
Rear Track 1640 mm

Features & Comfort in SML Isuzu Executive Bus

Driver Seat Type 4 way adjustable
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Instrument cluster Analog
Automatic Transmission No
Telematics / GPS Tracking No
Air Conditioner (A/C) Yes
Openable Quarter Ventilation Glass No
Front Windshield Single piece laminated glass
Rear Windshield Single piece tempered glass
Side Windows Pasted glass
Hatrack Tubular
Passenger Seat Type Push back, reclining
Arm Rests Yes
AC Vents
  • Individual adjustable
  • Integrated in hatrack
Mobile Charging Point No
Music System Yes
Speakers Yes
Video Screen Yes
Saloon Light LED lights
Step Lamp Yes

Safety in SML Isuzu Executive Bus

Service Brakes Hydraulic brakes
ABS Yes
Grab Handle Available on each seat
Window Guardrail No
Emergency Exit Breakable rear glass with hammer
Roof Hatch No
Fire Extinguisher Yes
First Aid Box Yes
Peep Window No
Step Lamp Yes
Fog Light No
Tubeless Tyres No
Retarder No
