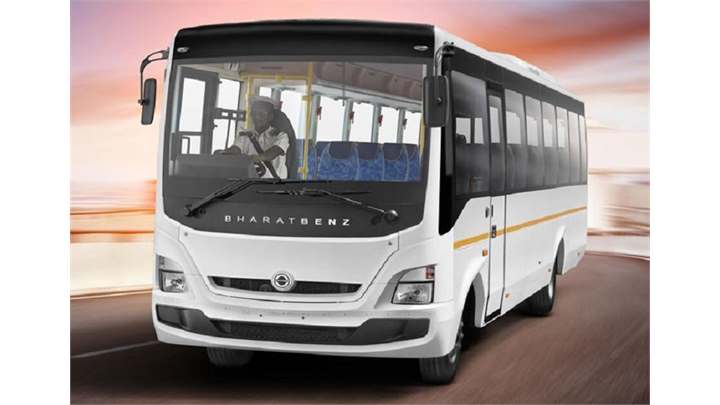

BharatBenz 917 AC: Tourist 26 Seater Bus Specifications

 Don't miss out on the best discount offers for this month

Key Details of BharatBenz 917 AC: Tourist 26 Seater Bus

Power
170
GVW
9600 Kg
Fuel
Diesel
Engine
3907 cc
Cylinders
4

Key Specifications of BharatBenz 917 AC: Tourist 26 Seater Bus

  • Engine
    4D34i CRDI
    SCR Technology
  • Fuel Injection System
    Common rail
  • Engine Displacement
    3907 cc
  • Engine Cylinders
    4
  • Engine Location
    Front
  • Power
    170 HP@2500 rpm
  • Torque
    520 Nm@1500 rpm
  • Clutch
    330 mm dia
    Organic
  • Transmission
    6 speed manual (6F+1R)
    With overdrive gear
  • Gearbox
    M036S6, Synchromesh type
    Cable shift
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BSIV
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    160 Litres
  • Electricals Battery
    Battery: 2x12 V-120 Ah
    Alternator: 160 Amps (twin)
  • GVW
    9600 Kg
  • Seating Layout
    2x1
  • Seating Capacity
    26+D
  • Body Structure
    Aluminique body structure
  • Passenger Door Type
    Automatic, In-swing
  • Floor Type
    Marine grade plywood; Anti-skid vinyl top layer
  • Chassis Frame
    Fuso Fighter platform
  • Axle Configuration
    4x2
  • Front Axle
    Forged I section, Reverse Elliot type
  • Rear Axle
    Fully Floating Type
  • Front Suspension
    Parabolic leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Semi-elliptical leaf springs
    With telescopic shock absorbers
  • Anti Roll Bar
    Front and Rear with stabilizers
  • Tyres
    235/75 R 17.5
    Tubeless radial
    6+1 tyres
  • Wheelbase
    5300
  • Turning Circle Diameter
    17.6 m
  • Overall Length
    9787 mm
  • Overall Width
    2350 mm
  • Overall Height
    3187 mm
  • Front Overhang
    1323 mm
  • Rear Overhang
    3124 mm
  • Front Track
    1790 mm
  • Rear Track
    1690 mm

BharatBenz 917 AC: Tourist 26 Seater Bus Specification Highlights

Check all the BharatBenz 917 AC: Tourist 26 Seater bus specifications here on TrucksBuses Gearbox matched with this engine is 6 speed manual (6F+1R), With overdrive gear BharatBenz 917 AC: Tourist 26 Seater comes with a gross weight capacity of 9600 kg and length of 9787 mm For the comfortable journeys, parabolic leaf springs, with telescopic shock absorbers in front and semi-elliptical leaf springs, with telescopic shock absorbers in rear does the duty in this BharatBenz bus Other BharatBenz 917 AC: Tourist 26 Seater bus specifications like chassis, tyre, body width, turning circle dia, engine cc are available here in the tables on this page.

Frequently Asked Questions on BharatBenz 917 AC: Tourist 26 Seater Bus

BharatBenz 917 AC: Tourist 26 Seater bus price starts from Rs 0. The 2023 price of BharatBenz 917 AC: Tourist 26 Seater bus can vary slightly from state to state and city to city.
The tyre size of BharatBenz 917 AC: Tourist 26 Seater bus is 235/75 R 17.5# Tubeless radial# 6+1 tyres
BharatBenz 917 AC: Tourist 26 Seater bus GVW is 9600 Kg
BharatBenz 917 AC: Tourist 26 Seater bus comes with Air brakes
BharatBenz 917 AC: Tourist 26 Seater bus comes with a standard warranty of 3 Years/3 Lakh Km
BharatBenz 917 AC: Tourist 26 Seater bus can be purchased in multiple seating options depending on requirement. The seating capacity of BharatBenz 917 AC: Tourist 26 Seater bus is 26+D seats
BharatBenz 917 AC: Tourist 26 Seater bus comes with 4 cylinder 4D34i CRDI# SCR Technology engine and the engine displacement is 3907 cc
In terms of performance, BharatBenz 917 AC: Tourist 26 Seater bus produces a maximum power of 170 HP@2500 rpm and a maximum torque of 520 Nm@1500 rpm
BharatBenz 917 AC: Tourist 26 Seater bus comes with a 6 speed manual (6F+1R)# With overdrive gear transmission
BharatBenz 917 AC: Tourist 26 Seater bus comes with Diesel fuel option and its fuel tank capacity is 160 Litres
The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of BharatBenz 917 AC: Tourist 26 Seater bus is expected to be around Rs Not Available for a 5 year period
