Commercial Vehicles in India

  • Tata LP 708

Quick Search

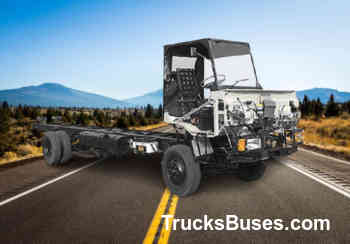

Overview of Tata LP 708

Overall Length 7745 mm
Engine
  • Tata 497SP
  • Turbocharged, Intercooled
Power (Max.) 75 HP@3050 rpm
Torque (Max.) 245 Nm@1400-1500 rpm
GVW 7000 Kg
Possible Number of seats
  • Staff: 32+D (2x2)
  • School: 36+D (3x2)
Suitable Applications School and staff
Warranty 3 Years / 3 Lakh Km on driveline
Service Interval
  • 20,000 Km (Short route)
  • 40,000 Km (Long route)

Engine & Performance of Tata LP 708

Engine
  • Tata 497SP
  • Turbocharged, Intercooled
Fuel Injection System Mechanical FIP
Engine Displacement 2956 cc
Engine Cylinders 4
Engine Location Front
Power (Max.) 75 HP@3050 rpm
Torque (Max.) 245 Nm@1400-1500 rpm
Clutch
  • 280 mm dia
  • Single plate dry type
Transmission 5 speed manual (5F+1R)
Gearbox GBS 27
Emission Norms Compliance BSIII
Fuel Type Diesel
Fuel Tank Capacity 90 Litres
Electricals/Battery
  • 12 Volts, 75 Ah
  • 65 Amps

Design & Configuration of Tata LP 708

GVW 7000 Kg
Overall Length 7745 mm
Max Width 2140 mm
Possible Number of seats
  • Staff: 32+D (2x2)
  • School: 36+D (3x2)
Vehicle Configuration Chassis without face-cowl
Axle Configuration 4X2
Rear Axle Single speed Hypoid gears
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Anti-Roll Bar Front and Rear
Tyres
  • 7.50x16 - 16PR
  • 6 tyre vehicle
Wheelbase 4200 mm
Turning Circle Diameter 14.6 m
Ground Clearance 210 mm
Front Overhang 1275 mm
Rear Overhang 2270 mm
Front Track 1650 mm
Rear Track 1587 mm

Features & Comfort in Tata LP 708

Steering Type Mechanical Steering
Steering Adjustment Rigid
Instrument cluster
  • Analog
  • With LED display
Automatic Transmission No

Safety in Tata LP 708

Service Brakes Hydraulic brakes
ABS Yes
Anti-Roll Bar Front and Rear
Tubeless Tyres No
Retarder No
