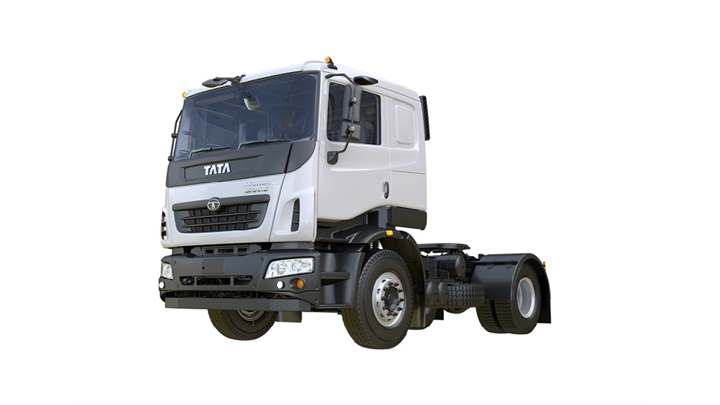

Tata Prima 4630.S Tractor Trailer Images Tata Prima 4630.S Tractor Trailer Images Tata Prima 4630.S Tractor Trailer Images Tata Prima 4630.S Tractor Trailer Images Tata Prima 4630.S Tractor Trailer Images
Tata Prima 4630.S Tractor Trailer Images
Tata Prima 4630.S Tractor Trailer Images
Tata Prima 4630.S Tractor Trailer Images
Tata Prima 4630.S Tractor Trailer Images
Tata Prima 4630.S Tractor Trailer Images

Tata Prima 4630.S Tractor Trailer Specifications

Rate This Vehicle
Check Discount Offer Check On Road Price
 Don't miss out on the best discount offers for this month

Key Details of Tata Prima 4630.S Tractor Trailer

Power
300
GVW
45500 Kg
Fuel
Diesel
Engine
6692 cc
Cylinders
6
Trucksbuses.com
Trucksbuses.com

Key Specifications of Tata Prima 4630.S Tractor Trailer

  • Engine
    Cummins ISBe 6.7L
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    6692 cc
  • Engine Cylinders
    6
  • Power
    300 HP@2300 rpm
  • Torque
    1100 Nm@1100-1700 rpm
  • Clutch
    430 mm dia
  • Transmission
    9 speed (9F+1R)
  • Gearbox
    G1150
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    365+200 Litres
    Polymer tank
    With anti-fuel theft
  • Gross Combination Weight
    45500 Kg
  • Cabin Type
    Sleeper cabin
  • Cabin Tilt mechanism
    Hydraulically tiltable
  • Chassis Frame
    Ladder type straight frame
  • Axle Configuration
    4x2
  • Front Axle
    Forged I Beam, Reverse Elliot Type
  • Rear Axle
    Single reduction RA 110LD
    RAR: 5.57
  • Front Suspension
    Parabolic leaf springs
  • Rear Suspension
    Semi elliptical leaf springs
  • Tyres
    295/90R20 (Tube)
    6+1 tyres
  • Chassis Depth
    285 mm
  • Chassis Flange width
    65 mm

Tata Prima 4630.S Tractor Trailer Specification Highlights

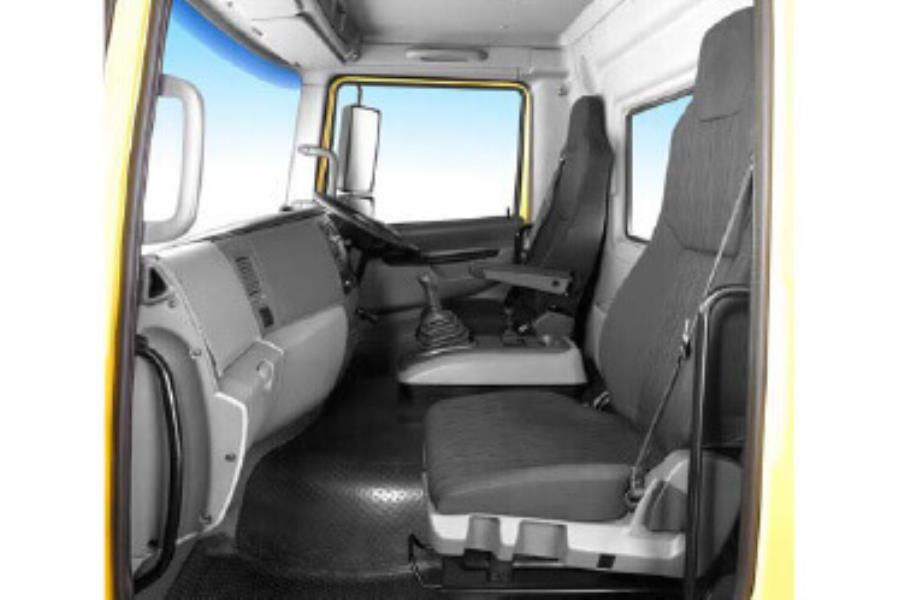

Check all the Tata Prima 4630.S specifications on TrucksBuses in this section The main driveline of Tata Prima 4630.S includes a 6 cylinder Cummins ISBe 6.7L engine that produces a maximum power of 300 HP and a torque of 1100 Nm It gets mated to 9 speed (9F+1R), G1150 gearbox A gross weight of 45500 kg coupled with suitable trailer, allows the owner to carry multiple kinds of goods as per requirementTata Prima 4630.S comes with a beautiful looking sleeper cabin with wide variety of utility features for driver comfort Other Tata Prima 4630.S specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available in the tables above.

Frequently Asked Questions on Tata Prima 4630.S Tractor Trailer

Tata Prima 4630.S comes with 6 cylinder Cummins ISBe 6.7L engine and the engine displacement is 6692 cc
In terms of performance, Tata Prima 4630.S produces a maximum power of 300 HP@2300 rpm and a maximum torque of 1100 Nm@1100-1700 rpm
Tata Prima 4630.S comes with a 9 speed (9F+1R) transmission along with a 430 mm dia clutch
Tata Prima 4630.S comes with Diesel fuel option and its fuel tank capacity is 365+200 Litres# Polymer tank# With anti-fuel theft
The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata Prima 4630.S is expected to be around Rs Not Available for a 5 year period
The tyre size of Tata Prima 4630.S is 295/90R20 (Tube)# 6+1 tyres
Tata Prima 4630.S comes with Air brakes
Tata Prima 4630.S tipper comes with a standard warranty of 6 Years / 6 Lakh km on driveline# 3 Years / 3 Lakh km on vehicle
