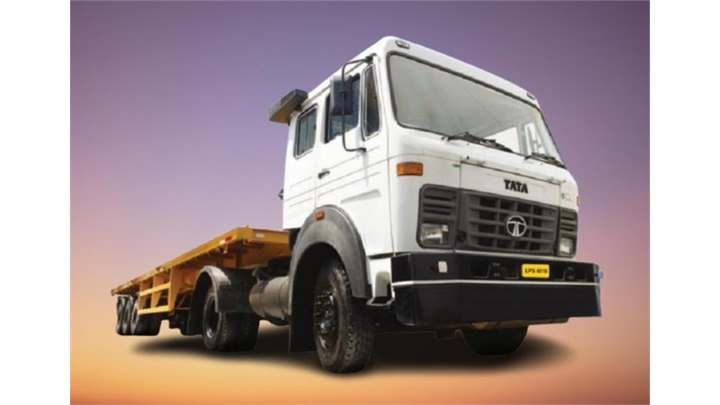

Overview of Tata LPS 4018 BSIV

Gross Combination Weight (GCW) 40200 Kg
Axle Configuration 4x2
Engine
  • Cummins ISBe 5.9 CRDi
  • SCR Technology
Power (Max.) 180 HP@2500 rpm
Torque (Max.) 700 Nm@1500 rpm
Transmission 6 speed manual (6F+ 1R)
Warranty
  • 6 Years / 6 Lakh Km on driveline
  • 3 Years / 3 Lakh Km on vehicle
Service Interval 80,000 Km (Oil change)
Additional
  • 2 Multi Drive Modes:
  • Heavy
  • Light

Engine & Performance of Tata LPS 4018 BSIV

Engine
  • Cummins ISBe 5.9 CRDi
  • SCR Technology
Fuel Injection System Common Rail
Engine Displacement 5883 cc
Engine Cylinders 6
Power (Max.) 180 HP@2500 rpm
Torque (Max.) 700 Nm@1500 rpm
Clutch
  • Single dry plate, 380 mm dia
  • With clutch booster
Transmission 6 speed manual (6F+ 1R)
Gearbox
  • G750
  • 6F-Synchromesh
  • 1R- Constant mesh
Gradeability 18%
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 400 Litres
Electricals / Battery
  • 2x12V, 100 Ah
  • Alternator: 45 Amps

Design & Configuration of Tata LPS 4018 BSIV

Gross Combination Weight (GCW) 40200 Kg
Kerb Weight 5970 Kg
Cabin Type Sleeper cabin
Cabin Tilt mechanism NA
Chassis Frame Ladder type with cross members
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle
  • RA - 110 LD
  • RAR-6.83
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension Semi-elliptical leaf springs
Anti-Roll Bar Front only
Tyres 10R20-16PR
Wheelbase 3200 mm
Turning Circle Diameter 12.3 m
Ground Clearance 250 mm
Overall Length 5593 mm
Overall Width 2550 mm
Overall Height 2943 mm
Front Overhang 1338 mm
Front Track 1964 mm
Rear Track 1817 mm
Chassis Depth 285 mm
Chassis Flange width 65 mm
Chassis Thickness 7 mm

Features & Comfort in Tata LPS 4018 BSIV

Cabin Suspension Semi suspended
Steering Type Power Steering
Steering Adjustment Rigid
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) No
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Telematics / GPS Tracking
  • Telematics unit (Optional)
  • Service activation (Optional)
Power Windows No
Music System No
Automatic Transmission No
Cruise Control No

Safety in Tata LPS 4018 BSIV

Service Brakes Air Brakes, dual line
Exhaust Brake Yes
ABS Yes
Anti-Roll Bar Front only
Differential Lock No
Seat Belts Yes
Fog Light No
Tubeless Tyres No
