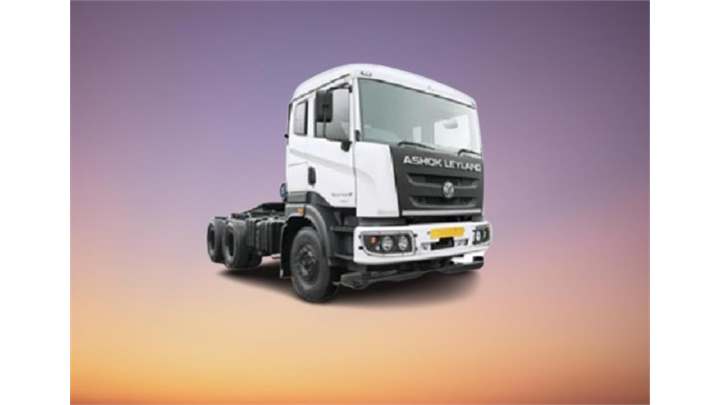

Overview of Ashok Leyland Captain 4923 BSIV

Gross Combination Weight (GCW) 49000 Kg
Axle Configuration 6x4
Engine
  • N Series CRS
  • iEGR Technology
Power (Max.) 230 HP@2000-2200 rpm
Torque (Max.) 800 Nm@1200-2000 rpm
Transmission 9 speed manual (8F+1CR+1R)
Warranty 4 Years / 4 Lakh Km
Service Interval 80,000 Km (Oil change)

Engine & Performance of Ashok Leyland Captain 4923 BSIV

Engine
  • N Series CRS
  • iEGR Technology
Fuel Injection System Common Rail
Power (Max.) 230 HP@2000-2200 rpm
Torque (Max.) 800 Nm@1200-2000 rpm
Clutch
  • Single plate, 380 mm dia
  • With clutch booster
Transmission 9 speed manual (8F+1CR+1R)
Gearbox ZF 9S1110
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 400 Litres
Electricals / Battery 2X12V

Design & Configuration of Ashok Leyland Captain 4923 BSIV

Gross Combination Weight (GCW) 49000 Kg
Cabin Type Sleeper cabin with 4 point suspension
Cabin Tilt mechanism Tiltable Cabin
Chassis Frame Ladder type joggled bolted with cross members
Axle Configuration 6x4
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle
  • Single-speed hypoid gear Axle
  • RAR 6.17:1
Front Suspension Parabolic leaf springs
Rear Suspension Semi-elliptical leaf springs
Tyres
  • 10 R 20-16 PR
  • Radial tyres
Wheelbase 3900 mm
Turning Circle Diameter 15.5 m
Ground Clearance 260 mm
Front Overhang 1470 mm
Rear Overhang 1450 mm
Front Track 2044 mm
Rear Track 1870 mm
Chassis Depth 279 mm
Chassis Flange width 90 mm
Chassis Thickness 8 mm

Features & Comfort in Ashok Leyland Captain 4923 BSIV

Cabin Suspension Fully suspended
Steering Type Power Steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 6 way adjustable
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass No
Instrument Cluster
  • Digital
  • With distance to empty indicator
Telematics / GPS Tracking Yes
Power Windows No
Music System Yes
Mobile Charging Point Yes
Bottle Holder Yes
Automatic Transmission No
Cruise Control No

Safety in Ashok Leyland Captain 4923 BSIV

Service Brakes Air Brakes, dual line
Parking Brakes
  • Flick valve operated pneumatic
  • Acting on rear wheels
ABS Yes
Anti-Roll Bar Front only
Differential Lock No
Seat Belts Yes
Fog Light Yes
Tubeless Tyres No
