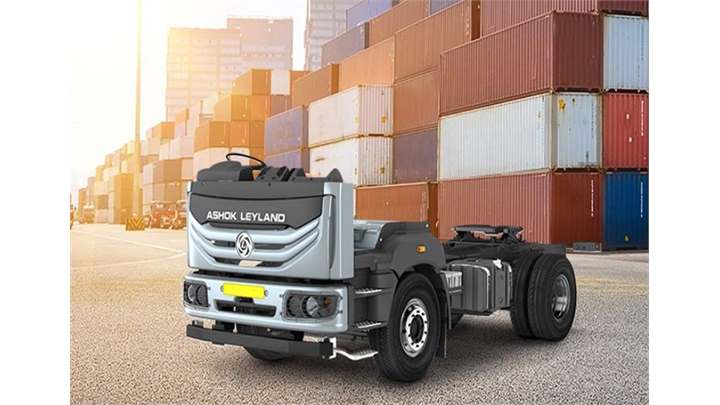

Ashok Leyland 4020 AG Tractor Trailer Specifications

Be the first one to rate Rate Now
PowerPower198
GVWGVW39500 Kg
EngineEngine5660 cc
FuelFuelDiesel
MileageMileage3.5-4.5 KMPL*

*Ex - showroom Price of Ashok Leyland 4020 AG Tractor Trailer is 39.30-48.30 Lakh*

From ₹ 39.30-48.30 Lakh*

*Ex-showroom price in India

Ex-showroom price is indicative. On-road price varies by city, RTO, insurance and dealer offers.

Get Best Price Check August Offers

Free quotes from verified dealers. No obligation. Reply usually in minutes.

Trucksbuses.com
Trucksbuses.com

Key Specifications of Ashok Leyland 4020 AG Tractor Trailer

Engine and configuration details for this model.

  • Engine
    H series CRS
    iGen6 technology
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    5660 cc
  • Engine Cylinders
    6
  • Power
    198 HP@2400 rpm
  • Torque
    700 Nm@1200-1900 rpm
  • Clutch
    380 mm dia
    Air assisted hydraulic booster
  • Transmission
    6 speed (6F+1R)
  • Gearbox
    Synchromesh
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 375 Litres
    Polymer tank
  • Electricals Battery
    24V, 120 Ah / 150 Ah (AC)

Ashok Leyland 4020 AG Tractor Trailer Specification Highlights

This 6-wheeler Ashok Leyland 4020 AG tractor trailer comes with efficient engine performance. This brand new Ashok Leyland 4020 AG H series tractor trailer is coupled with a powerful 6-cylinder H series i-gen6 technology engine. This Ashok Leyland truck produces a power of 198 horsepower and a high-end torque of 700 Nm. The 6 chakka Ashok Leyland 4020 AG H series tractor trailer has 6-speed manual transmission with synchromesh gearbox. The latest Ashok Leyland 4020 AG H series comes under BS6 emission norms as it runs on diesel fuel with a fuel tank capacity of 375 liters with a polymer tank. This 6-wheeler Ashok Leyland 4020 AG H series has a clutch specification of 380 mm dia with air assisted hydraulic booster. It has a front axle of forger, section reverse elliot type and a rear axle of fully floating single speed. Its front suspension is parabolic springs with optional semi-elliptic multi-leaf. The rear suspension of the Ashok Leyland 4020 AG H series tractor trailer is a semi-elliptic multi-leaf with parabolic helper springs. It comes with a tyre size 295/90R20. A few other configurational specs of this Ashok Leyland 4020 AG H series tractor trailer are described above in the table.

Should you buy Ashok Leyland 4020 AG Tractor Trailer?

A quick buyer guide based on listed specs, price band and typical duty cycles.

Pros

  • Gross vehicle weight rated at 39500 Kg for clear load planning.
  • Rated power of 198 for highway and loaded duty.
  • Diesel fuel option suited to common fleet fueling networks.
  • Engine configuration: 5660 cc.
  • Published mileage guidance: 3.5-4.5 KMPL* (route-dependent).
  • Ex-showroom price band listed as 39.30-48.30 Lakh* (city offers may vary).

Things to check

  • Final on-road price varies by city, insurance, RTO and dealer offers.

Best for

  • Operators who need a trucks around 39500 Kg GVW
  • Cargo, tipper or haulage duty matching the listed GVW and power

Frequently Asked Questions on Ashok Leyland 4020 AG Tractor Trailer

Find quick answers about price, specifications, loading capacity, and more.

The tyre size of Ashok Leyland 4020 AG is 295/90R20
Ashok Leyland 4020 AG comes with Full air dual line brakes with ABS
In terms of performance, Ashok Leyland 4020 AG produces a maximum power of 198 HP@2400 rpm and a maximum torque of 700 Nm@1200-1900 rpm
Ashok Leyland 4020 AG comes with 6 cylinder H series CRS# iGen6 technology engine and the engine displacement is 5660 cc
Ashok Leyland 4020 AG comes with a 6 speed (6F+1R) transmission along with a 380 mm dia# Air assisted hydraulic booster clutch
Ashok Leyland 4020 AG comes with Diesel fuel option and its fuel tank capacity is Diesel: 375 Litres# Polymer tank
The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Ashok Leyland 4020 AG is expected to be around Rs Not Available for a 5 year period
