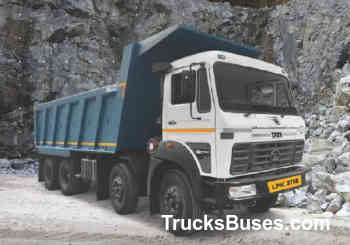

Overview of Tata LPK 3118 - 9S

GVW 31000 Kg
Axle Configuration 8x4
Engine
  • Cummins ISBe 5.9 CRDi
  • SCR Technology
Power (Max.) 180 HP@2500 rpm
Torque (Max.) 700 Nm@1500 rpm
Transmission 9 speed manual (8F+1CR+1R)
Vehicle Configuration
  • Cabin and chassis
  • Cabin with Box body
Load Body Options 18 Cu.M Box body
Warranty
  • 6 Years / 6000 Hrs on driveline
  • 3 Years / 3000 Hrs on vehicle
Service Interval 1000 Hrs
Additional Multi Drive Mode: Heavy, Light

Engine & Performance of Tata LPK 3118 - 9S

Engine
  • Cummins ISBe 5.9 CRDi
  • SCR Technology
Fuel Injection System Common Rail
Engine Displacement 5883 cc
Engine Cylinders 6
Power (Max.) 180 HP@2500 rpm
Torque (Max.) 700 Nm@1500 rpm
Clutch Single dry plate, 380 mm dia
Transmission 9 speed manual (8F+1CR+1R)
Gearbox Tata G 1150 - DD
Gradeability
  • Crawler gear: 33%
  • First gear: 23%
Max Speed 70 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity
  • Diesel: 300 Litres
  • Ad-blue: 35 Litres
Electricals / Battery
  • 24V, 120 Ah
  • Alternator - 45 Amps

Design & Configuration of Tata LPK 3118 - 9S

GVW 31000 Kg
Vehicle Configuration
  • Cabin and chassis
  • Cabin with Box body
Load Body Options 18 Cu.M Box body
Cabin Type Day Cab
Cabin Tilt mechanism NA
Chassis Frame Ladder type with cross members
Axle Configuration 8x4
Front Axle
  • Forged I Beam, Reverse Elliot Type
  • Twin steerable axles
Rear Axle
  • Hypoid gears, fully floating axle
  • RA - 109 SRT
  • RAR: 6.42
Front Suspension Parabolic leaf springs
Rear Suspension Semi-elliptical leaf springs
Anti-Roll Bar Front only
Tyres
  • 10x20 - 16 PR
  • Crossply, Non-mining
Wheelbase 5580 mm
Turning Circle Diameter 19.6 m
Ground Clearance 240 mm
Overall Length 8903 mm
Overall Width 2540 mm
Overall Height 3332 mm
Front Overhang 1340 mm
Rear Overhang 1190 mm
Chassis Depth 285 mm
Chassis Flange width 65 mm
Chassis Thickness 7 mm

Features & Comfort in Tata LPK 3118 - 9S

Cabin Suspension Fully suspended
Steering Type Power steering
Steering Adjustment No
Driver Seat Type 6 way adjustable
Arm Rest No
Air Conditioner (A/C) Optional
Openable Quarter Ventilation Glass Yes
Instrument Cluster Digital
Telematics / GPS Tracking Yes
Power Windows No
Music System No
Automatic Transmission No
Cruise Control No

Safety in Tata LPK 3118 - 9S

Service Brakes
  • Air Brakes
  • With automatic adjuster
Parking Brakes Spring actuated
Exhaust Brake Yes
ABS Yes
Anti-Roll Bar Front only
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light No
Tubeless Tyres No
