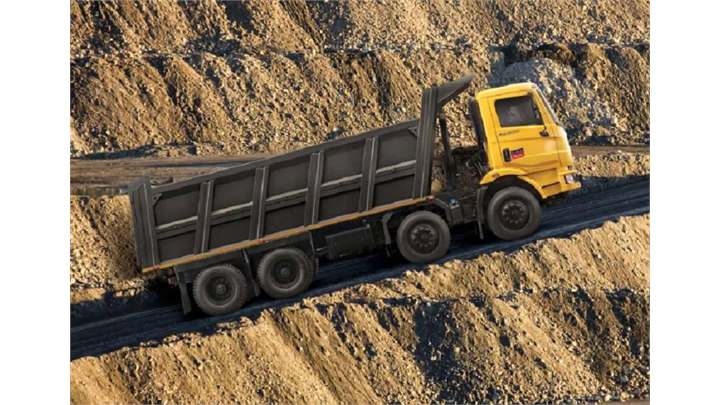

Overview of Mahindra Blazo 31 Tipper

GVW 31000 Kg
Axle Configuration 8x4
Engine mPOWER 7.2 ltr FuelSmart
Power (Max.) 274 HP@2200 rpm
Torque (Max.) 950 Nm@1100-1700 rpm
Transmission
  • 9 speed manual (8F+1CR+1R)
  • 6 speed manual (optional)
Vehicle Configuration Cabin with Box body
Load Body Options 18 Cu.M Box body

Engine & Performance of Mahindra Blazo 31 Tipper

Engine mPOWER 7.2 ltr FuelSmart
Fuel Injection System Common Rail
Engine Displacement 7200 cc
Engine Cylinders 6
Power (Max.) 274 HP@2200 rpm
Torque (Max.) 950 Nm@1100-1700 rpm
Clutch Single dry plate, 395 mm dia
Transmission
  • 9 speed manual (8F+1CR+1R)
  • 6 speed manual (optional)
Gearbox Eaton 9 speed, Synchromesh
Gradeability 24.1%
Max Speed 60 Kmph
Emission Norms Compliance BSIII
Fuel Type Diesel
Fuel Tank Capacity 250 Litres
Electricals / Battery 2x12V

Design & Configuration of Mahindra Blazo 31 Tipper

GVW 31000 Kg
Vehicle Configuration Cabin with Box body
Load Body Options 18 Cu.M Box body
Cabin Type Day Cab
Cabin Tilt mechanism Maunally operated Hydraulic assisted
Chassis Frame Ladder type
Axle Configuration 8x4
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle
  • Single reduction, Fully floating, Banjo Type
  • RAR: 5.29 (9S)
  • RAR: 5.83 (6S optional)
Front Suspension
  • Parabolic leaf springs
  • With telescopic shock absorbers
Rear Suspension Semi-elliptical leaf springs
Tyres
  • 10x20-16 PR
  • Crossply
Wheelbase 5300 mm
Turning Circle Diameter 19 m
Ground Clearance 250 mm
Overall Length 8796 mm
Overall Width 2595 mm
Overall Height 3403 mm
Chassis Depth 285 mm
Chassis Flange width 70 mm
Chassis Thickness
  • 8.5 mm
  • With 5 mm reinforcement

Features & Comfort in Mahindra Blazo 31 Tipper

Cabin Suspension Fully Suspended
Steering Type Power steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 6 way adjustable
Power Windows No
Automatic Transmission No
Cruise Control No

Safety in Mahindra Blazo 31 Tipper

Service Brakes Air Brakes
ABS Yes
Differential Lock No
Seat Belts Yes
Fog Light No
Tubeless Tyres No
