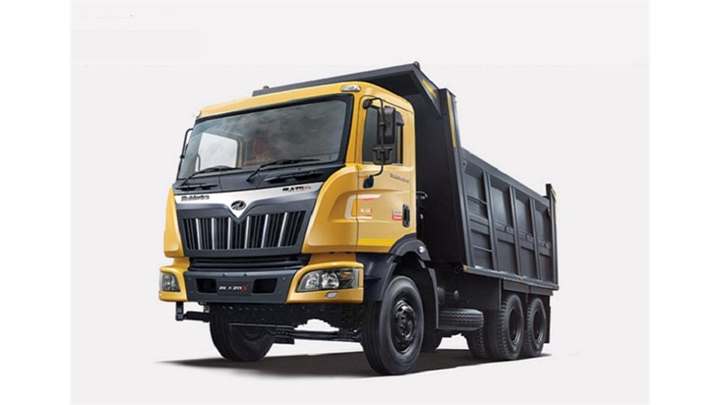

Overview of Mahindra Blazo X 25 Tipper

GVW 25000 Kg
Axle Configuration 6x4
Engine mPOWER 7.2 ltr FuelSmart
Power (Max.) 274 HP@2200 rpm
Torque (Max.) 950 Nm@1100-1700 rpm
Transmission 9 speed manual (9F+1R)
Vehicle Configuration
  • Cabin with Box body
  • Cabin with Rock body
Load Body Options
  • 14/16/20 Cu.M Box body
  • 14/16 Cu.M Rock body

Engine & Performance of Mahindra Blazo X 25 Tipper

Engine mPOWER 7.2 ltr FuelSmart
Fuel Injection System Common Rail
Engine Displacement 7200 cc
Engine Cylinders 6
Power (Max.) 274 HP@2200 rpm
Torque (Max.) 950 Nm@1100-1700 rpm
Clutch Single dry plate, 395 mm dia
Transmission 9 speed manual (9F+1R)
Gearbox Eaton 9 speed
Gradeability 44%
Max Speed 60 Kmph
Emission Norms Compliance
  • BSIII
  • BSIV
Fuel Type Diesel
Fuel Tank Capacity 250 Litres
Electricals / Battery 2x12V

Design & Configuration of Mahindra Blazo X 25 Tipper

GVW 25000 Kg
Vehicle Configuration
  • Cabin with Box body
  • Cabin with Rock body
Load Body Options
  • 14/16/20 Cu.M Box body
  • 14/16 Cu.M Rock body
Cabin Type Day Cab
Cabin Tilt mechanism Maunally operated Hydraulic assisted
Chassis Frame Ladder type
Axle Configuration 6x4
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle
  • Single reduction, Tandem Axle
  • RAR: 4.89
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension Inverted leaf bogie suspension
Tyres
  • 11x20-16 PR
  • Crossply
Wheelbase 4250 mm
Ground Clearance 250 mm
Chassis Depth 285 mm
Chassis Flange width 70 mm
Chassis Thickness
  • 8.5 mm
  • With 5 mm reinforcement

Features & Comfort in Mahindra Blazo X 25 Tipper

Cabin Suspension Fully Suspended
Steering Type Power steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 6 way adjustable
Openable Quarter Ventilation Glass No
Instrument Cluster Digital
Power Windows No
Automatic Transmission No
Cruise Control No

Safety in Mahindra Blazo X 25 Tipper

Service Brakes Air Brakes
ABS Yes
Differential Lock No
Seat Belts Yes
Fog Light No
Tubeless Tyres No
