Commercial Vehicles in India

  • Eicher Pro 5016T

Quick Search

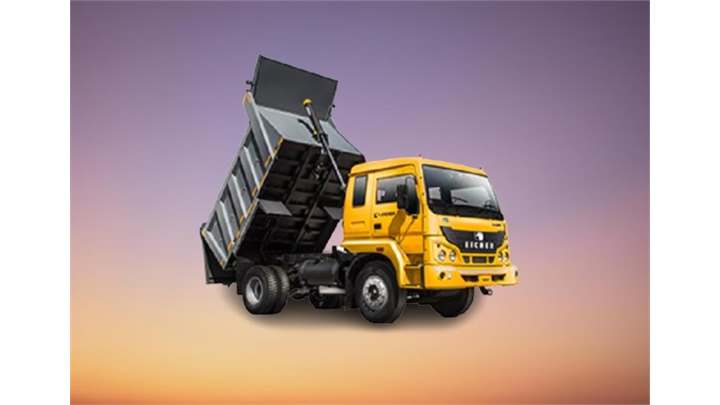

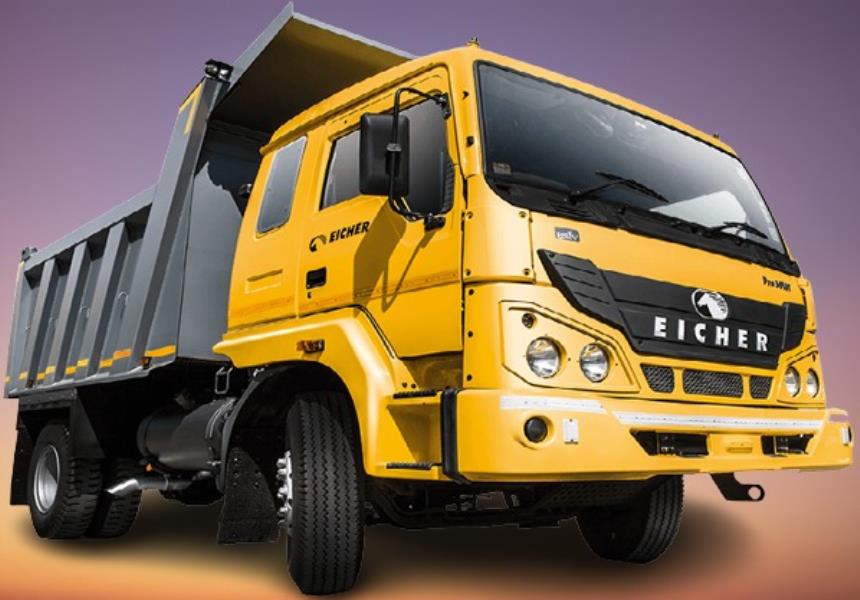

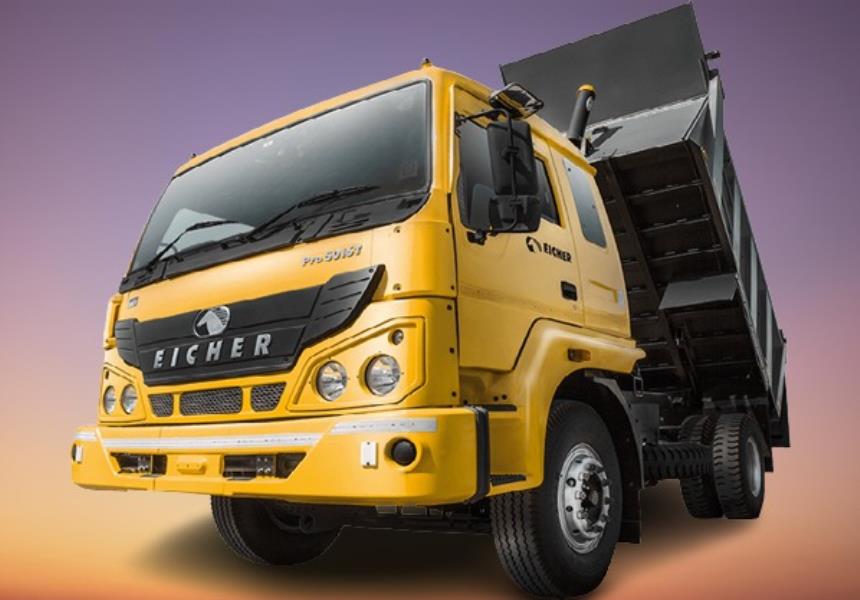

Overview of Eicher Pro 5016T

GVW 16200 Kg
Axle Configuration 4x2
Engine
  • E694 CRS
  • i3 EGR Technology
Power (Max.) 170 HP@2400 rpm
Torque (Max.) 620 Nm@1200-1900 rpm
Transmission 6 speed manual (6F+1R)
Vehicle Configuration
  • Cabin and chassis
  • Cabin with Box body
  • Cowl and chassis
Load Body Options
  • 8.5 Cu.M Box body
  • 10 Cu.M
Warranty
  • 1.5 Years / 2000 Hrs / 1.5 Lakh Km on driveline
  • 1.5 Years / 2000 Hrs / 1.5 Lakh Km on vehicle
Service Interval 500 Hrs
Additional Fuel coaching

Engine & Performance of Eicher Pro 5016T

Engine
  • E694 CRS
  • i3 EGR Technology
Fuel Injection System Common Rail
Engine Displacement 5700 cc
Engine Cylinders 6
Power (Max.) 170 HP@2400 rpm
Torque (Max.) 620 Nm@1200-1900 rpm
Clutch
  • 352 mm dia
  • With clutch booster
Transmission 6 speed manual (6F+1R)
Gearbox ET 70 S6
Gradeability 35%
Max Speed 60 Kmph
Emission Norms Compliance BSIV
Fuel Type Diesel
Fuel Tank Capacity 220 Litres
Electricals / Battery 24V

Design & Configuration of Eicher Pro 5016T

GVW 16200 Kg
Vehicle Configuration
  • Cabin and chassis
  • Cabin with Box body
  • Cowl and chassis
Load Body Options
  • 8.5 Cu.M Box body
  • 10 Cu.M
Cabin Type Sleeper cabin
Cabin Tilt mechanism Tiltable cabin
Chassis Frame C Channel ladder type
Axle Configuration 4x2
Front Axle Forged I Beam, Reverse Elliot Type
Rear Axle Fully floating
Front Suspension
  • Semi-elliptical leaf springs
  • With telescopic shock absorbers
Rear Suspension Semi-elliptical leaf springs
Tyres 10R20 - 16 PR
Wheelbase 3485 mm
Turning Circle Diameter 14.03 m
Ground Clearance 252 mm
Overall Length 6225 mm
Overall Width 2460 mm
Overall Height 3180 mm
Chassis Depth 230 mm
Chassis Flange width 76 mm
Chassis Thickness 6 mm

Features & Comfort in Eicher Pro 5016T

Cabin Suspension Semi suspended
Steering Type Power steering
Steering Adjustment Tilt and telescopic
Driver Seat Type 4 way adjustable
Arm Rest No
Air Conditioner (A/C) No
Openable Quarter Ventilation Glass No
Telematics / GPS Tracking No
Power Windows No
Music System No
Mobile Charging Point Yes
Bottle Holder No
Automatic Transmission No
Cruise Control Yes

Safety in Eicher Pro 5016T

Service Brakes Air Brakes
Parking Brakes
  • Full air hand operated brakes
  • Acting at rear wheels
Exhaust Brake Yes
ABS Yes
Differential Lock No
Seat Belts Yes
Reverse Parking Buzzer Yes
Fog Light No
Tubeless Tyres No
